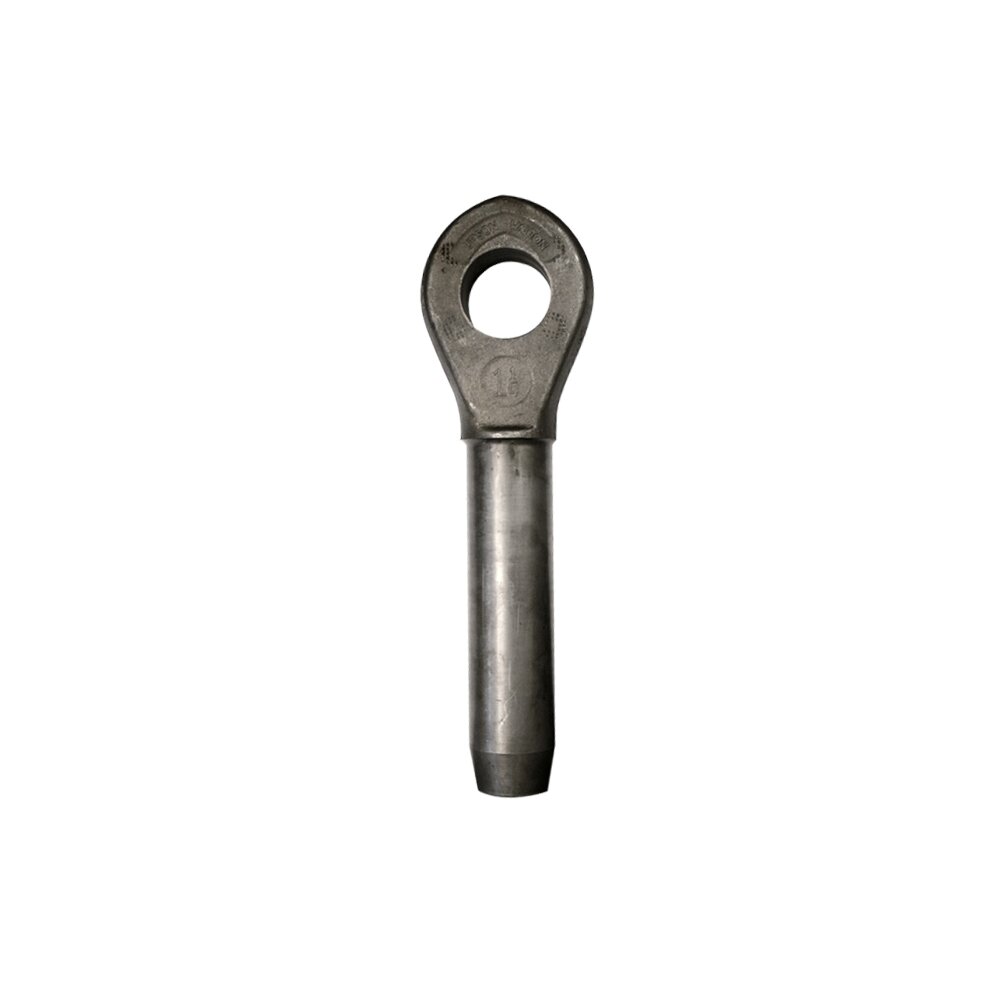

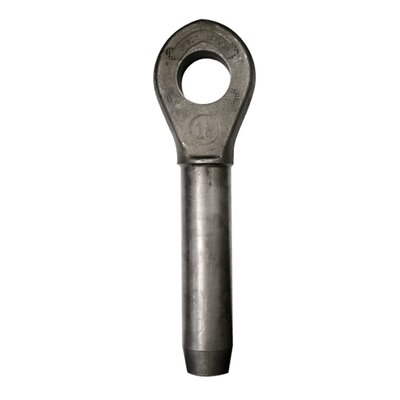

Closed Swage Terminal Talurit® STTE

The STTE swage terminals are validated according to the TALURIT® system for mechanical splicing. Swage terminals are made from special high-quality carbon steel. Controlled mechanical properties by our special treatment for cold swaging.

The STTE swage terminals have an efficiency rating of more

Show more

Log in to webshop
Product number:

The STTE swage terminals are validated according to the TALURIT® system for mechanical splicing. Swage terminals are made from special high-quality carbon steel. Controlled mechanical properties by our special treatment for cold swaging.

The STTE swage terminals have an efficiency rating of more than the required 90% of MBL according to the type testing requirement of the EN 13411-8 standard, which includes fatigue testing. In many cases and by ordinary break tests it is common to reach 100% based on the catalog strength of the wire rope.

APPLICATIONS
Swage terminals or sockets have a wide range of applications from stay wires in bridges to crane ropes and pendant lines. As per the TALURIT system validation, we can offer a range that is suitable for many types of special wire ropes with high tensile grades.

  • Features: STTE is approved for up to 2160 tensile grade wire ropes.
  • Material: TALURIT-Steel, fine grain. Special treatment for cold swaging.
  • Marking: According to standard
  • Temperature range: -40°C – 150°C
  • Finish: Ungalvanised.
  • Standard: EN 13411-8

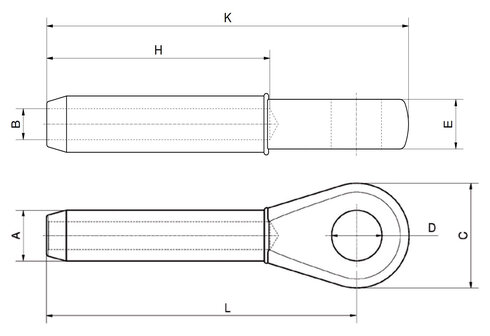

  • Note: See the manufacturer's product data sheet in the tab "Document" for guidance on dimension selection.
  • Warning: Swage terminals are not recommended for use on fiber core rope.
