Blue Wave
  • Not for lifting

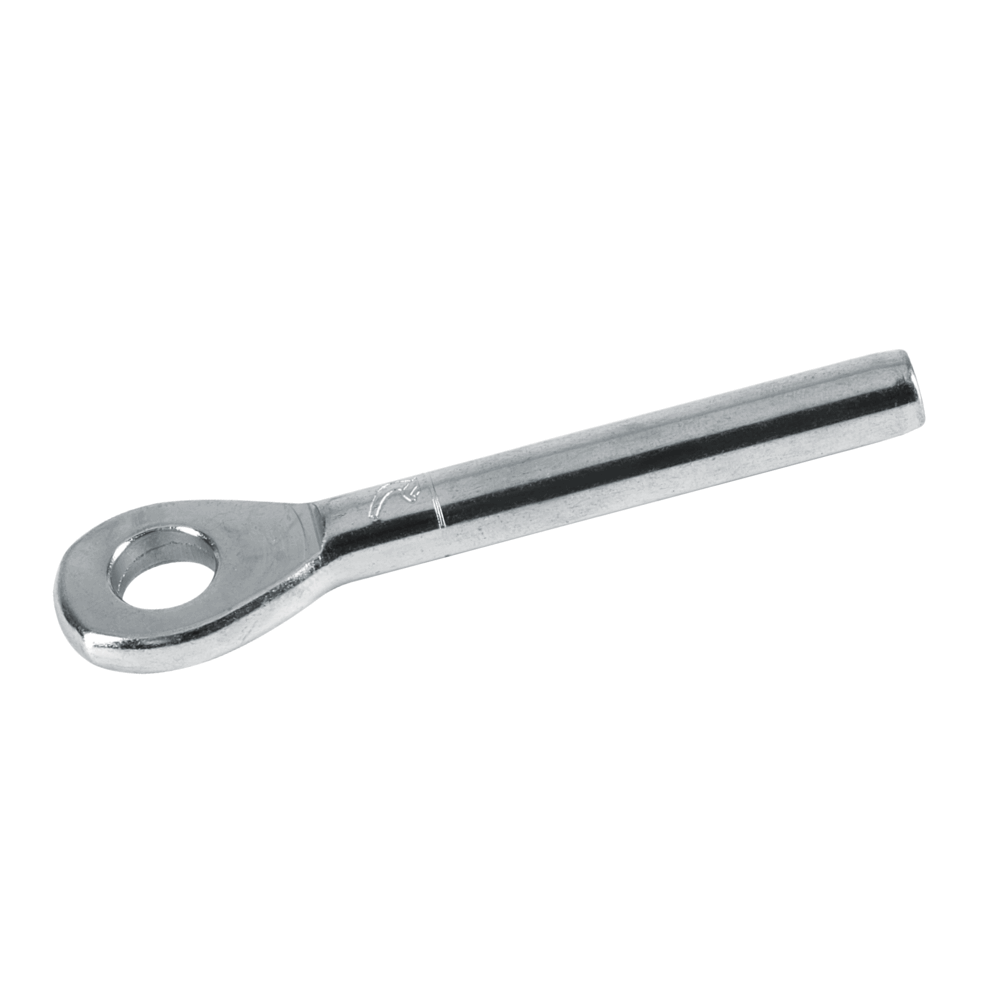

Eye terminals for pressing or swaging onto stainless steel wire rope. They are mainly used as an attachment to rigging screws or forks.

  • Material: Stainless steel AISI 316.
  • Marking: logo, wire size and swage depth.
  • Temperature range: -50°C to +100°C and briefly up to +200°C
  • Finish: High polished.

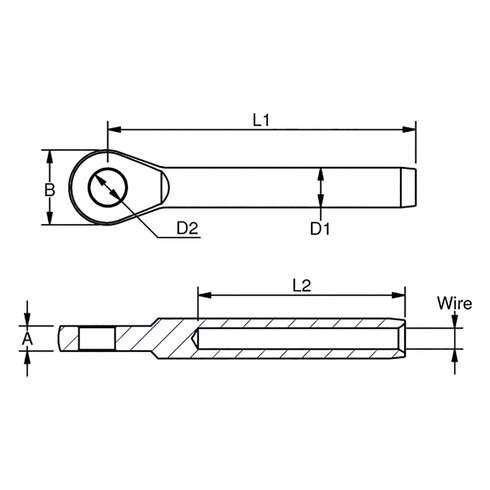

Stainless eye terminal_dwg
Select a row from the table below, then click the add to quote button
Part Code Rope diameter
mm
MBL
ton
A
mm
B
mm
D1
mm
D2
mm
L1
mm
L2
mm
Weight
kg/100pc
10.07190025 2,5 1 3 12 5,5 5,5 44 27 0,8
10.07190002 2 1,2 3 12 5,5 5,5 41 24 0,9
10.07190003 3 1,3 4 14 6,35 6,5 60 38 1,3
10.07190004 4 1,7 5 17 7,5 8,5 67 45 2,3
10.07190005 5 2,4 6 21 9,0 10,5 79 51 3,9
10.07190006 6 5,5 8 25 12,58 13,0 94 64 8,7
10.07190007 7 6,8 9 27 14,2 13,0 104 70 11,5
10.07190008 8 8 10 30 16,0 14,5 124 83 17
10.07190010 10 9,7 11 35 17,8 16,3 137 89 25
10.07190012 12 11,4 15 40 20,0 19,3 156 105 41,5
10.07190014 14 15,9 18 47 25,0 23,0 206 140 75,6
Note: Difference in the outer diameter (D1) for steel wire rope 12 mm.
