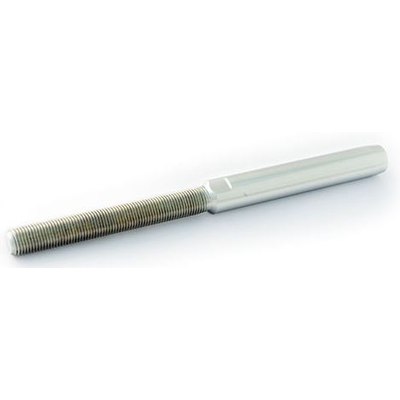

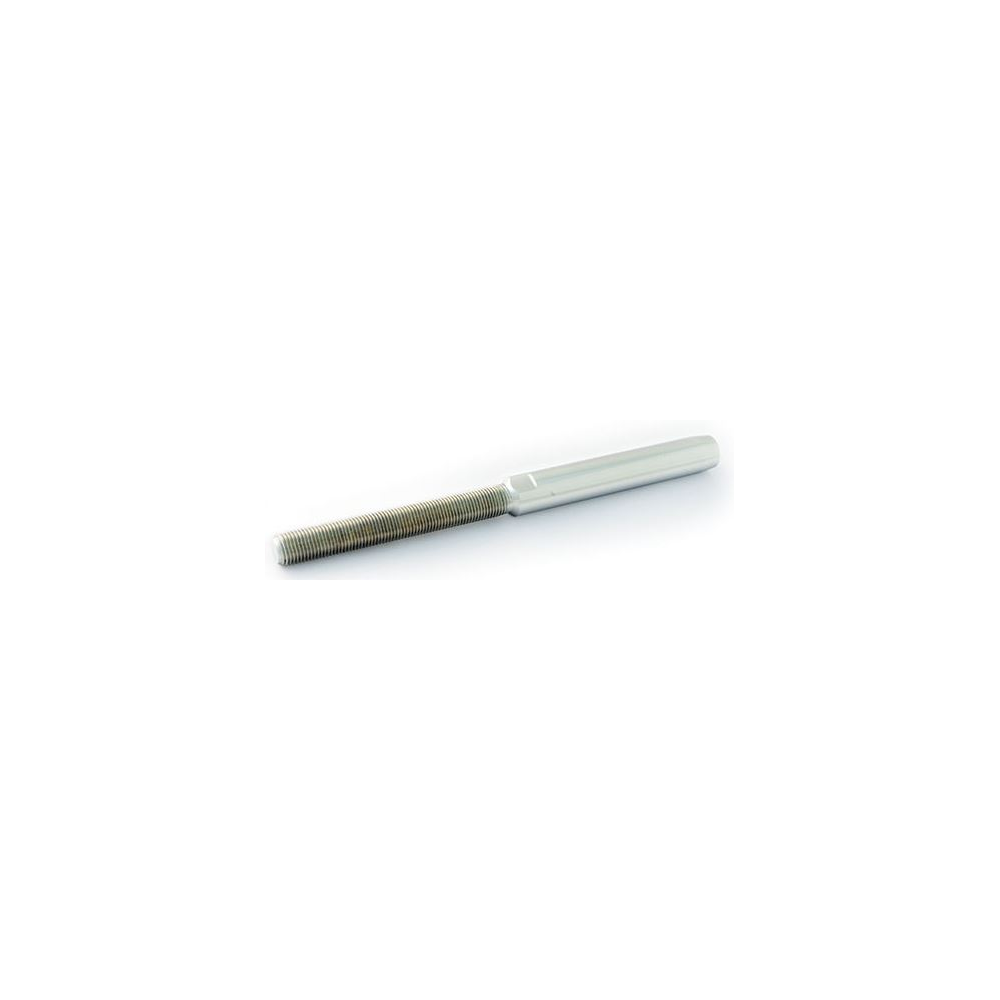

Stainless Steel Swage Studs with Metric threads

Petersen Stainless Rigging
  • Stainless steel

Product features

  • Approved suitable for lifting.
  • Available for stainless steel wire rope diameters from 3 mm up to 26 mm.
  • Also available with UNF threads.
  • Other sizes, custom lengths or threads on request.

Quality features

  • Validated for construction 6x19-WSC and 6x36-IWRC in grade 1570 N/mm2
  • Terminal efficiency of 90% in accordance with EN 13411-8
  • Fatigue rated in accordance with EN 13411-8
  • Material and conformity certificates available on request

Typical applications
General lifting, including for off-shore applications. General lifting and tethering in leisure marine applications - not submerged.

  • Material: Manufactured from 316L stainless steel
  • Marking: According to standard
  • Standard: EN 13411-8

Filters

Show more filters

Select the variant of your choice. Add it in the cart for purchase or request quotation.
