  • Not for lifting

Fork terminals are amongst the most commonly used wire end fittings, they are normally attached to pre drilled anchor plates or steel constructions. Also used in combination with toggles, eyes or U-bolts.

  • Material: Stainless steel AISI 316.
  • Marking: logo, wire size and swage depth.
  • Temperature range: -50°C to +100°C and briefly up to +200°C
  • Finish: Polished.

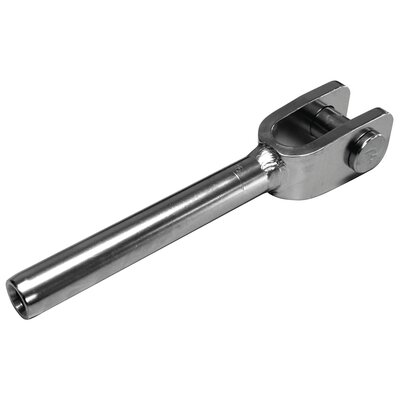

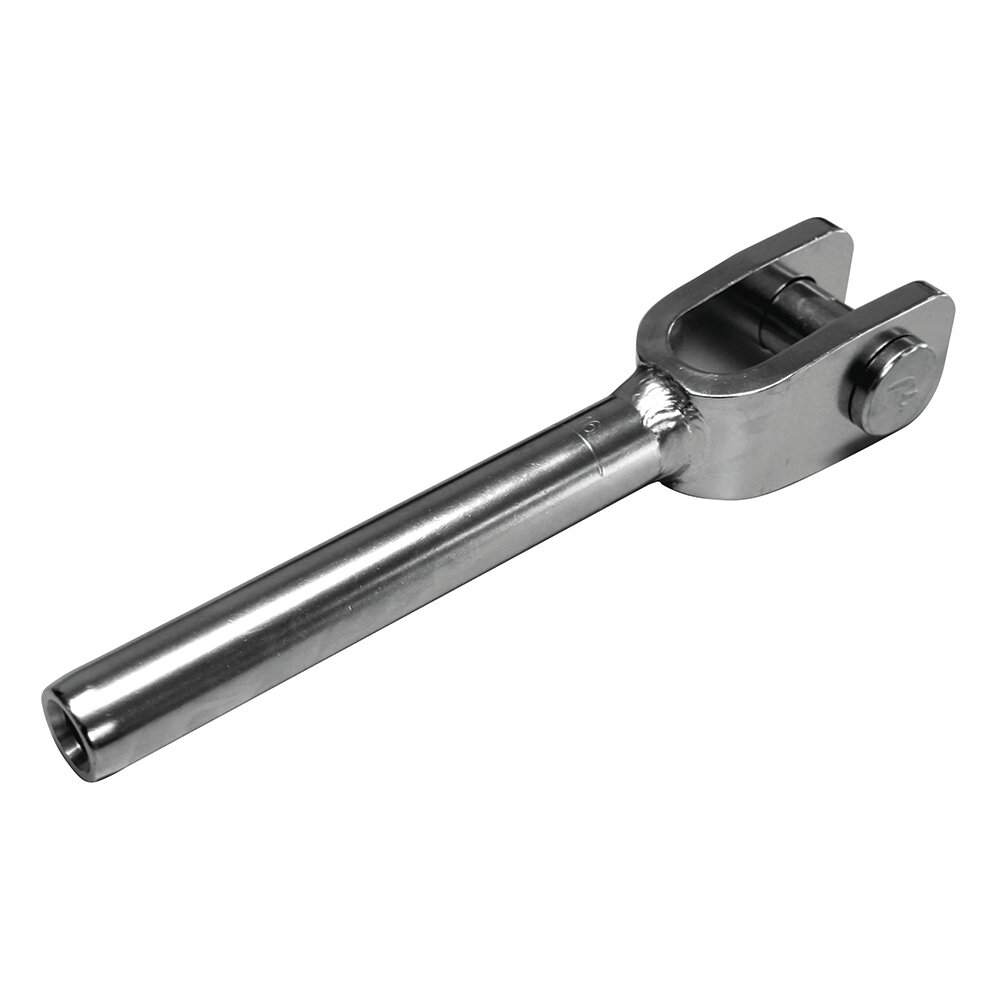

Stainless fork terminal pic

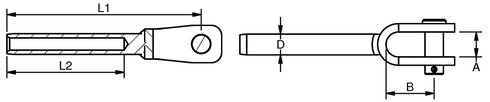

Stainless fork terminal_dwg
Select a row from the table below, then click the add to quote button
Part Code Rope diameter
mm
Pin diameter
mm
MBL
ton
A
mm
B
mm
D
mm
L1
mm
L2
mm
Weight
kg/100pc
10.07100502 2 5 0,8 7,5 12 5,5 58 32 2
10.07100503 3 5 0,8 7,5 12 6,4 67 38 2,3
10.07100604 4 6 1,5 9,5 13 7,5 73 45 3,4
10.07100805 5 8 2,4 11 15 9,0 87 51 5,5
10.07109506 6 9,5 3,8 12 19 12,6 104 64 11,3
10.07101207 7 12 6,5 14 25 14,2 119 70 18,1
10.07101608 8 16 8,5 17 33 16,0 145 83 25,5
10.07101610 10 16 9,4 17 33 17,8 149 89 36,6
10.07101912 12 19 11,2 24 48 20,0 189 105 66
10.07102214 14 22 15 30 57 25,0, 232 140 112,7
Note: Difference in the outer diameter (D) for steel wire rope 12 mm.
