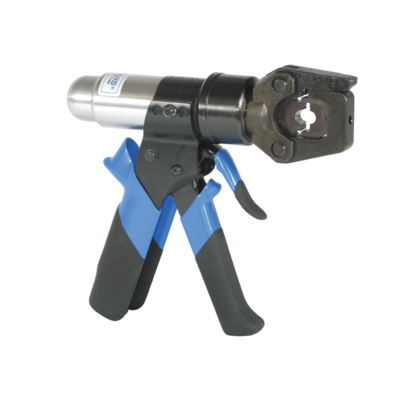

General: Hydraulic or electrical* one-hand operated press tool for steel wire ropes in lightening arrangements, rigging, marine ropes, theatres, exhibitions and other applications. Quick change of pressbars, rotating presshead, delievered in a bag which can hold a complete set of pressbars.
Pressforce: 35 kN (3600 kp).
Weight: 1,54 kg.
Dimensions: 200x50x175 mm.
Standard pressbars: Length 8,75/6,3 mm.
Accessory: Pressbars length 12 mm.
- Warning: Not approved for lifting.
Download CAD
Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
Pressbars
|
Art No
|
Code
|
Steelwire Ø
|
Steelwire Ø
|
Pressclip*
|
Number of presses/clip
|
|
|
|||||||||||
|
|
|
fiber core
|
steel core
|
no
|
bar 6,3 mm
|
bar 8,75 mm
|
bar 12 mm
|
|||||||||||
|
|
|
mm
|
mm
|
|
pc
|
pc
|
pc
|
|||||||||||
|
10.47MK3115
|
MK31.15
|
1,1-1,5
|
0,9-1,1
|
1,5
|
-
|
1
|
-
|
|||||||||||
|
10.47MK3120
|
MK31.20
|
1,6-2
|
1,2-1,6
|
2
|
-
|
2
|
1
|
|||||||||||
|
10.47MK3125
|
MK31.25
|
2,1-2,6
|
1,7-2,1
|
2,5
|
-
|
2
|
1
|
|||||||||||
|
10.47MK3130
|
MK31.30
|
2,7-3,1
|
2,2-2,6
|
3
|
-
|
2
|
1
|
|||||||||||
|
10.47MK3135
|
MK31.35
|
3,2-3,6
|
2,7-3,1
|
3,5
|
-
|
2
|
2
|
|||||||||||
|
10.47MK3140
|
MK31.40
|
3,7-4,1
|
3,2-3,6
|
4
|
-
|
3
|
2
|
|||||||||||
|
10.47MK3145
|
MK31.45
|
4,2-4,6
|
3,7-4,2
|
4,5
|
4
|
-
|
-
|
|||||||||||
|
10.47MK3150
|
MK31.50
|
4,7-5,1
|
4,3-4,6
|
5
|
4
|
-
|
-
|
|||||||||||
|
10.47MK3160
|
MK31.60
|
5,2-6,1
|
4,7-5,5
|
6
|
5
|
-
|
-
|
|||||||||||
|
*To stainless ropes copper clips are recommended.
|
|
|
|
|
|
|
|
|
|
|
||||||||
