General: For lifting and transportation of street rails of types 57R1 and 60R2. Thanks to its clever design, which takes up minimal space, this clamp can efficiently be used for stacking a number of standing rails at a time. The clamp is locked by turning the knob placed at the flange of the rail.

  • Marking: WLL, manufacturer and CE-marking.
  • Finish: Painted.
  • Safety factor: 5:1

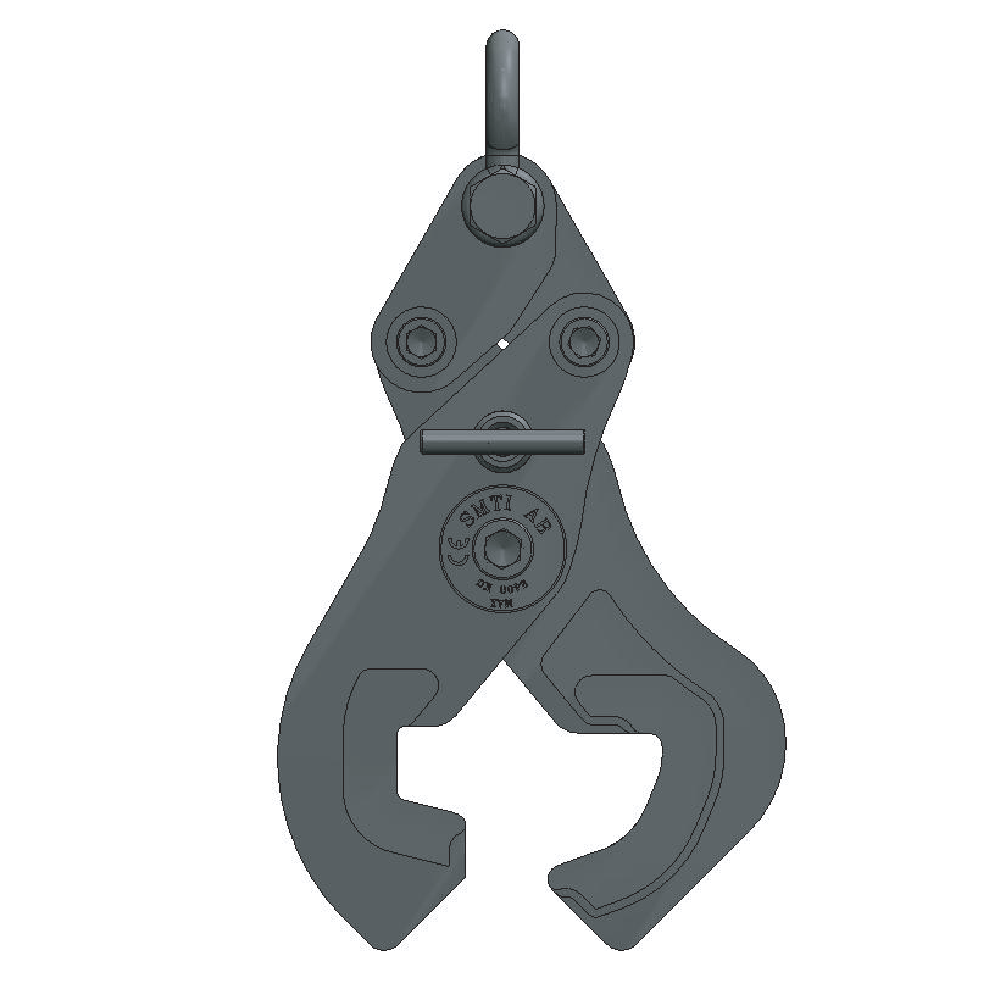

R2_image

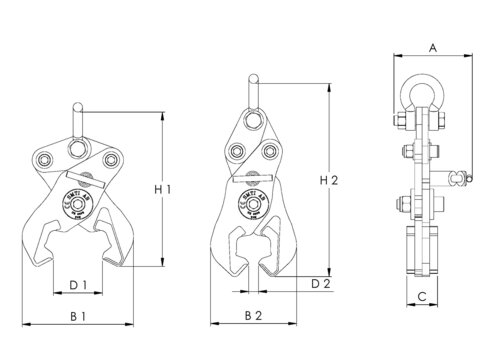

Måttskiss R-Saxar R2_dwg
Select a row from the table below, then click the add to quote button
Part Code Code WLL
ton
Jaw width
mm
H1
mm
H2
mm
B1
mm
B2
mm
D1
mm
D2
mm
C
mm
A
mm
Weight
kg
16.01331026 R2 2,4 20-130 360 445 305 235 130 20 62 145 11,7
