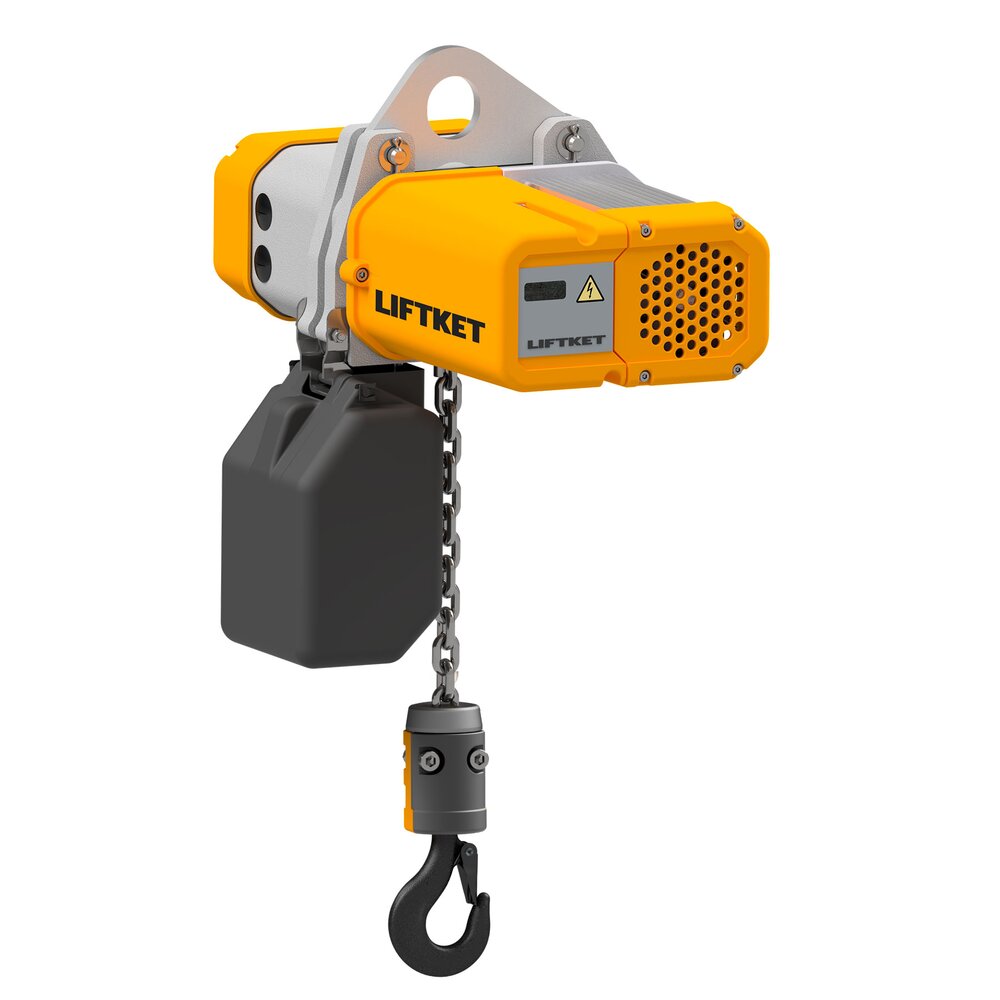

Electric Chain Hoist LIFTKET STAR VFD

1st electronically controlled chain hoist Liftket STAR VFD is developed for almost every lifting application and is convincing all along the line.

Features:

  • load-dependent, infinitely variable speed control from 2 to 24 m/min
  • one hoist for a worldwide use (380 – 480V / 50 and 60 Hz)
  • t

Show more

1st electronically controlled chain hoist Liftket STAR VFD is developed for almost every lifting application and is convincing all along the line.

Features:

  • load-dependent, infinitely variable speed control from 2 to 24 m/min
  • one hoist for a worldwide use (380 – 480V / 50 and 60 Hz)
  • the hoists can be operated with up to 200 % of the nominal speed by moving without load

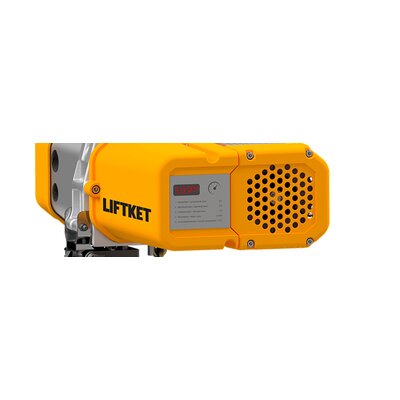

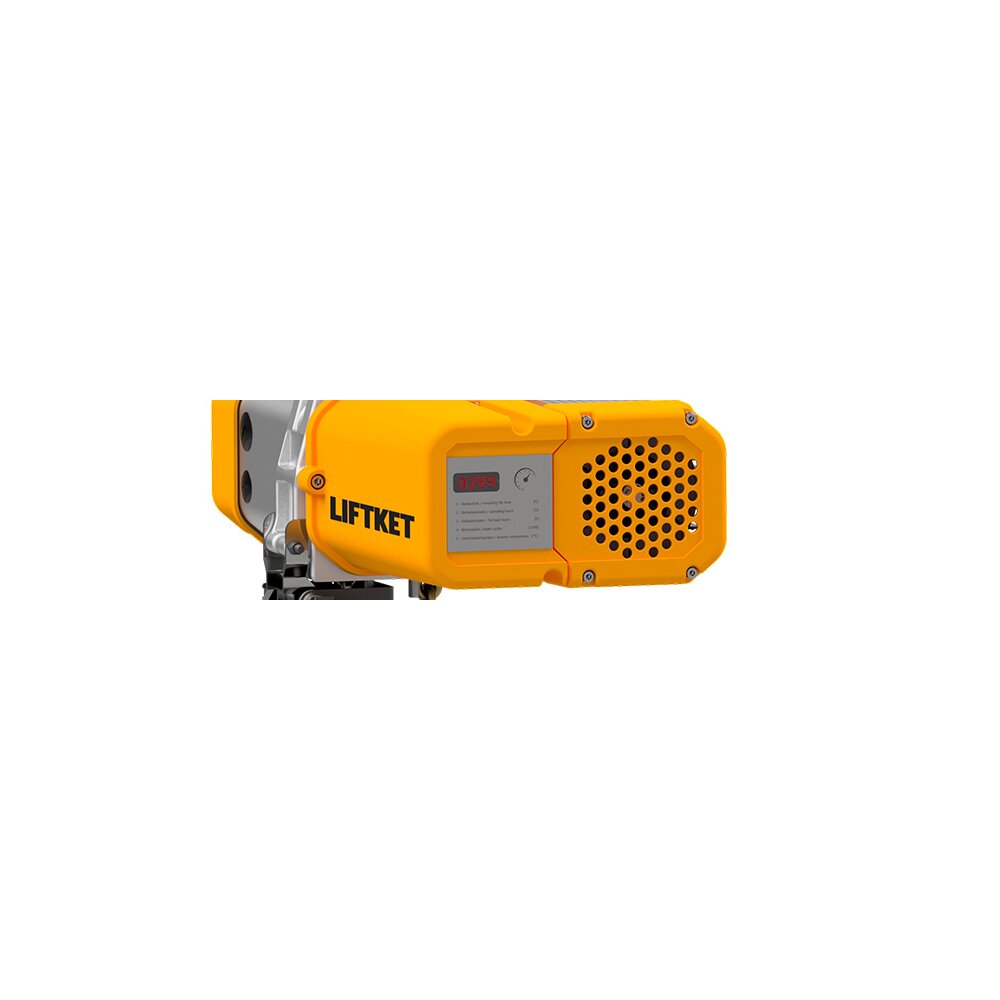

  • first chain hoist with integrated display for displaying the following values:
    - Remaining useful life
    - operating hours
    - full load hours
    - number of brake clearances
    - inverter temperature
  • decreases the maintenance effort and costs
  • with hoisting limit switches
  • with overheating protection for lifting motor and VFD
  • UL solutions available
  • protection class IP55, insulation class F
  • all mechanical accessories and components are fully compatible (e.g. Chain bags, trolleys, special chains, variations, etc.)

Trolleys/Boogies: Manual or electric trolleys in various designs for each steel section girder.

  • Marking: CE-marked

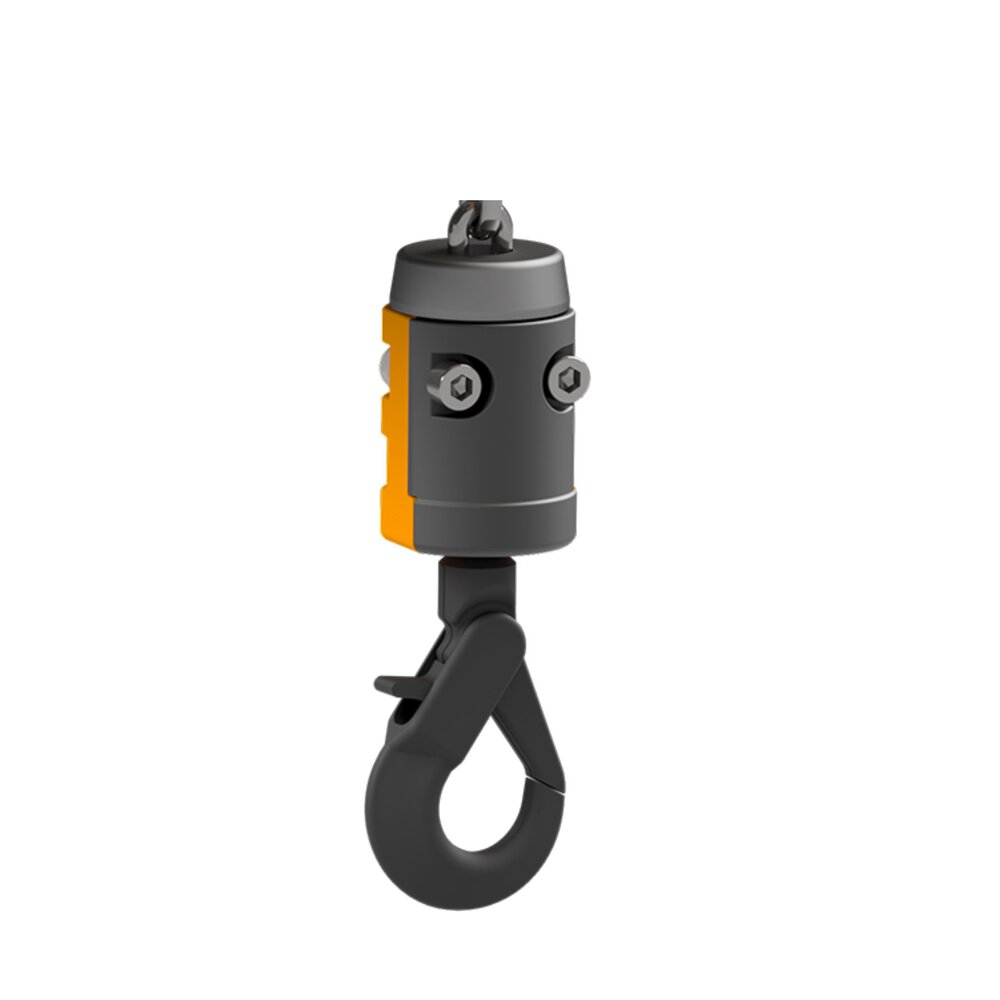

  • Note: Standard version delivered with lifting eye (connection between crane and trolley). Alternatively, comes with suspension hook. Standard stock hoist with 6 m lifting height.

Weight with 3 m lift chain
