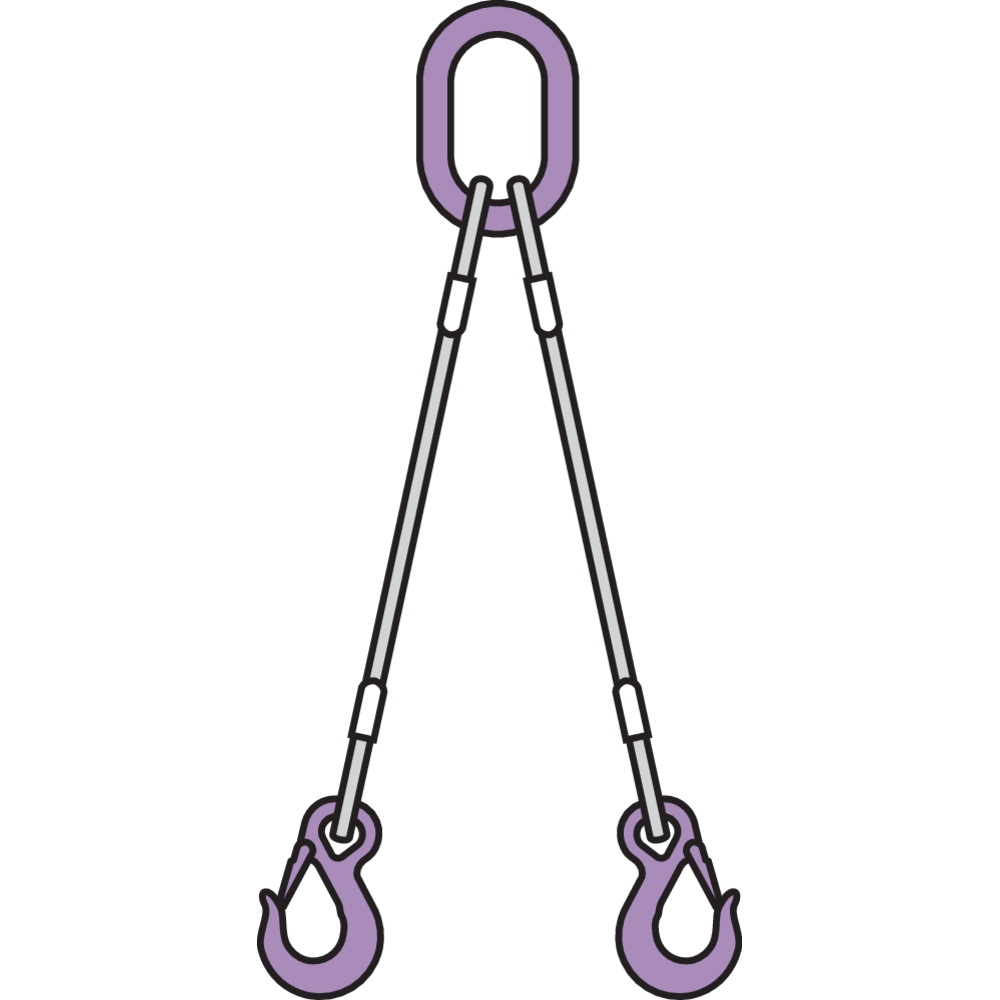

Wire Rope Lifting Sling WLS-275

Standard steel wire rope construction: 6x36WS IWRC, 1960N/mm2
Design:
 Master link in one end and eyehooks with safety latch in other ends, aluminum ferrule secured (mechanical spliced).

Load table at Technical Data -> Show table

Please specify the needed (working) length with your request.

Show more

Show table
Log in to webshop
Product number:

Standard steel wire rope construction: 6x36WS IWRC, 1960N/mm2
Design:
 Master link in one end and eyehooks with safety latch in other ends, aluminum ferrule secured (mechanical spliced).

Load table at Technical Data -> Show table

Please specify the needed (working) length with your request.

Other rope construction and/or end-terminations such as top rings, shackles, hooks, etc.. possible on request. In that case, please contact us to discuss the possible options or specify it with your request.

Filters

Show more filters

After click on the “Show table” button, you will see the table with all technical details about the product.

Steel Wire Rope Sling - Steel Core 2

ø 3 mm - 7 mm 6x19M WSC -1960N/mm2 / ø8 mm and up 6X36WS IWRC -1960N/mm2  - EN 13414-1

Safety Factor 5:1

Rope dia Ø 1-part 2-part 3-4-part Endless
rakt snarat u-form 2-parting-0-45 2-parting-45-60 3-parting-0-45 3-parting-45-60 andlos-rakt andlos-snarat andlos-uform
Straight pull Choke hitch Basket hitch 0°−45° 45°−60° 0°−45° 45°−60° Straight pull Choke hitch Basket hitch
mm Working load limit (WLL) in tons
3 0,12 0.09 0.23 0,16 0,12 0,25 0,18 0,23 0,19 0,47
4 0,21 0,17 0,42 0,29 0,21 0,44 0,31 0,42 0,33 0,84
5 0,32 0,26 0,65 0,45 0,32 0,68 0,49 0,65 0,52 1,30
6 0,47 0,37 0,94 0,66 0,47 0,98 0,70 0,94 0,75 1,87
7 0,64 0,51 1,28 0,89 0,64 1,34 0,96 1,28 1,02 2,56
8 0,82 0,66 1,64 1,15 0,82 1,72 1,23 1,64 1,31 3,28
9 1,04 0,83 2,07 1,45 1,04 2,18 1,56 2,07 1,66 4,15
10 1,28 1,02 2,56 1,79 1,28 2,69 1,92 2,56 5,05 5,12
11 1,55 1,24 3,10 2,17 1,55 3,25 2,32 3,10 2,48 6,20
12 1,84 1,47 3,67 2,57 1,84 3,85 2,75 3,67 2,94 7,34
13 2,17 1,73 4,33 3,03 2,17 4,55 3,25 4,33 3,47 8,66
14 2,51 2,01 5,03 3,52 2,51 5,28 3,77 5,03 4,02 10,06
16 3,29 2,63 6,57 4,60 3,29 6,90 4,93 6,57 5,26 13,14
18 4,15 3.,32 8,30 5,81 4,15 8,71 6,22 8,30 6,64 16,59
20 5,12 4,10 10,24 7,17 5,12 10,75 7,68 10,24 8,19 20,48
22 6,20 4,96 12,41 8,69 6,20 13,03 9,31 12,41 9,93 24,82
24 7,38 5,90 14,76 10,33 7,38 15,5 11,07 14,76 11,81 29,51
26 8,66 6,93 17,33 12,13 8,66 18,19 13,00 17,33 13,86 34,65
28 10,04 8,03 20,08 14,06 10,04 21,08 15,06 20,08 16,06 40,16
32 13,12 10,50 26,25 18,37 13,12 27,56 19,69 26,25 21,00 52,49
36 16,59 13,67 33,19 23,23 16,59 34,84 24,89 33,19 26,55 66,37
40 20,56 16,45 41,11 28,78 20,56 43,17 30,84 41,11 32,89 82,23
44 24,78 19,82 49,56 34,69 24,78 52,04 37,17 49,56 39,65 99,12
48 29,55 36,64 59,10 41,37 29,55 62,06 44,33 59,10 47,28 118,21
52 34,69 27,75 69,38 48,57 34,69 72,85 52,04 69,38 55,51 138,76
Factor (KL) 2 0,8 2 1,4 1 2,1 1,5 2 1,6 4
