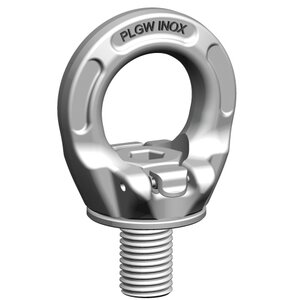

Stainless Steel Double Swivel Ring: SS DSR.
Double articulation allows it to line up perfectly with the sling.
From M8 to M30 as standard; for loads from 0.3 t to 3 t.
- Rotatable under load.
- Two ways of tightening:- Allen key or Torque wrench(also for external hex)
- Material: AISI 316 L
- Marking: According to standard, CE-marked
- Safety factor: 5:1

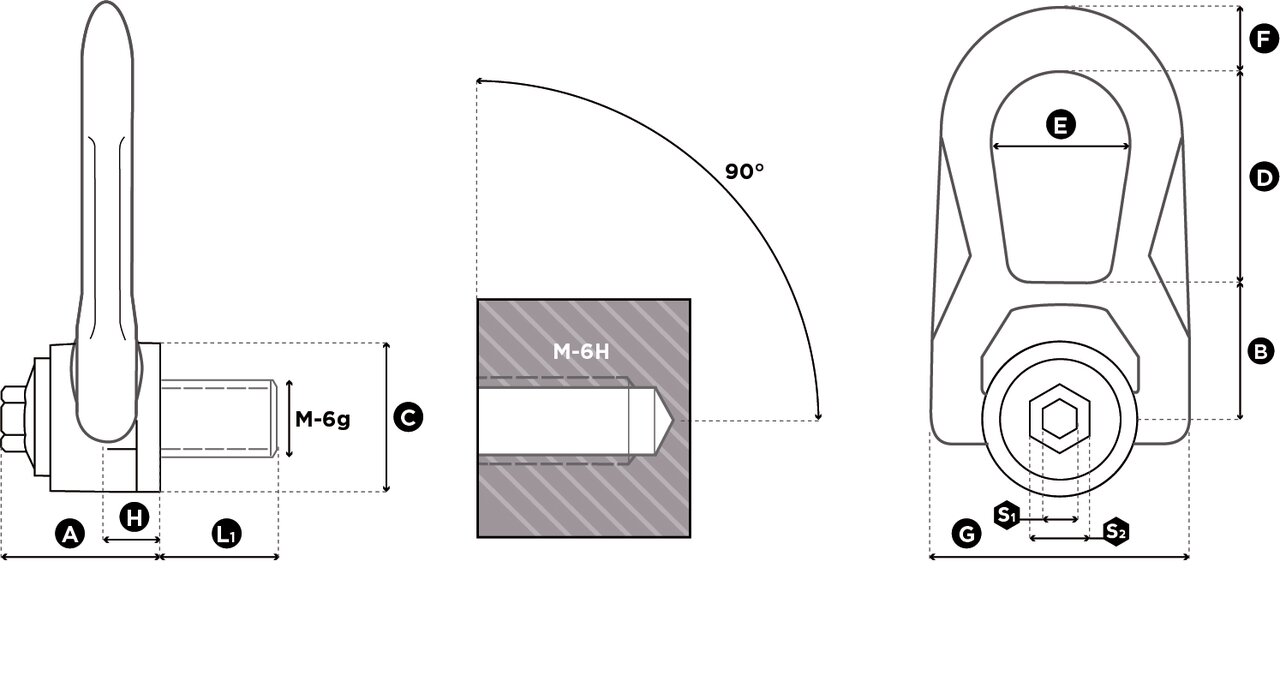

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
