Design: Supplied as standard jaw-jaw. WLL rated similar to U.S. specification FF-T-791.b. Proof loaded and approved for lifting.

Material: High tensile alloy steel.
Marking: WLL.
Finish: Galvanized.
Warning: The turnbuckles are not allowed to be ajusted in length under load, when they are used for lifting!

Safety factor: 5:1
Grade: 8

Select a row from the table below, then click the add to quote button

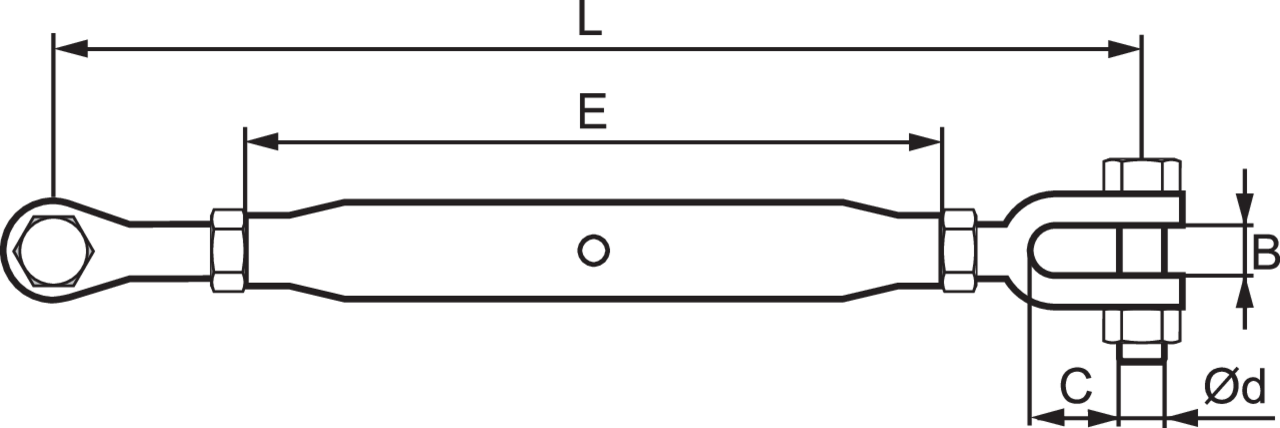

Part Code	Code	WLL ton	Thread	B mm	C mm	E mm	L min. mm	L max. mm	Ø d mm	Weight kg
11.50A801420	1430	2.5	M20	20	42	270	455	665	16	2.3
11.50A801424	1431	5	M24	28	54	340	570	820	22	4.8
11.50A801432	1432	7	1 1/4''	38	71	370	680	950	28	8.6
11.50A801438	1433	10	1 1/2''	45	84	420	790	1,090	32	16
11.50A801445	1434	13	1 3/4''	50	85	500	870	1,230	39	23
11.50A801450	1435	17	2''	58	97	600	1,030	1,480	45	33

Other dimensions and preformance on request.

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
