Design: Swivel with jaws equipped with tapered roller thrust bearing.

Features:

Suitable for frequent rotation under load.
All swivels individually Proof Tested to 2 times the Working Load Limit.
Pressure lube fitting provided
All jaws complete with bolts, nuts and cotter pins.
Other types and capacities up to 1250 t available on demand.

Marking: CE-marked
Note: Always check before use if your steel wire rope is suitable for use with a swivel.
Warning: Not to be used on demolition- (wrecking-) balls!

Safety factor: 5:1

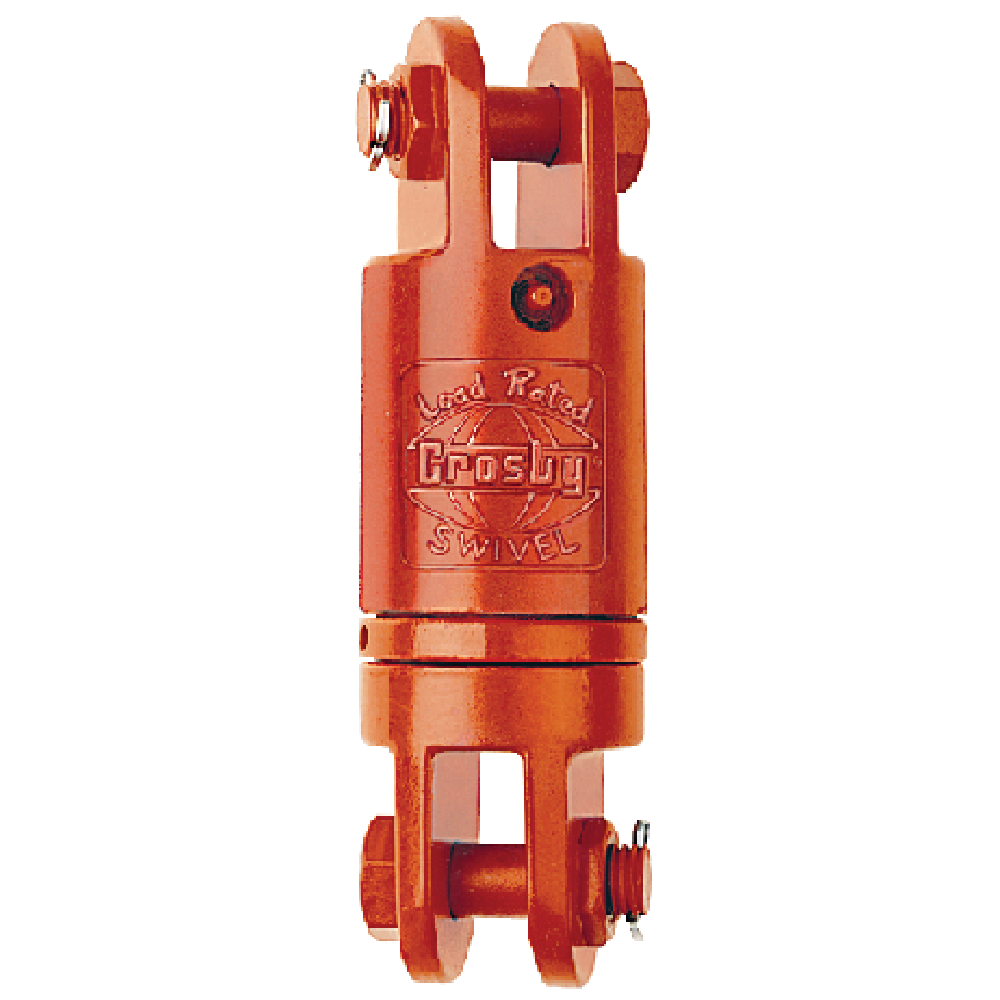

Swivel Jaw / Jaw Crosby S2

Select a row from the table below, then click the add to quote button

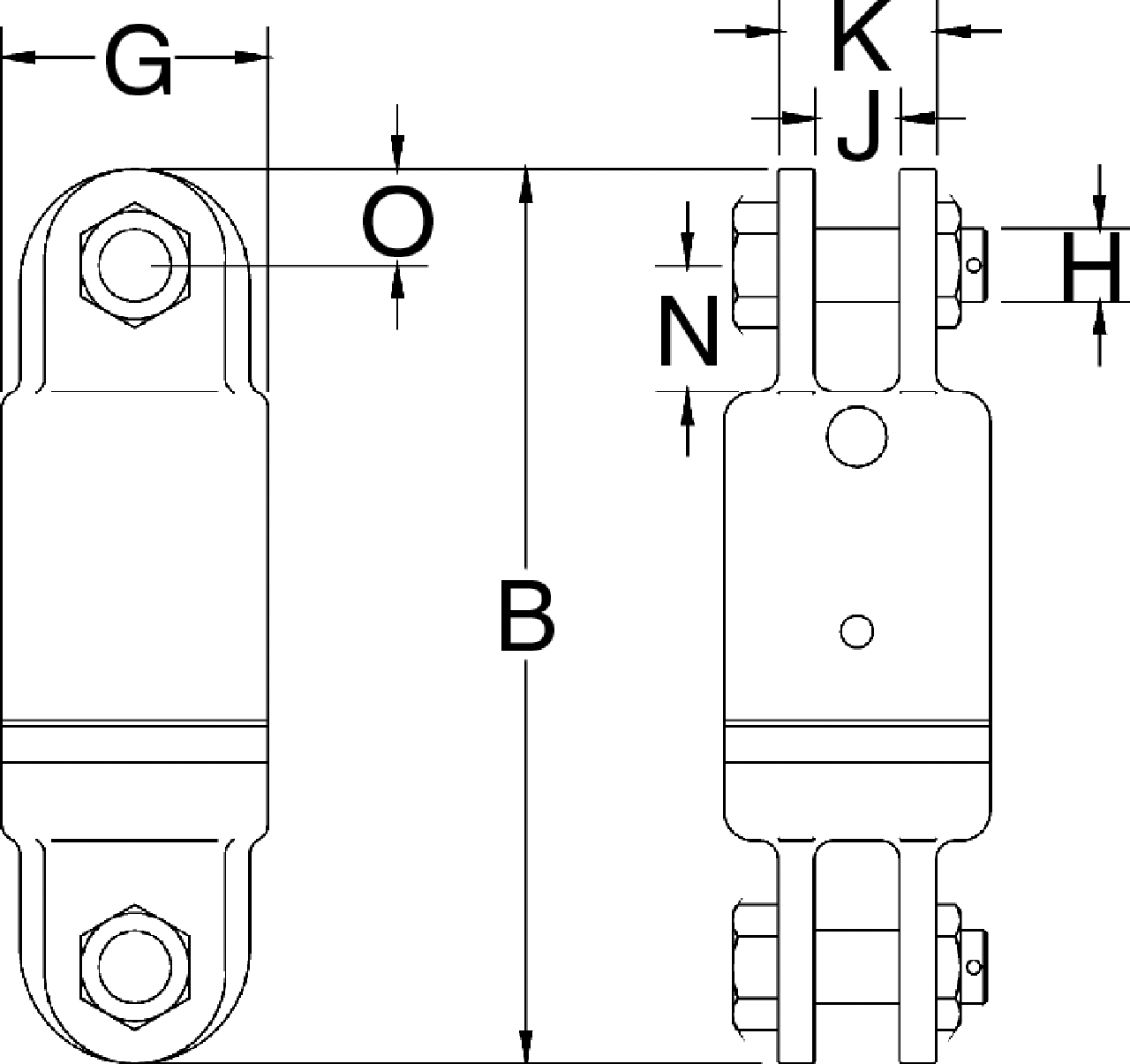

Part Code	WLL ton	Rope Ø mm	Swivel No	B mm	G mm	H mm	J mm	K mm	N mm	O mm	Weight kg	CAD
11.46297020	3	13	3-S-2	236	70,0	19,1	22,4	41,1	33,3	25,4	4,37	-
11.46297226	5	16	5-S-2	262	76,0	22,4	25,4	57,0	41,1	28,4	6,21	-
11.46297422	8,5	19	8-S-2	321	102	25,4	39,5	71,5	54,0	35,1	11,9	-
11.46297627	10	22	10-S-2	426	114	38,1	44,5	86,0	89,0	44,5	20,8	-
11.46297823	15	26	15-S-2	435	127	38,1	44,5	86,0	89,0	44,5	28,5	-
11.46298127	25		25-S-2	527	152	51,0	51,0	117	93,5	60,5	64	-
11.46298225	35		35-S-2	527	165	51,0	51,0	117	93,5	60,5	70	-
11.46298323	45		45-S-2	641	178	57,0	63,5	127	102	76,0	107	-
