General: At least 25% greater WLL than traditional Grade 8 products.
Proof Load tested at 2.5 times the WLL with certification for each batch manufactured.
Fatigue rated to 20,000 cycles at 1.5 times the WLL.
Magnaflux crack detection is performed 100% on each batch.
No reduction in WLL when shortening chain.

  • Material: Quenched and Tempered Alloy Steel
  • Marking: According to standard, CE marking
  • Temperature range: -40ºC up to +200°C (without reduction in WLL).
  • Finish: Blue painted.
  • Standard: EN 1677-1
  • Safety factor: 4:1
  • Grade: 10

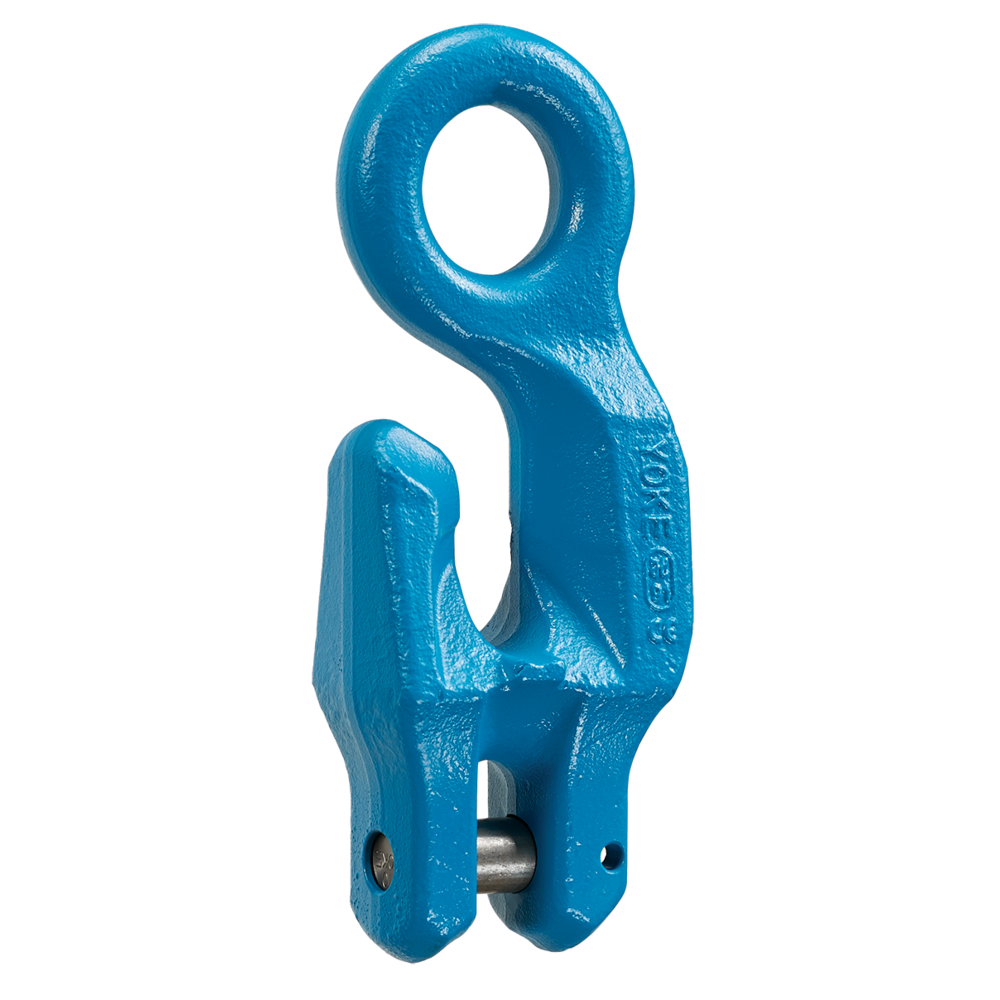

Product Picture 1

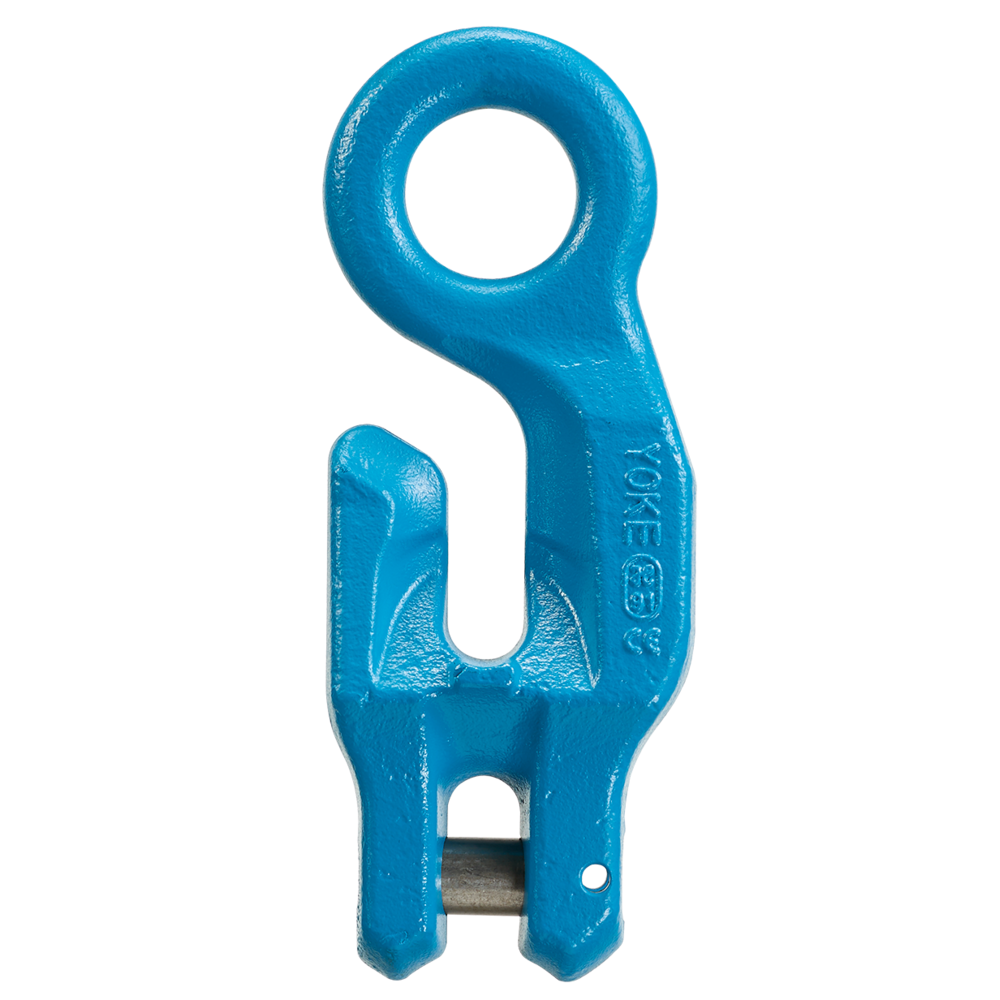

Product Picture 2
Select a row from the table below, then click the add to quote button

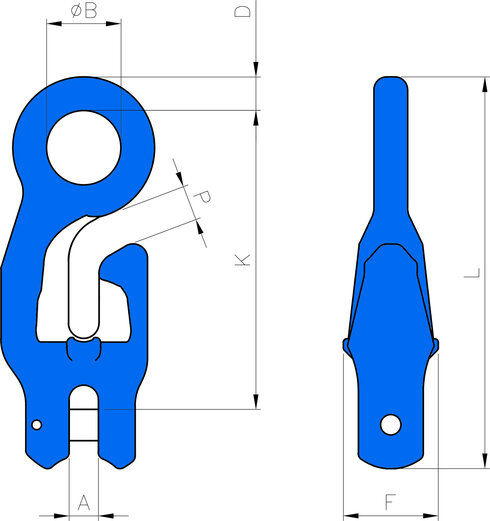

Part Code WLL
ton
For grade100 Chain
mm
A
mm
B
mm
D
mm
F
mm
K
mm
L
mm
P
mm
Weight
kg
11.21X-079-06 1,4 5, 6 8 18 9 24 76 99 12 0,24
11.21X-079-07 2,5 7, 8 10 24 13 32 102 134 12 0,54
11.21X-079-10 4 10 12 31 14 40 125 163 15 1,03
11.21X-079-13 6,7 13 16 37 18 51 158 208 20 2,18
11.21X-079-16 10 16 19 48 24 64 202 264 21 4,39
