• Ordinary right hand lay
  • Galvanized
  • Bright
  • Not to be used with swivel

Steel wire rope for cranes, hoists, and slings.

ISO 4309 Rope Category No: All Diameters RCN.04

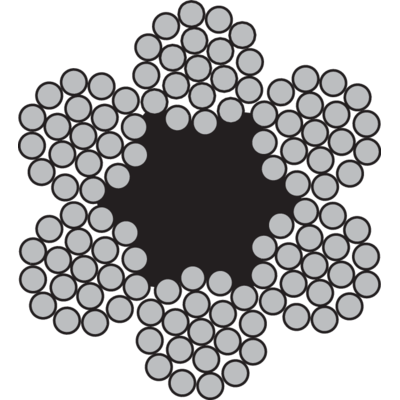

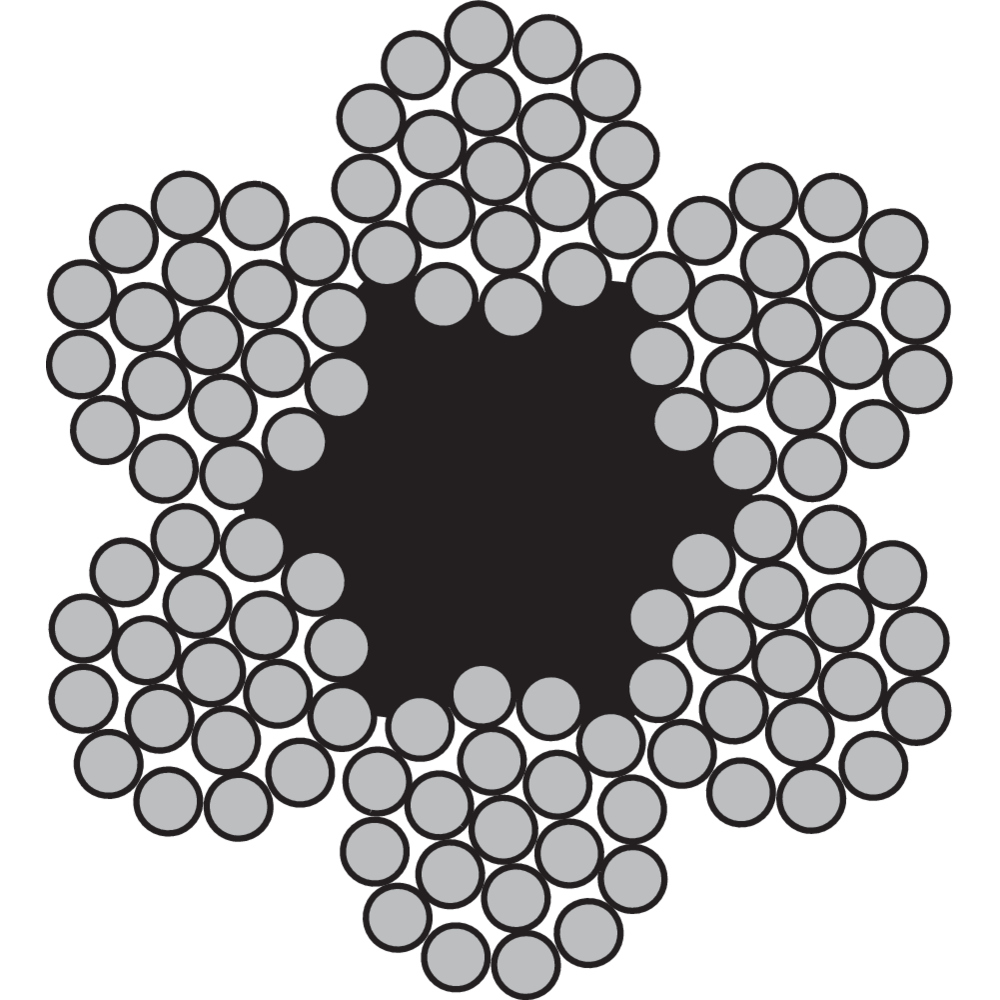

  • Rope construction: 6x19M-FC
  • Marking: According to standard
  • Standard: EN 12385-4
  • Fill factor: 0.45
  • Slings Sling wire rope
  • Overhead cranes For the use with overhead crane
6x19-FC[225mm]
Select a row from the table below, then click the add to quote button
Part Code Rope diameter
mm
Steel Area
mm²
Min. breaking force
kN
1960 N/mm²
Weight
kg/100m
01.G10114030G-M 3 3,21 5,42 3,1
01.G10114040G-M 4 5,71 9,63 5,5
01.G10114050G-M 5 8,93 15 8,7
01.G10114060G-M 6 12,9 21,7 13
01.G10114065G0-M 6,5 15,1 25,4 14,6
01.G10114070G-M 7 17,5 29,5 17

Other dimensions on request.
