• Ordinary left hand lay
  • Ordinary right hand lay
  • Bright
  • Not to be used with swivel

ISO 4309 Rope Category No: All Diameters RCN.08

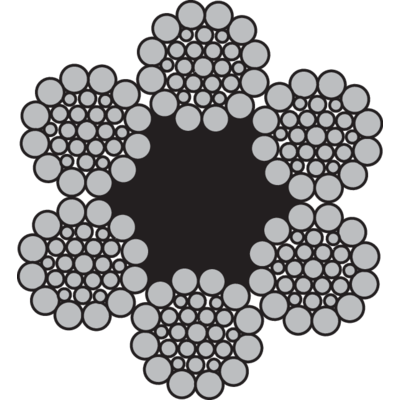

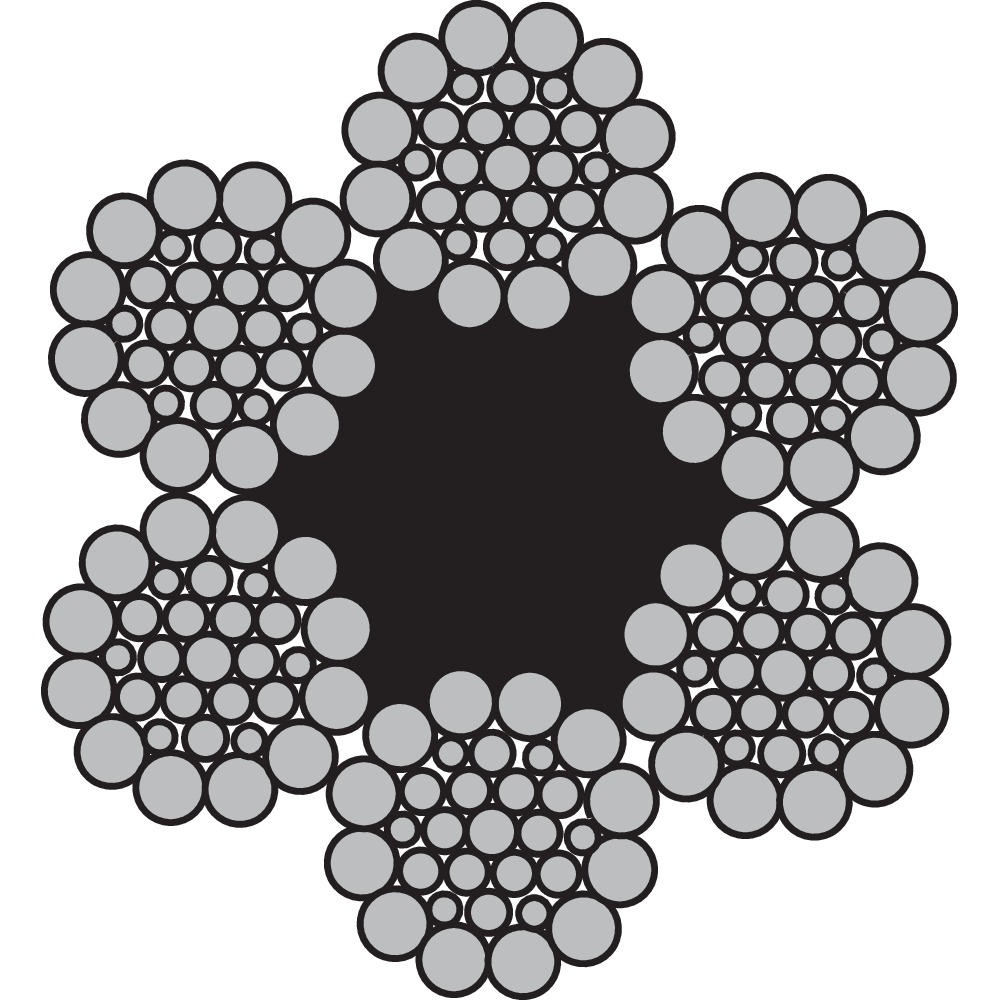

  • Rope construction: 6x31-FC.
  • Marking: According to standard
  • Standard: EN 12385-4
  • Fill factor: 0.5
  • Overhead cranes For the use with overhead crane
6x31-FC[new]_225mm
Select a row from the table below, then click the add to quote button
Part Code Rope diameter
mm
Steel Area
mm²
Min. breaking force
kN
1960 N/mm²
Weight
kg/100m
01.B10186070G 7 19,3 28,6 18
Other dimensions on request.
