• Ordinary right hand lay
  • Ordinary left hand lay
  • Galvanized
  • Compacted strands
  • Double parallel lay construction
  • Not to be used with swivel

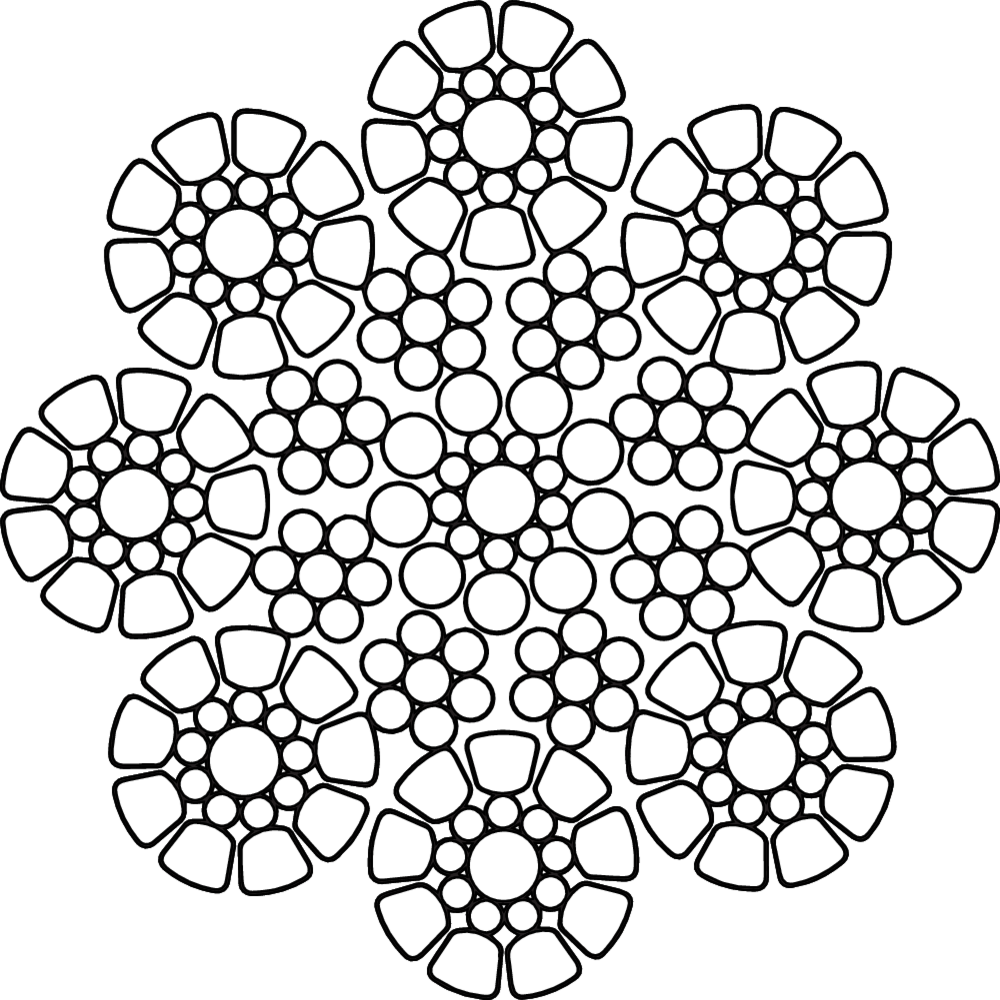

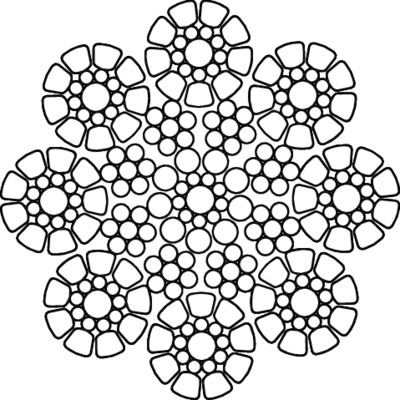

A compacted 8-strand double parallel lay rope, non-rotation resistant. The PWRC-steel core is made of uncompacted strands and the external strands are compacted.

M8DPK offers very high breaking force, reduced elongation and good flexibility. Suitable for applications that don’t require rotation resistant ropes but demands high breaking forces.

  • Double parallel construction extends service of life of the rope
  • High performance and higher breaking load due to closing rope simultaneously
  • Compacted strands increase the high breaking load and reduce abrasion of pulleys
  • Minimal elongation at loading
  • Thin diameters of wires in inner layer retain flexibility on the rope
  • Suitable for multilayer spoling
  • Rope construction: 8xK19S-PWRC
  • Marking: According to standard
  • Temperature range: -40°C up to +200°C, for operating temperatures between 100°C and 200°C reduce MBF by minus 10%
  • Standard: EN 12385-4
  • Note: A parallel closed rope is very sensible to the rotation and fleet angle. Should not be used when the fleet angle is more than 1,5-2°.
  • Fill factor: 0,70
  • RCN: 04
  • Overhead cranes For the use with overhead crane
  • Tower crane Information icon
  • Crawler crane Information icon
  • Winch rope Information icon
Select a row from the table below, then click the add to quote button
Part Code Rope diameter
mm
Steel Area
mm²
Min. breaking force
kN
2160 N/mm²
Weight
kg/100m
01.G12M8D060H 6 19.8 38 23
01.G12M8D070H 7 26.9 46 27
01.G12M8D080H 8 35.2 66 31
01.G12M8D090H 9 44.5 83 46
01.G12M8D100H 10 55 93 48
01.G12M8D110H 11 66.5 128 56
01.G12M8D120H 12 79.2 149 72
01.G12M8D130H 13 92.9 179 87
01.G12M8D140H 14 108 210 99
01.G12M8D150H 15 124 225 105
01.G12M8D160H 16 141 241 125
