Steel Wire Rope verostar 8

verope
  • Ordinary right hand lay
  • Ordinary left hand lay
  • Right hand langs lay
  • Left hand langs lay
  • Galvanized
  • Bright finish
  • Not to be used with swivel

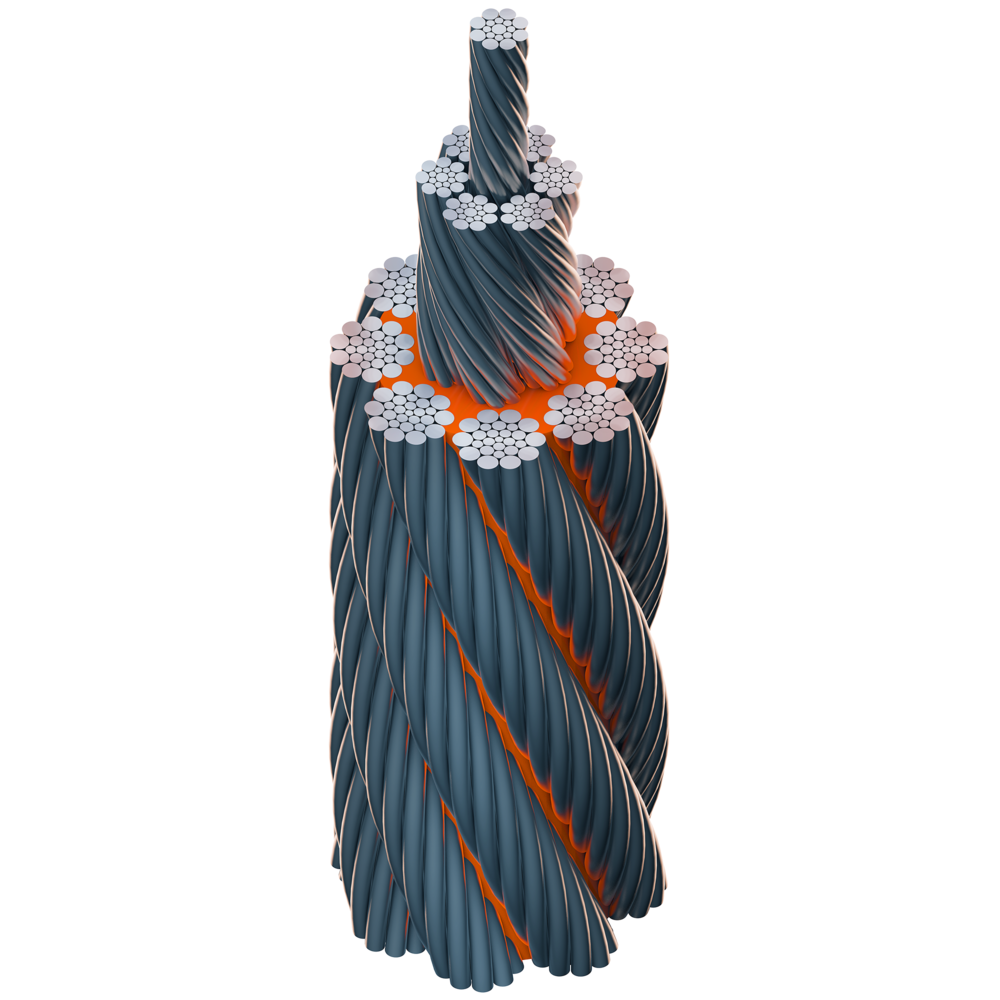

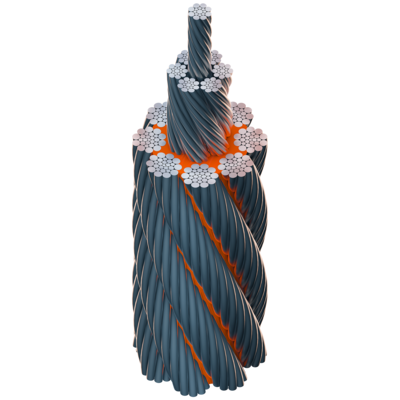

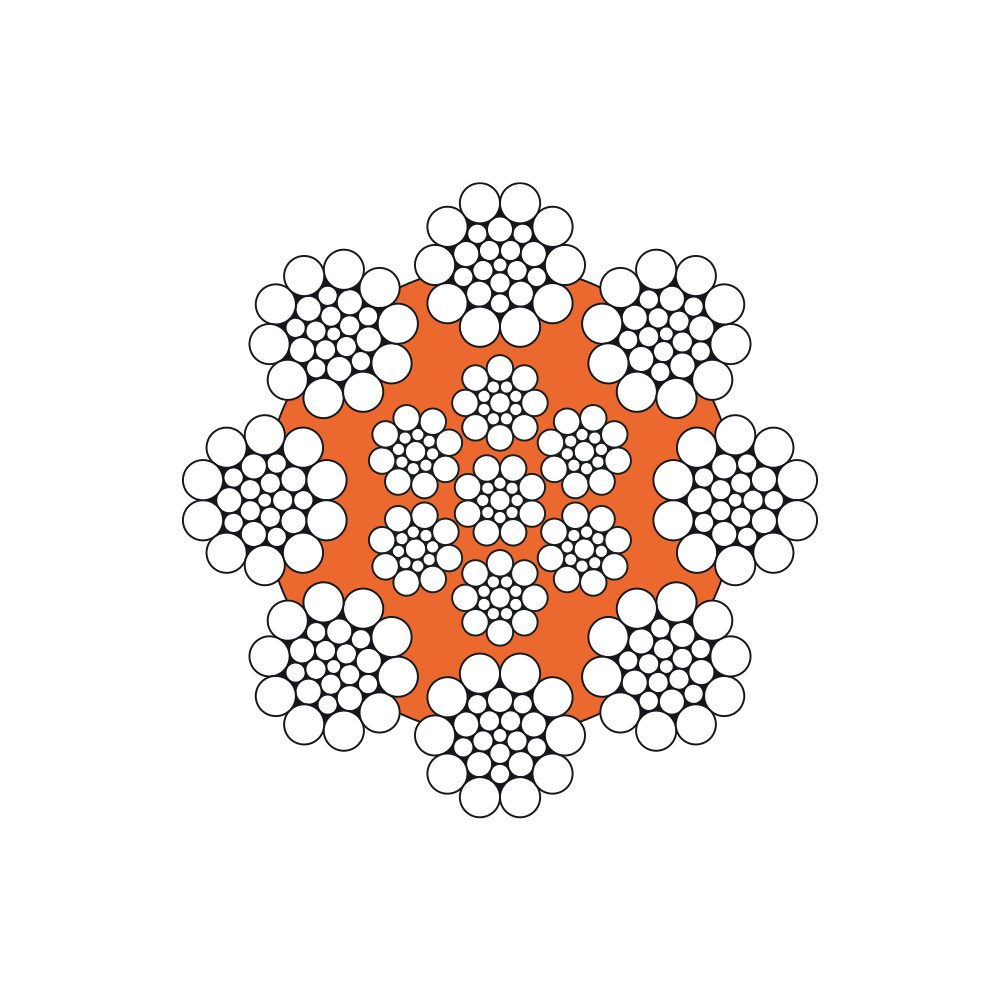

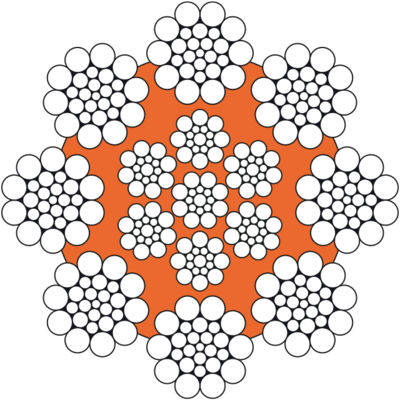

Wire rope construction: Verostar 8 is a 8 strand non-rotation-resistant rope made out of conventional strands, plastic layer between the inner and outer strands.

Features:
- High breaking strength
- Very stable rope structure and achieves good bending fatigue results
- Achieves best service life in reeving systems with single layer drums

ISO 4309
Rope Category No
: Up to 42mm RCN.09, 43-48mm RCN.11, > 48mm RCN.13

  • Marking: According to standard
  • Standard: EN 12385-4
  • Warning: verostar 8 may not be used with a swivel.
  • Fill factor: 0.61
  • Tolerance Ø: +2% to +4%
  • Overhead cranes For the use with overhead crane
  • Tower crane Wire for tower crane
  • Container crane For use with container crane
  • Mobile port crane Wire for mobile port crane
  • Loading crane Wire for loading crane
  • Piling crane Wire for piling crane
  • Ladle crane Wire for ladle crane
  • STS crane Wire for STS crane
  • Straddle carrier Wire for straddle-carrier
  • RTG Wire for RTG-crane
