• Not for lifting

General: Chain for different applications.


  • Marking: According to standard
  • Finish: 3-4 mm zink-platined, 5- mm hot-dip galvanized.
  • Standard: DIN 766
  • Warning: Not for lifting.
  • Grade: 3

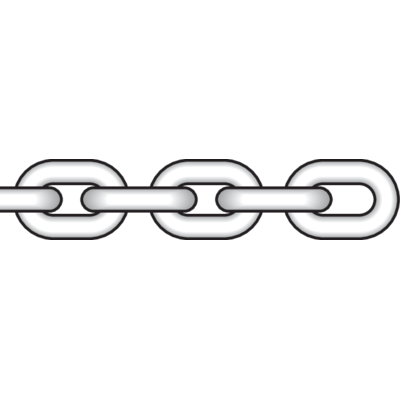

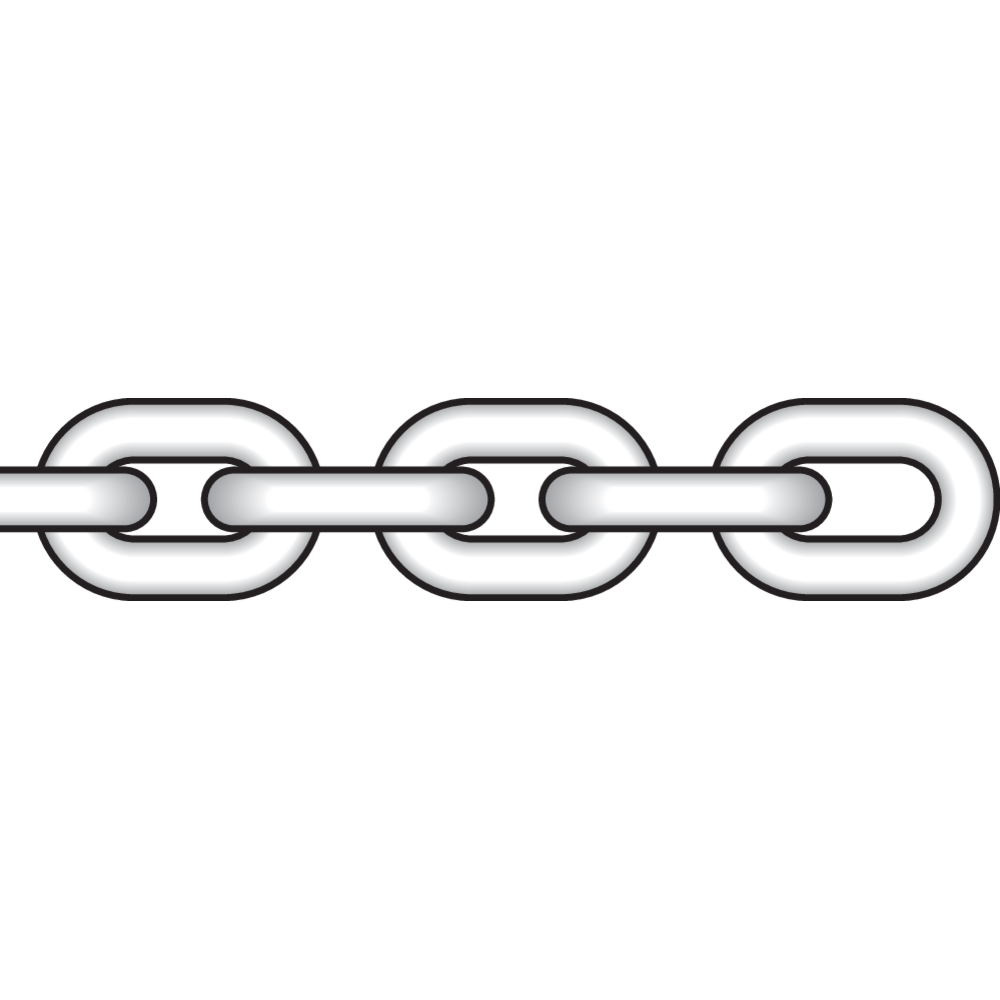

KL_White_225mm

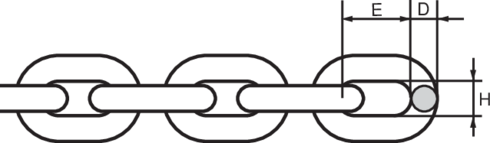

KLM_e_225mm
Select a row from the table below, then click the add to quote button
Part Code Chain diameter
mm
Min. breaking force
kN
Length
m
D
mm
E
mm
H
mm
Weight
kg/m
11.61766030E 3 3,2 50 3 16 5 0,16
11.61766040E 4 8 50 4 16 5,7 0,32
11.61766050G 5 12,5 30 5 18,5 7 0,5
11.61766060G 6 16 30 6 18,5 8,2 0,8
11.61766080G 8 32 15 8 24 11,2 1,4
11.61766090G 9 40 25 9 27 12,6 1,8
11.61766100G 10 50 15 10 28 14 2,2
11.61766110G 11 63 25 11 31 15,4 2,7
11.61766130G 13 80 25 13 36 18,2 3,8

*Please note that this product is sold in rolls only.
