• Not for lifting

General: Chain for different applications.
Standard: SMS 1503.

  • Material: Grade 2
  • Finish: 3-4,5 mm zink-platined, 5- mm hot-dip galvanized.
  • Warning: Not for lifting.
  • Grade: 2

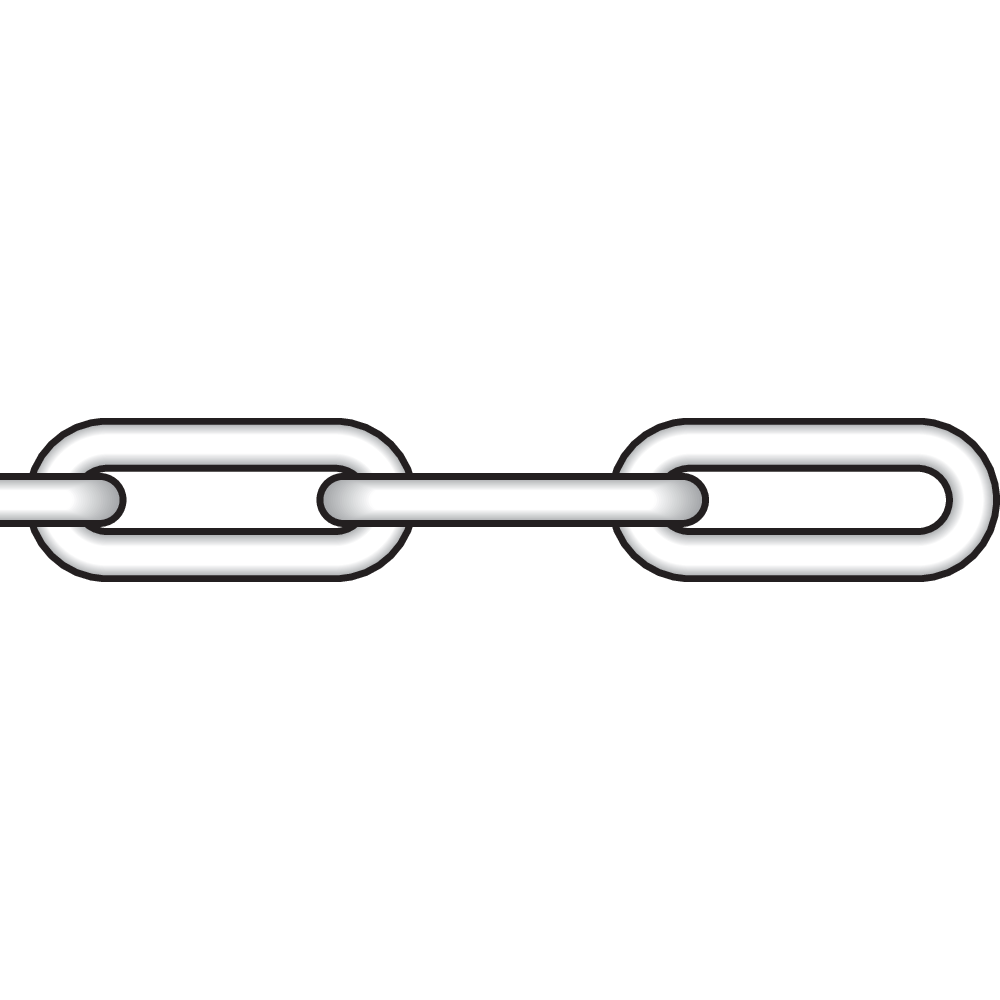

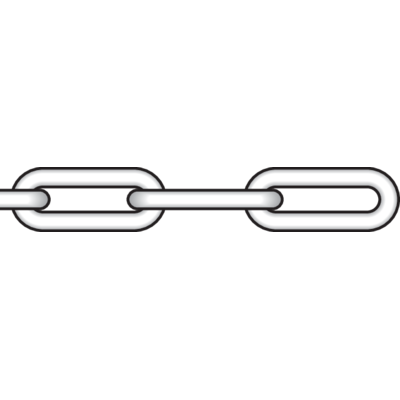

Hlx_225mm
HLM_e_225mm
Select a row from the table below, then click the add to quote button
Part Code Chain diameter
mm
Min. breaking force
kN
Length
m
D
mm
E
mm
H
mm
Weight
kg/m
11.601503020E 2 1,5 25 2 15 3 0,07
11.601503025E 2,5 2,3 25 2,5 17 4 0,11
11.601503030E 3 3,4 25 3 19 5 0,16
11.601503035E 3,5 4,6 25 3,5 21 5,5 0,22
11.601503040E 4 6 25 4 23 6 0,28
11.601503045E 4,5 7,5 25 4,5 25 7 0,36
11.601503050G 5 9,5 25 5 28 8 0,45
11.601503055G 5,5 11,5 25 5,5 31 9 0,5
11.601503060G 6 13,5 25 6 35 10 0,6
11.601503070G 7 18,5 25 7 41 11 0,9
11.601503080G 8 24 25 8 47 13 1,1
11.601503090G 9 32 25 9 53 15 1,4
11.601503100G 10 40 25 10 59 16 1,7
11.601503110G 11 46 25 11 50 15 2,2
11.601503130G 13 63 25 13 55 20 3
11.601503160G 16 96 25 16 65 22 4,6
