Home / Products / Chain & chain slings / Chain / Chain WOX Stainless Pewag - Short Link

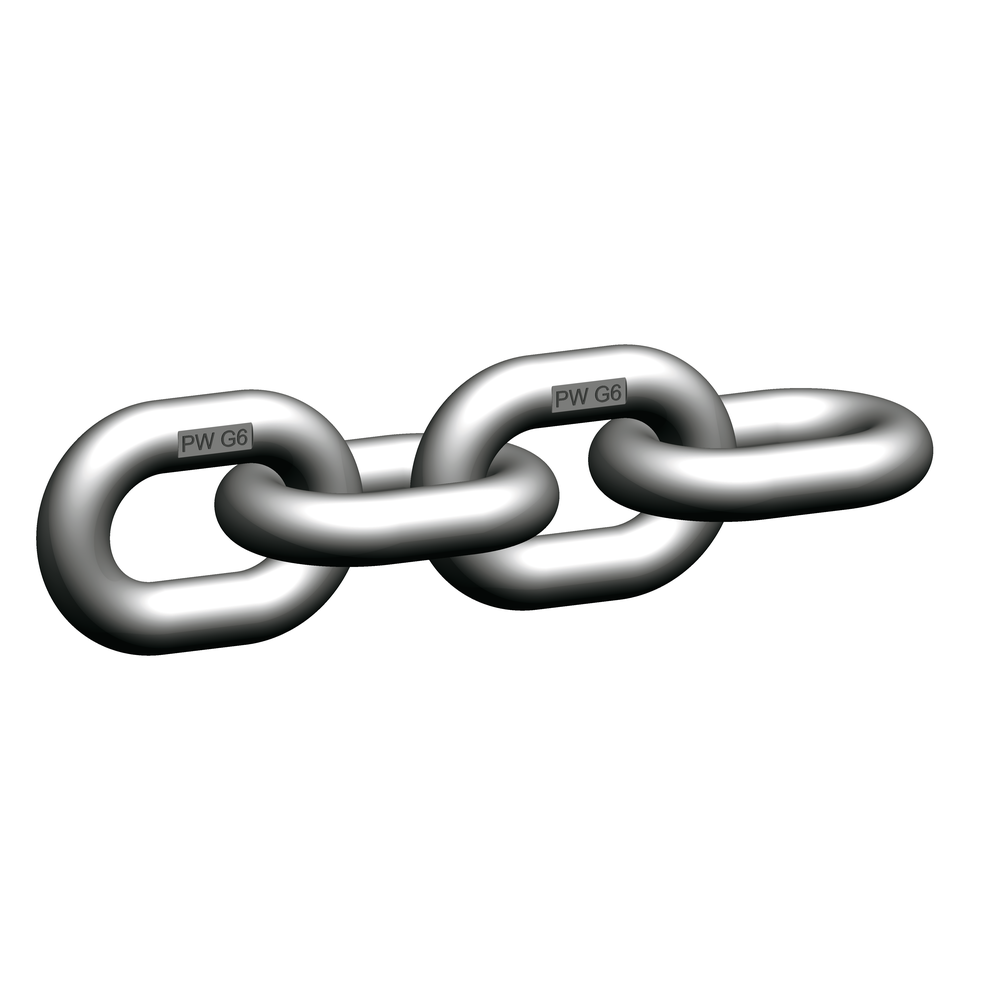

Stainless steel lifting chain, electrically welded and stamped, guaranteed compatible with Connex CWI connectors.

Standard: Similar DIN 5687-1

The WOX chain is particularly suited for use in water and wastewater applications. It can also be used in connection with chemicals and food products; however, restrictions will apply.

Material: 1.4404 (AISI 316L).
Marking: According to standard
Finish: Brightly polished.
Standard: EN 818-2

Safety factor: 4:1
Grade: 6

Chain WOX Stainless Grade 6 - Short Link

Select a row from the table below, then click the add to quote button

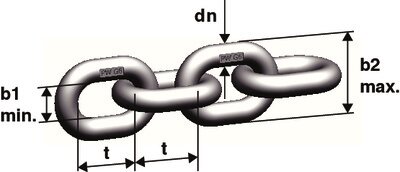

Part Code	Code	Diameter mm	WLL ton	Min. breaking force kN	MBL ton	Nominal dia. dn mm	Inside width b1 min mm	Outside width b2 max. mm	t mm	Weight kg/m
11.6337931	WOX 4-6	4	0.4	16	1.6	4	5,8	14,8	12	0.4
11.6338094	WOX 5-6	5	0.63	25	2.6	5	7,5	18,5	15.1	0.61
11.6338110	WOX 6-6	6	0.9	37.5	3.8	6	8	21,5	18	0.88
11.6338113	WOX 7-6	7	1.25	50	5.1	7	9,5	25,2	21	1.19
11.6338116	WOX 8-6	8	1.6	63	6.4	8	10,8	28,6	24	1.53
11.6339568	WOX 10-6	10	2.5	100	10.2	10	13,5	36,0	30	2.4
11.6339904	WOX 13-6	13	4.25	170	17.3	13	17,5	46,8	39	4.05
11.6340205	WOX 16-6	16	6.3	250	25.5	16	21,5	57,6	48	6
11.6383501	WOX 20-5*	20	8	314	32	20	27	72	60	9.29
11.6392200	WOX 26-4+**	26	12	471	48	26	35	93,6	78	16.2

* WOX 20-5 is grade 5
** WOX 26-4+ is grade 4+

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD

Download
