NEO HOT INDUSTRIAL PERMANENT MAGNET

The Neo HOT permanent lifting magnet is designed for a long life span even in the most demanding operations at working temperatures up to 180°C. Its design makes it possible to handle flat and round load profiles. The high lifting capacity is achieved by using a double magnetic circuit of strong neodymium magnets.

The EASY SWITCH design provides safe magnet switching. Operation of the magnet is very easy and can be done with just one hand. Emphasis is also placed on safety for the Neo Hot permanent lifting magnet: Testing is carried out by simulation of conditions in real operation, including the Air Gap Test. Even through the air gap, the achieved safety factor of this magnet (based on break-away test) is 3+. In other words, the maximum theoretical lifting capacity is equal to more the three times the nominal capacity.

The HOT series is a special design of permanent Neo lifting magnet intended for handling hot materials – burn parts, forgings, tools, workpieces, sheets, profiled sections, tubes, etc. It is noted for its high resistance when operated in difficult conditions and it makes it possible to handle loads at a temperature of up to 180 °C.

Advantages:

  • Easy Switch control – the lifting magnet can be switched on and off easily, quickly, and safely.
  • High resistance allows to operate the magnet in difficult conditions at temperatures up to 180 °C
  • The double magnetic circuit with strong BUX design neodymium magnets
  • BUX design - compact body with only two recessed screws
  • It has a low weight while retaining a high lifting capacity
  • 5-year warranty for the magnetic systém
  • Marking: According to standard
  • Temperature range: max. 180°C.
  • Standard: EN 13155
  • Safety factor: 3:1
Select a row from the table below, then click the add to quote button
Part Code Code WLL
ton
Ø of eye
mm
Ø min / max
mm
WLL round materials
t
W
mm

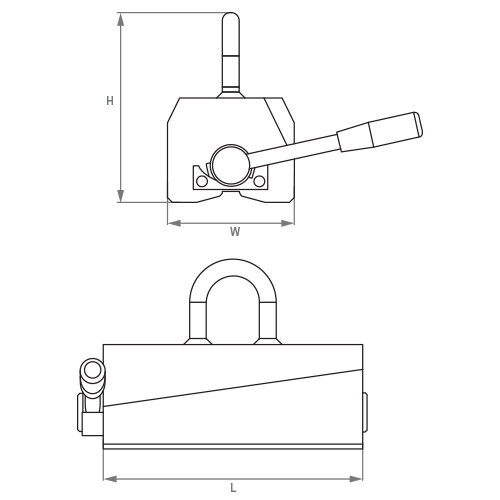

L
mm
H
mm
Weight
kg
CAD
16.45LH30PENOV2125 NEO H 125 0.13 10 40/100 0,065 60 93 120 3
16.45LH30PENOV2250 NEO H 250 0.25 16 60/200 0,15 100 152 180 10
16.45LH30PENOV2500 NEO H 500 0.5 20 65/270 0,3 120 246 180 21
16.45LH30PENOV2100 NEO H 1000 1 20 100/300 0,5 146 306 236 40
16.45LH30PENOV2200 NEO H 2000 2 20 150/350 1 165 478 273 90

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
