Steel Wire Rope PVC-coated 6x19M-WSC
Product information
A galvanized rope equipped with a Wire Strand Core (WSC) and has a PVC-coating. It can be a good choice for basic lifting applications such as lifting slings, security rope in studios/theaters premises, etc.
The PVC-coating is UV stabilized which makes it suitable for longterm outdoor use and it is fully compliant with REACH Directive 1907/2006.

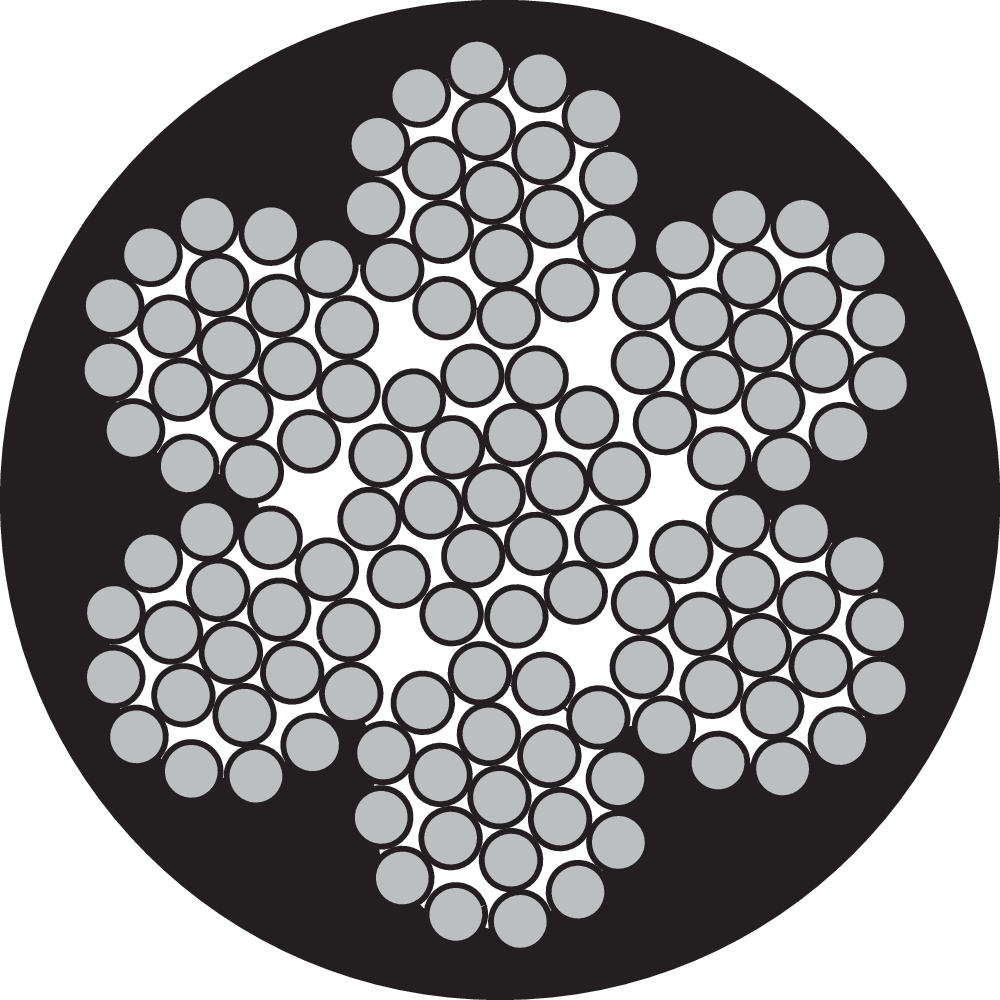

- Rope construction: 6x19-WSC
- Marking: According to standard
- Temperature range: -30°C up to +70°C
- Finish: PVC-coated, see table for colour
-
Standard:
EN 12385-4
except from coating
- Fill factor: 0.53
-
General use
-
Slings
Product FAQ
What surface finish and tensile strength does this steel wire rope have?
This steel wire rope has a Galvanized and is manufactured with a tensile strength of 1770, 1960 N/mm².The galvanized coating provides corrosion protection through a zinc layer, making the rope suitable for outdoor use and humid operating conditions.
Does this steel wire rope have any special design or performance features?
This steel wire rope features internal plastic filling, which improves lubrication retention, reduces internal wire friction, and enhances service life under dynamic loading conditions.
What is the construction, core type, and lay of this steel wire rope?
This steel wire rope is constructed with 6 strands.
It is manufactured with a fibre core, which provides increased flexibility. Fibre core constructions are suitable for applications involving frequent bending over sheaves and drums where hig
It is manufactured with an ordinary right-hand lay (sZ), providing a balanced combination of flexibility, wear resistance, and stable handling. This is the most commonly used lay for general
