Steel Wire Rope PVC-coated 6x7-WSC Stainless
Product information
A stainless rope equipped with a Steel (WSC) and has a PVC-coating. It can be used for various applications such as locking rope, signaling devices, etc but not for lifting.
The PVC-coating is UV stabilized which makes it suitable for longterm outdoor use and it is fully compliant with REACH Directive 1907/2006.

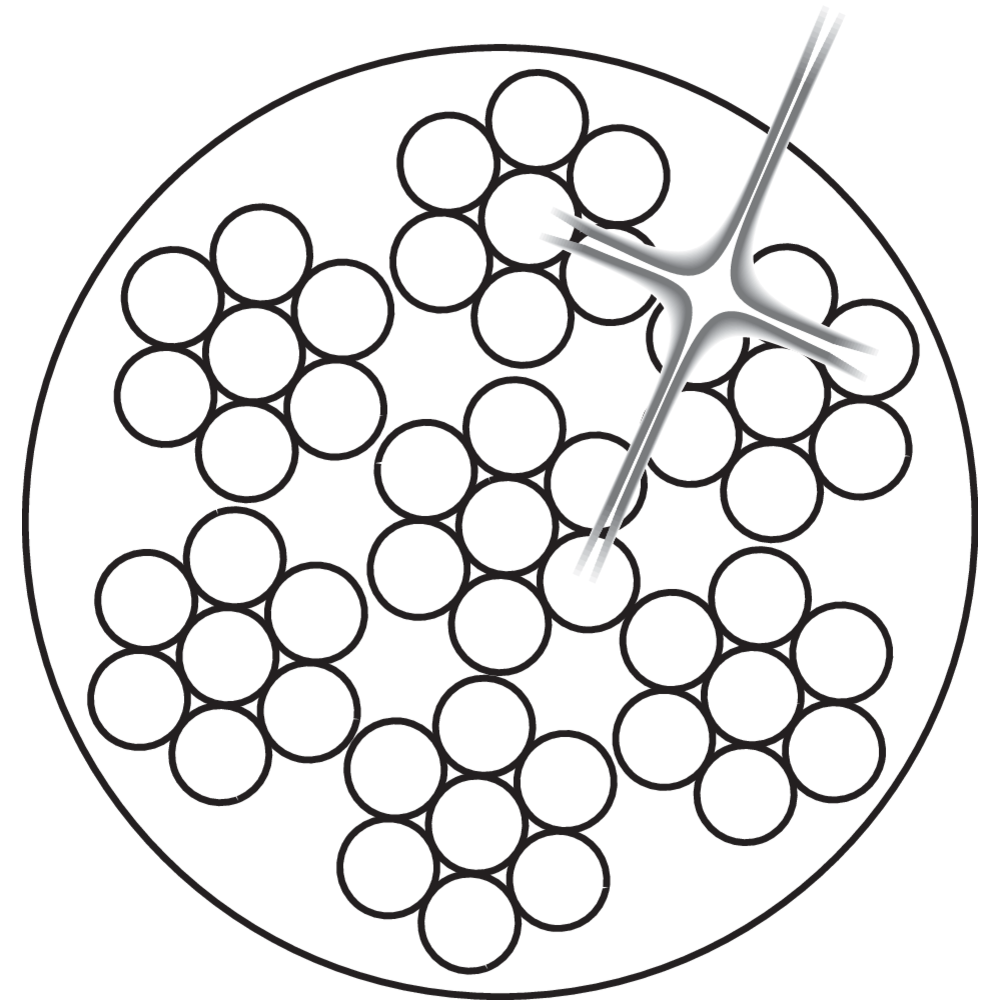

- Rope construction: 6x7-WSC
- Material: AISI 316 / EN 1.4401
- Marking: According to standard
- Temperature range: -30°C up to +70°C
- Finish: PVC-coated, see table for colour
-
Standard:
EN 12385-4
except material and coating - Note: Peel off coating at end when making any end fittings such as clamping ferrules etc
- Fill factor: 0,55
-
General use
Product FAQ
What surface finish and tensile strength does this steel wire rope have?
This steel wire rope has a Stainless and is manufactured with a tensile strength of 1570 N/mm².LithuStainless steel provides excellent resistance to corrosion in aggressive environments such as marine, chemical, or hygienic applications.
Does this steel wire rope have any special design or performance features?
This steel wire rope features internal plastic filling, which improves lubrication retention, reduces internal wire friction, and enhances service life under dynamic loading conditions.
What is the construction, core type, and lay of this steel wire rope?
This steel wire rope is constructed with 6 strands.
It is manufactured with a steel core, offering higher structural stability, improved resistance to crushing, and reliable performance under heavy loads and multi-layer winding conditions.
It is manufactured with an ordinary right-hand lay (sZ), providing a balanced combination of flexibility, wear resistance, and stable handling. This is the most commonly used lay for general
