Spiral Rope Compacted 1x19 Stainless

  • Not for lifting
  • Right spiral strand
  • Stainless steel
  • Compacted strands

Low Elongation - giving significantly lower stretch than conventional strand. The requirement to prestress the strand is virtually eliminated due to the excellent Modulus Value of the Rope more than 30% higher than Conventional Strand.

Exceptional Breaking Force - Incorporating strand compaction gives a breaking load approximately 30% higher than conventional strand.

Excellent Wear Characteristics - When subject to wearing forces, the smooth surface of the compacted Strand ensures that damage is minimised and lifetime maximised.

Visually Attractive - The compaction Process shapes the strand to give a smooth exterior giving an attractive appearance in Yachting and Architectural applications.

Maximum Corrosion Resistance - The High Tensile wire used in the strand is 316S31 material in a fully austenitic condition to give optimum resistance to corrosion.



  • Features: For use on Yacht Rigging and stays.

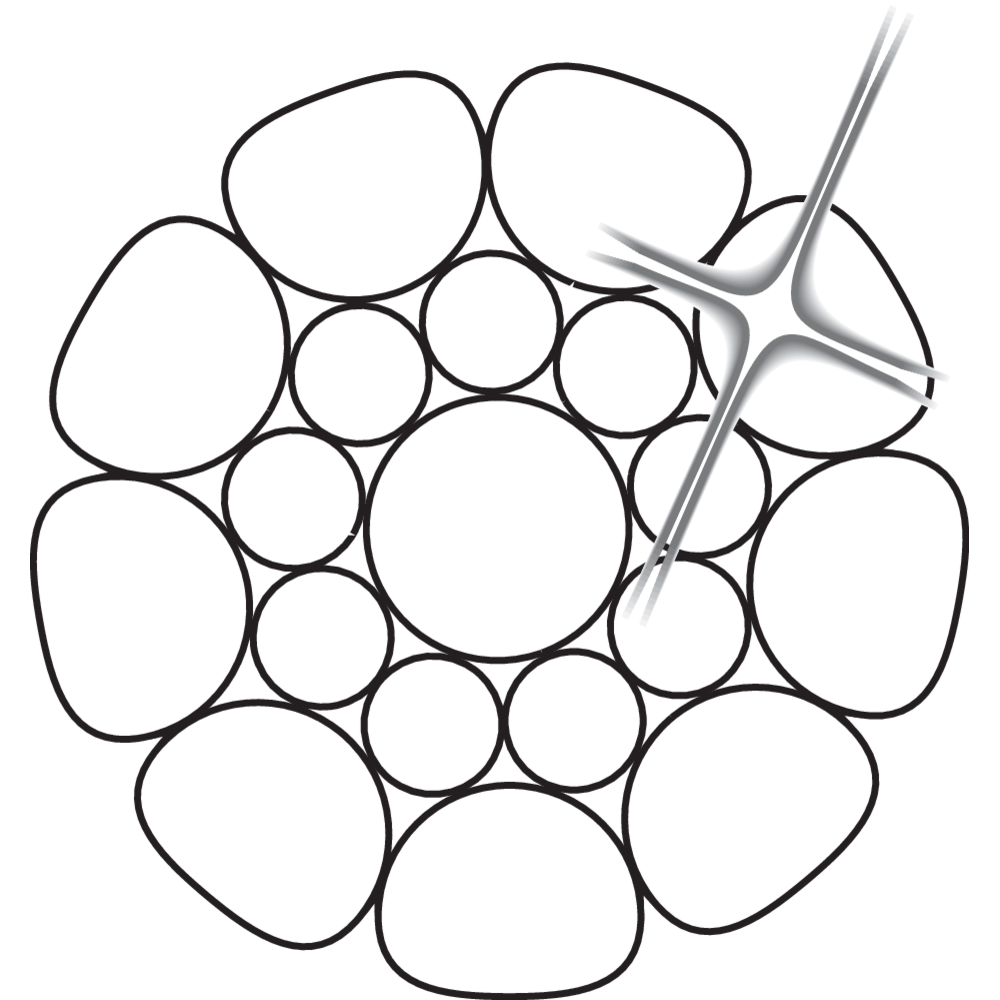

  • Rope construction: 1x19 compacted
  • Material: AISI 316 / EN 1.4401
  • Temperature range: -40°C up to +200°C
  • Fill factor: 0,89
  • Stay rope Stay rope
