• Not for lifting
  • Ordinary right hand lay
  • Stainless
  • Not to be used with swivel

A stainless rope equipped with a Steel (WSC) and has a PVC-coating. It can be used for various applications such as locking rope, signaling devices, etc but not for lifting.

The PVC-coating is UV stabilized which makes it suitable for longterm outdoor use and it is fully compliant with REACH Directive 1907/2006.

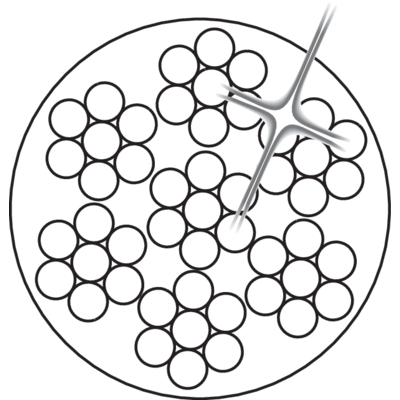

  • Rope construction: 6x7-WSC
  • Material: AISI 316 / EN 1.4401
  • Marking: According to standard
  • Temperature range: -30°C up to +70°C
  • Finish: PVC-coated, see table for colour
  • Standard: EN 12385-4
    except material and coating
  • Fill factor: 0,55
  • General use Wire for general use
PVC Stainless steel AISI 316 6x7-WSC, 7x7 and 7x19 wire rope core structure
Select a row from the table below, then click the add to quote button
Part Code Rope diameter
mm
Inner diameter
mm
Tensile strength
N/mm2
Steel Area
mm²
Min. breaking force
kN
Colour Weight
01.S60049043D 4 3 1 570 3,89 5,48 transparent 4,2
01.S60049054D 5 4 1 570 6,91 9,75 transparent 7,3
01.S60049064D 6 4 1 570 6,91 9,75 transparent 8,2
01.S61049064D 6 4 1 570 6,91 9,75 white 8,2
01.S60049084D 8 4 1 570 6,91 9,75 transparent 10,2
01.S61049075D 7 5 1 570 10,8 15,2 white 12,1
01.S61049085D 8 5 1 570 10,8 15,2 white 13,5
01.S61049096D 9 6 1 570 15,6 21,9 white 18,5
* Other dimensions and colour on request.
