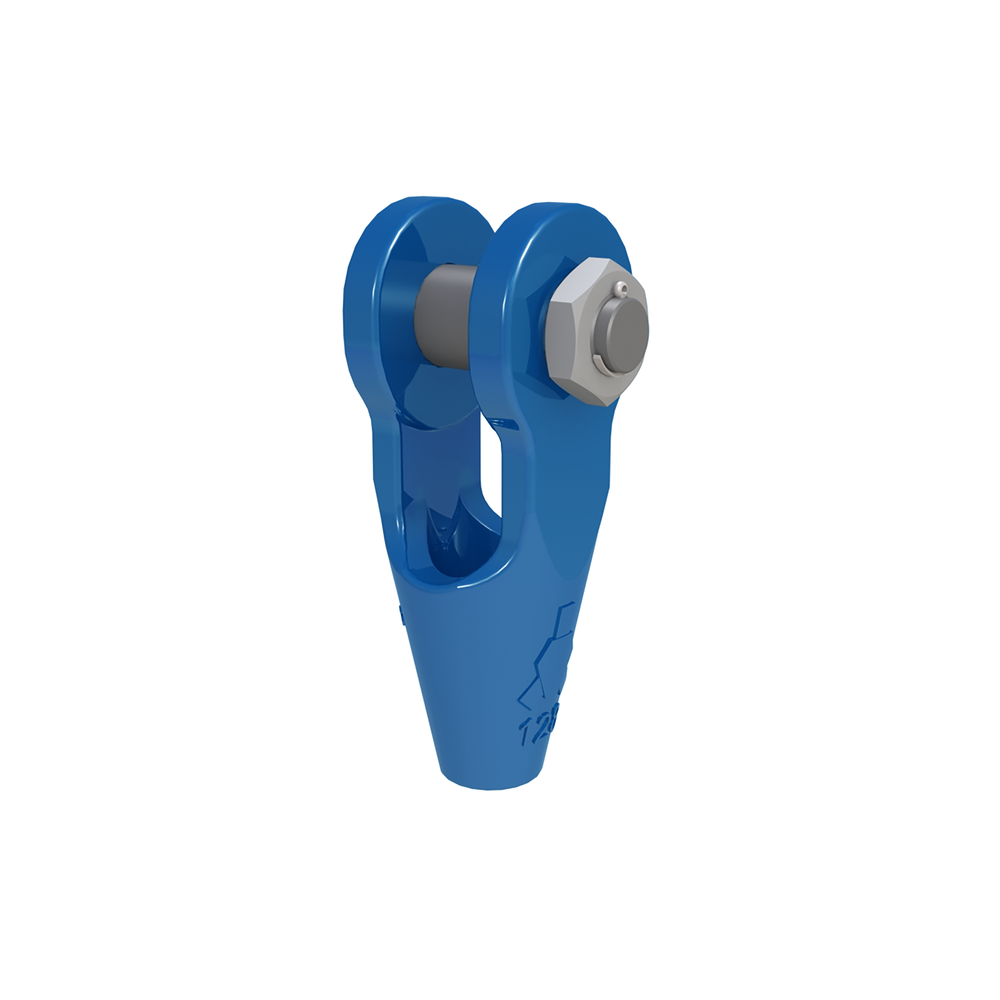

Quenched and tempered cast steel range steel wire rope sockets for embedment with cast compound with mechanical values (Charpy-V > 42 Joule /-20°C) for tough and low temperature use. For wire rope diameter 6 - 203 mm (1/4” - 8”).

2 surface finishes available:

  • Model OSS B : blue painted. (OSS 196 - OSS 100 only hot dipped galvanized)
  • Model OSS BGALV : Hot dipped galvanized.

Features:

  • Bolt securing by nut and cotter pin.
  • All spelter sockets have a 100% efficiency.
  • Also avaiable with pin + cotter pin ( type OSS P )
  • Material: Quenched and tempered cast steel
  • Marking: Size, wire rope diameter and batch or serial number.
  • Temperature range: From - 40°C up to +110°C - 100% capacity range.
  • Finish: OSS B blue painted - OSS BGALV : Hot dipped galvanized.
  • Note: For intermediate rope diameter select fittings with nearest following size.
  • Warning: Compare the spelter's and the wire rope's minimum breaking load.
Select a row from the table below, then click the add to quote button

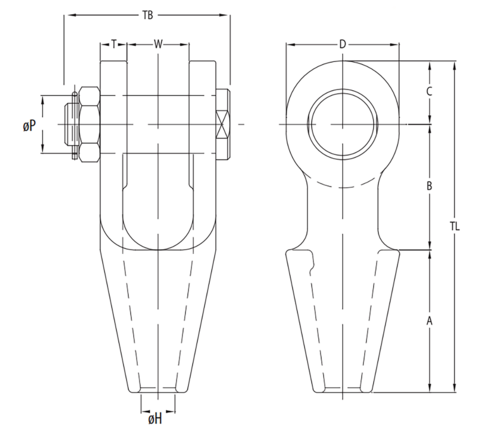

Code Rope diameter
mm
MBL
ton
ton
Finish Strand Ø
mm
A
mm
B
mm
C
mm
D
mm
Ø H
mm
Ø P
mm
T
mm
TL
mm
TB
mm
W
mm
Weight
kg
OSS196B 6-7 8 Painted - 50 40 19 34 9 16 9 109 62 19 0,5
OSS197B 8-10 12 Painted - 57 45 22 42 13 20 11 124 75 21 0,8
OSS198B 11-13 20 Painted - 64 51 27 50 15 25 12 142 80 25 1,1
OSS199B 14-16 25 Painted 13 76 63 32 58 18 30 14 171 96 32 1,9
OSS100B 18-19 40 Painted 14-16 89 76 40 70 22 35 16 205 107 38 3,1
OSS104BGALV 20-22 55 Galvanized 18-19 101 89 45 80 25 41 19 235 123 44 4,7
OSS104B 20-22 55 Painted 18-19 101 89 45 80 25 41 19 235 123 44 4,7
OSS108B 23-26 75 Painted 20-22 114 101 60 104 29 51 22 275 138 51 8
OSS108BGALV 23-26 75 Galvanized 20-22 114 101 60 104 29 51 22 275 138 51 8
OSS111B 27-30 90 Painted 23-26 127 114 65 114 33 57 25 306 160 57 12
OSS111BGALV 27-30 90 Galvanized 23-26 127 114 65 114 33 57 25 306 160 57 12
OSS115BGALV 31-36 125 Galvanized 27-28 139 127 72 126 39 63 28 338 165 63 16
OSS115B 31-36 125 Painted 27-28 139 127 72 126 39 63 28 338 165 63 16
OSS118BGALV 37-39 150 Galvanized 30-32 152 162 80 142 42 70 30 394 199 76 23
OSS118B 37-39 150 Painted 30-32 152 162 80 142 42 70 30 394 199 76 23
OSS120B 40-42 170 Painted 33-35 165 165 88 156 45 76 33 418 209 76 28
OSS120BGALV 40-42 170 Galvanized 33-35 165 165 88 156 45 76 33 418 209 76 28
OSS125B 43-80 225 Painted 36-40 191 178 100 176 52 89 39 469 237 89 43
OSS125BGALV 43-80 225 Galvanized 36-40 191 178 100 176 52 89 39 469 237 89 43
OSS128B 49-54 280 Painted 42-45 216 228 108 194 59 95 45 552 263 101 62
OSS128BGALV 49-54 280 Galvanized 42-45 216 228 108 194 59 95 45 552 263 101 62
OSS130B 55-60 360 Painted 46-48 229 254 120 210 64 108 53 603 298 113 90
OSS130BGALV 55-60 360 Galvanized 46-48 229 254 120 210 64 108 53 603 298 113 90
OSS132B 61-68 425 Painted 50-54 248 273 133 236 75 121 60 654 330 127 123
OSS132BGALV 61-68 425 Galvanized 50-54 248 273 133 236 75 121 60 654 330 127 123
OSS135BGALV 69-75 460 Galvanized 56-62 279 279 138 240 81 127 73 696 359 133 159
OSS135B 69-75 460 Painted 56-62 279 279 138 240 81 127 73 696 359 133 159
OSS138B 76-80 560 Painted 64-67 305 286 146 252 88 133 76 737 380 146 190
OSS138BGALV 76-80 560 Galvanized 64-67 305 286 146 252 88 133 76 737 380 146 190
OSS140B 81-86 625 Painted 69-76 330 298 160 290 92 140 79 788 397 159 230
OSS140BGALV 81-86 625 Galvanized 69-76 330 298 160 290 92 140 79 788 397 159 230
OSS142BGALV 87-93 720 Galvanized 78-86 356 318 178 320 99 152 83 852 419 171 287
OSS142B 87-93 720 Painted 78-86 356 318 178 320 99 152 83 852 419 171 287
OSS144B 94-102 875 Painted 88-96 381 343 190 350 108 178 89 914 451 191 377
OSS144BGALV 94-102 875 Galvanized 88-96 381 343 190 350 108 178 89 914 451 191 377
OSS146BGALV 108-115 1 200 Galvanized 98-110 450 480 215 400 129 195 100 1 145 506 205 548
OSS146B 108-115 1 200 Painted 98-110 450 480 215 400 129 195 100 1 145 506 205 548
OSS150BGALV 120-130 1 400 Galvanized 112-124 500 500 250 450 147 220 110 1 250 546 225 766
OSS150B 120-130 1 400 Painted 112-124 500 500 250 450 147 220 110 1 250 546 225 766
OSS155B 135-140 1 600 Painted 125-132 540 497 263 480 157 240 140 1 300 623 230 1 081
OSS155BGALV 135-140 1 600 Galvanized 125-132 540 497 263 480 157 240 140 1 300 623 230 1 081
OSS160B 142-153 2 000 Painted 133-143 585 505 275 500 171 255 140 1 365 655 250 1 200
OSS160BGALV 142-153 2 000 Galvanized 133-143 585 505 275 500 171 255 140 1 365 655 250 1 200
OSS165B 154-165 2 220 Painted 144-154 630 530 300 550 185 275 150 1 460 685 260 1 474
OSS165BGALV 154-165 2 220 Galvanized 144-154 630 530 300 550 185 275 150 1 460 685 260 1 474
OSS170B 166-178 2 500 Painted 155-166 680 570 310 570 199 295 150 1 560 715 280 1 655
OSS170BGALV 166-178 2 500 Galvanized 155-166 680 570 310 570 199 295 150 1 560 715 280 1 655
OSS175B 180-191 2 800 Painted 167-179 725 600 325 600 213 310 155 1 650 750 300 1 956
OSS175BGALV 180-191 2 800 Galvanized 167-179 725 600 325 600 213 310 155 1 650 750 300 1 956
OSS180B 192-204 3 200 Painted 180-191 775 620 345 640 229 330 160 1 740 790 320 2 303
OSS180BGALV 192-204 3 200 Galvanized 180-191 775 620 345 640 229 330 160 1 740 790 320 2 303
