Ropeblock

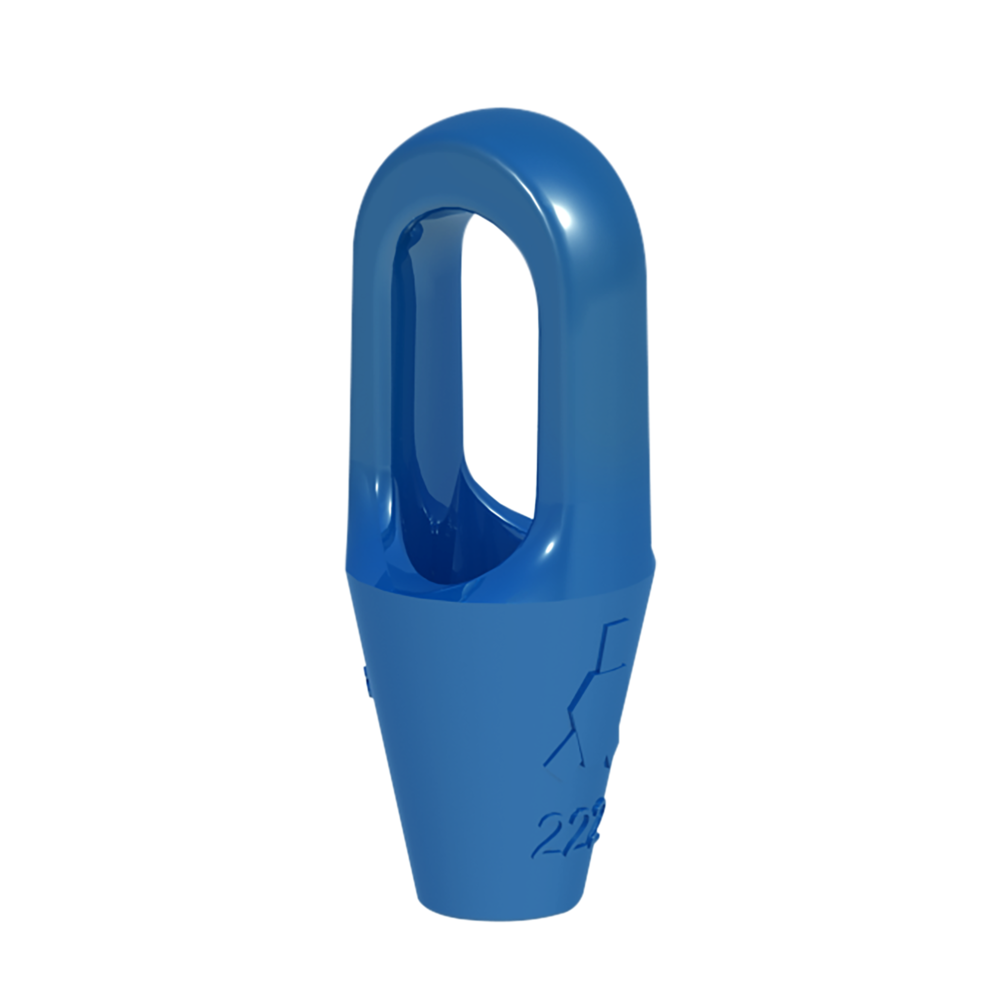

The Ropeblock closed spelter socket CSS designed with mechanical values (Charpy-V > 42 joule / - 20° C) for though and low temperature use.
All sockets have a 100% efficency on the MBL of the steel wire rope but are limited to the MBL of the socket.

The CSS sockets are Type Approved by DNV and Lloyd’s Register.

CSS 296 until CSS 201 only available with hot dipped galvanized finish.

  • Material: Quenched and tempered cast steel.
  • Marking: According to standard, CE-marked
  • Temperature range: - 40°C to + 110°C - Use at higher temperatures possible with reduction of WLL.
  • Finish: Hot dipped Galvanized (G) or painted blue (P).
  • Standard: EN 10204
Select a row from the table below, then click the add to quote button

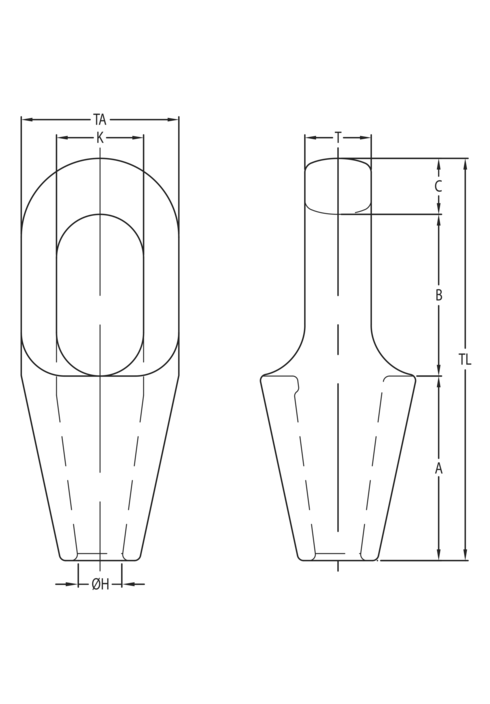

Part Code Rope diameter
mm
MBL
ton
Strand Ø
mm
TL
mm
TA
mm
A
mm
B
mm
C
mm
Ø H
mm
K
mm
T
mm
Weight
kg
10.10CSS296.GAL 6-7 8 101 37 50 40 11 9,1 22 13 0,3
10.10CSS297.GAL 8-10 12 119 43 57 48 14 12,6 25 18 0,5
10.10CSS298.GAL 11-13 20 140 51 64 59 17,5 14,6 30 23 0,7
10.10CSS299.GAL 14-16 25 13 162 67 76 65 21 18,1 36 26 1,4
10.10CSS200.GAL 18-19 40 14-16 194 76 89 78 27 21,9 42 32 2,2
10.10CSS201.GAL 20-22 55 18-19 224 92 101 90 33 24,9 47 38 3,8
10.10CSS204.GAL 23-26 75 20-22 253 104 114 103 36 28,8 57 44 5,4
10.10CSS207.GAL 27-30 90 23-26 282 114 127 116 39 32,9 65 51 7
10.10CSS212.GAL 31-36 125 27-28 312 126 139 130 43 39,2 71 57 10
10.10CSS215.GAL 37-39 150 30-32 358 136 152 155 51 42,5 81 63 13
10.10CSS217.GAL 40-42 170 33-35 390 146 165 171 54 45,5 83 70 17
10.10CSS219.GAL 43-48 225 36-40 443 171 190 198 55 52,5 93 76 26
10.10CSS222.GAL 49-54 280 42-45 502 193 216 224 62 59,1 100 82 37
10.10CSS224.GAL 55-60 360 46-48 548 216 228 247 73 65,1 112 92 50
10.10CSS226.GAL 61-68 425 50-54 257 241 248 270 79 73,4 140 102 66
10.10CSS227.GAL 69-75 460 56-62 644 273 279 286 79 79,4 159 124 91
10.10CSS228.GAL 76-80 560 64-67 696 292 315 298 83 88,2 171 133 117
10.10CSS229.GAL 81-86 625 69-76 743 311 330 311 102 92,4 184 146 125
10.10CSS230.GAL 87-93 720 78-86 788 330 356 330 102 98,8 197 159 176
10.10CSS231.GAL 94-102 875 88-96 845 362 381 356 108 107,8 216 178 228
10.10CSS233.GAL 108-115 1 200 98-110 1 000 405 450 425 125 129,5 235 190 323
10.10CSS240.GAL 120-130 1 400 112-124 1 150 450 500 525 125 147,1 260 200 447
10.10CSS245.GAL 135-140 1 600 125-132 1 185 520 540 495 150 153,9 290 220 645
10.10CSS250.GAL 142-153 2 000 133-143 1 285 545 585 530 170 171,1 305 240 741
10.10CSS255.GAL 154-165 2 220 144-154 1 370 575 630 565 175 185,1 330 250 860
10.10CSS260.GAL 166-178 2 500 155-166 1 450 595 680 590 180 199,1 330 270 985
10.10CSS265.GAL 180-191 2 800 167-179 1 535 625 725 620 190 213 350 290 1 183
10.10CSS270.GAL 192-204 3 200 180-191 1 635 690 775 650 210 228,5 395 305 1 487
