A revolutianary evolution of the Fast Connector Socket. This socket line has the smallest connector diameter available inthe market today, and still meets the respective EN standards. It has been designed to go through the smallest spaces in a crane reeving system.
This unique patent pending design allows refitting by pouring in the field, saving valuable down time compared to swaging techniques.
Available with both regular and spin resistant (SR) connector.
The standard finish of our sockets is blue. Hot dipped galvanized is also available.
Standard: EN 10204-2.1 declaration of conformity / EN 10204-3.1 material certificate.
Option: hot dip galvanized.
- Material: Quenched and tempered cast steel.
Currently this product cannot be added to an online quote. Please contact us directly for enquires.
|

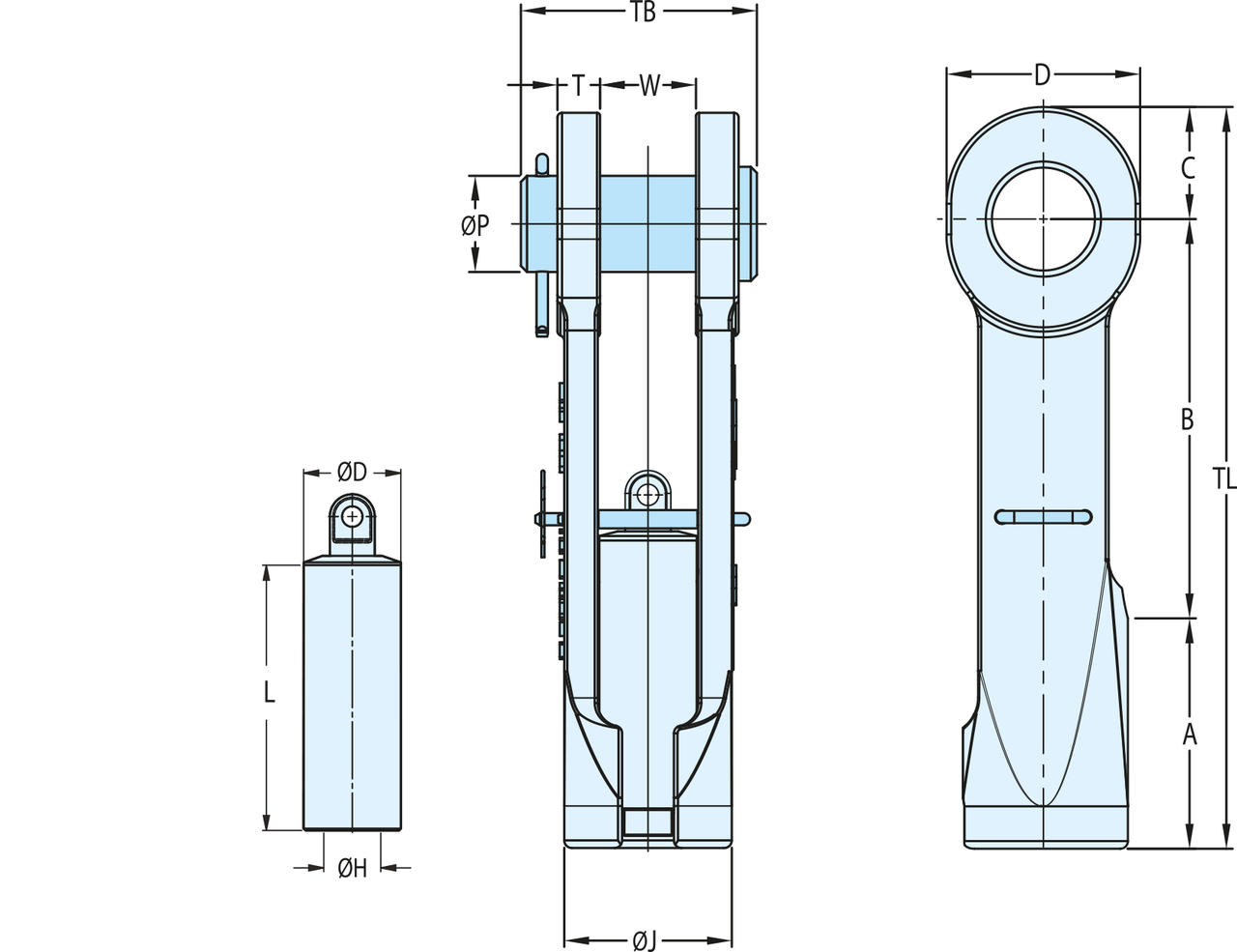

Art No
|
Code
|
MBL
|
Wire Ø
|
A
|
B
|
C
|
ØH
|
ØP
|
T
|
W
|
D
|
ØD
|
ØJ
|
L
|
TB
|
TL
|
Weight
|
||||||||||||
|
Galvanized
|
|
tons
|
mm
|
mm
|
|
|
|
|
|
|
|
|
|
|
|
|
kg
|
||||||||||||
|
10.10SCS902B.GAL
|
SCS 902 B
|
25
|
13-16
|
85
|
133
|
32
|
19
|
30
|
14
|
32
|
58
|
32
|
56
|
98
|
96
|
250
|
3,1
|
||||||||||||
|
10.10SCS903B.GAL
|
SCS 903 B
|
40
|
16-19
|
90
|
160
|
40
|
22
|
35
|
16
|
38
|
70
|
40
|
65
|
114
|
107
|
290
|
4,8
|
||||||||||||
|
10.10SCS904B.GAL
|
SCS 904 B
|
55
|
20-22
|
107
|
184
|
45
|
26
|
41
|
19
|
44
|
80
|
44
|
77
|
130
|
123
|
336
|
8
|
||||||||||||
|
10.10SCS905B.GAL
|
SCS 905 B
|
75
|
23-26
|
115
|
211
|
60
|
31
|
50
|
22
|
51
|
104
|
52
|
88
|
142
|
138
|
386
|
12
|
||||||||||||
|
10.10SCS906B.GAL
|
SCS 906 B
|
90
|
27-29
|
140
|
215
|
65
|
34
|
57
|
25
|
57
|
114
|
58
|
96
|
159
|
160
|
420
|
16
|
||||||||||||
|
10.10SCS907B.GAL
|
SCS 907 B
|
125
|
30-32
|
150
|
260
|
73
|
36
|
63
|
28
|
63
|
126
|
64
|
110
|
177
|
165
|
483
|
23
|
||||||||||||
|
10.10SCS908B.GAL
|
SCS 908 B
|
125
|
33-36
|
170
|
260
|
73
|
40
|
64
|
28
|
69
|
126
|
68
|
114
|
197
|
185
|
503
|
25
|
||||||||||||
|

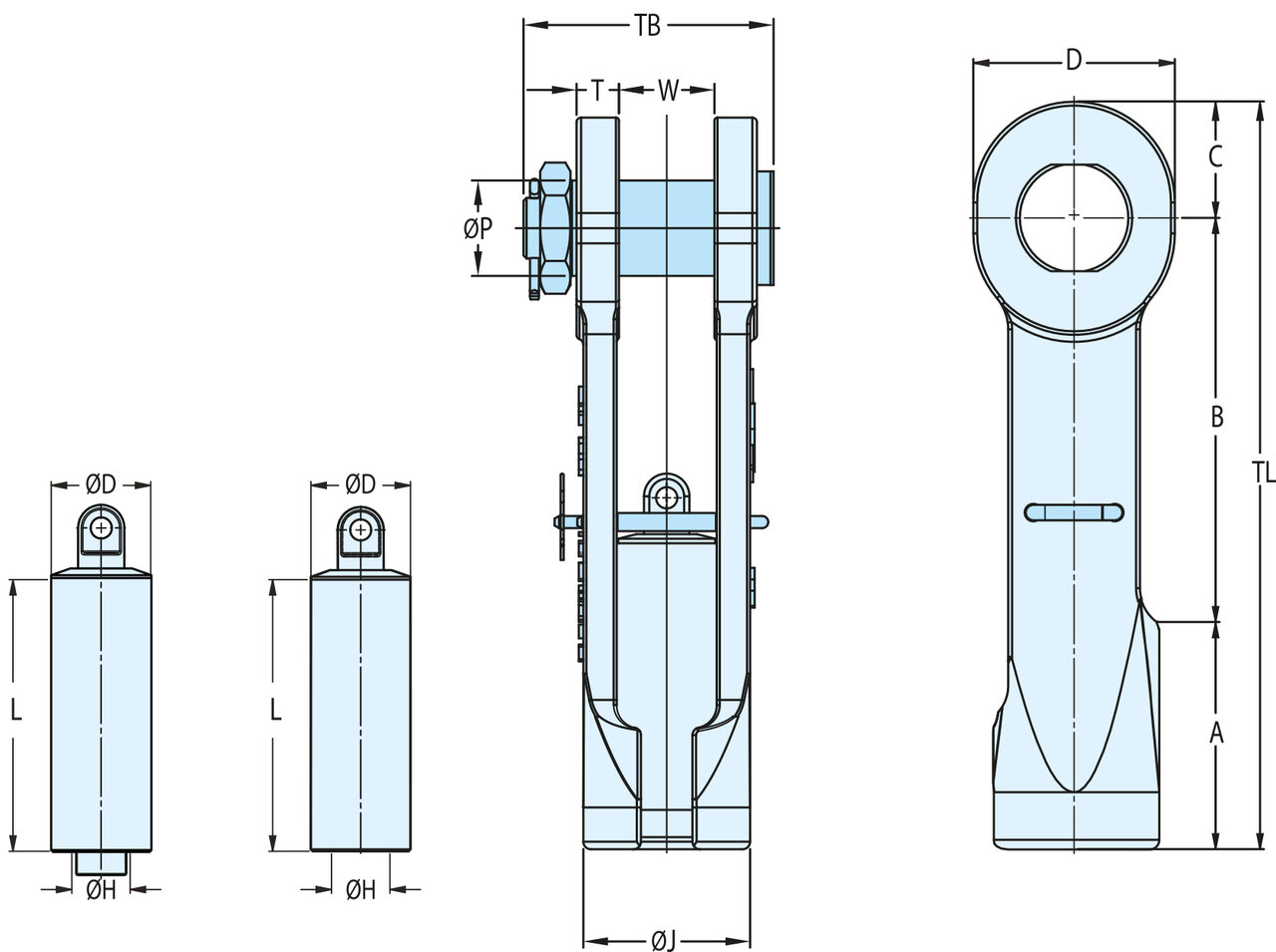

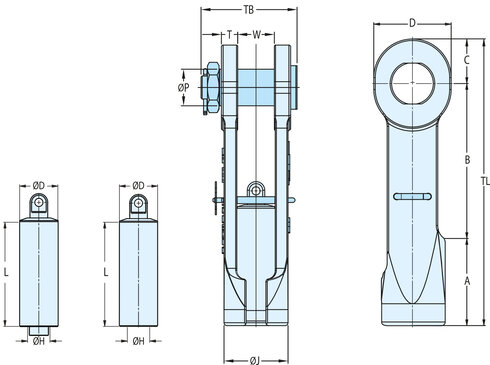

Art No
|
Code
|
MBL
|
Wire Ø
|
A
|
B
|
C
|
ØH
|
ØP
|
T
|
W
|
D
|
ØD
|
ØJ
|
L
|
TB
|
TL
|
Weight
|
||||||||||||
|
Galvanized
|
|
tons
|
mm
|
mm
|
|
|
|
|
|
|
|
|
|
|
|
|
kg
|
||||||||||||
|
10.10SCS902B.SR.GAL
|
SCS 902 B.SR
|
25
|
13-16
|
85
|
133
|
32
|
19
|
30
|
14
|
32
|
58
|
32
|
56
|
98
|
96
|
250
|
3,1
|
||||||||||||
|
10.10SCS903B.SR.GAL
|
SCS 903 B.SR
|
40
|
16-19
|
90
|
160
|
40
|
22
|
35
|
16
|
38
|
70
|
40
|
65
|
114
|
107
|
290
|
4,8
|
||||||||||||
|
10.10SCS904B.SR.GAL
|
SCS 904 B.SR
|
55
|
20-22
|
107
|
184
|
45
|
26
|
41
|
19
|
44
|
80
|
44
|
77
|
130
|
123
|
336
|
8
|
||||||||||||
|
10.10SCS905B.SR.GAL
|
SCS 905 B.SR
|
75
|
23-26
|
115
|
211
|
60
|
31
|
50
|
22
|
51
|
104
|
52
|
88
|
142
|
138
|
386
|
12
|
||||||||||||
|
10.10SCS906B.SR.GAL
|
SCS 906 B.SR
|
90
|
27-29
|
140
|
215
|
65
|
34
|
57
|
25
|
57
|
114
|
58
|
96
|
159
|
160
|
420
|
16
|
||||||||||||
|
10.10SCS907B.SR.GAL
|
SCS 907 B.SR
|
125
|
30-32
|
150
|
260
|
73
|
36
|
63
|
28
|
63
|
126
|
64
|
110
|
177
|
165
|
483
|
23
|
||||||||||||
|
10.10SCS908B.SR.GAL
|
SCS 908 B.SR
|
125
|
33-36
|
170
|
260
|
73
|
40
|
64
|
28
|
69
|
126
|
68
|
114
|
197
|
185
|
503
|
25
|
||||||||||||
|
|
SCS 912 B.SR
|
280
|
49-54
|
225
|
373
|
108
|
60
|
95
|
45
|
101
|
194
|
105
|
185
|
280
|
263
|
706
|
93
|
||||||||||||
