Home / Products / Steel wire ropes & accessories / Wire rope accessories / Thimbles / Stainless Steel Thimble

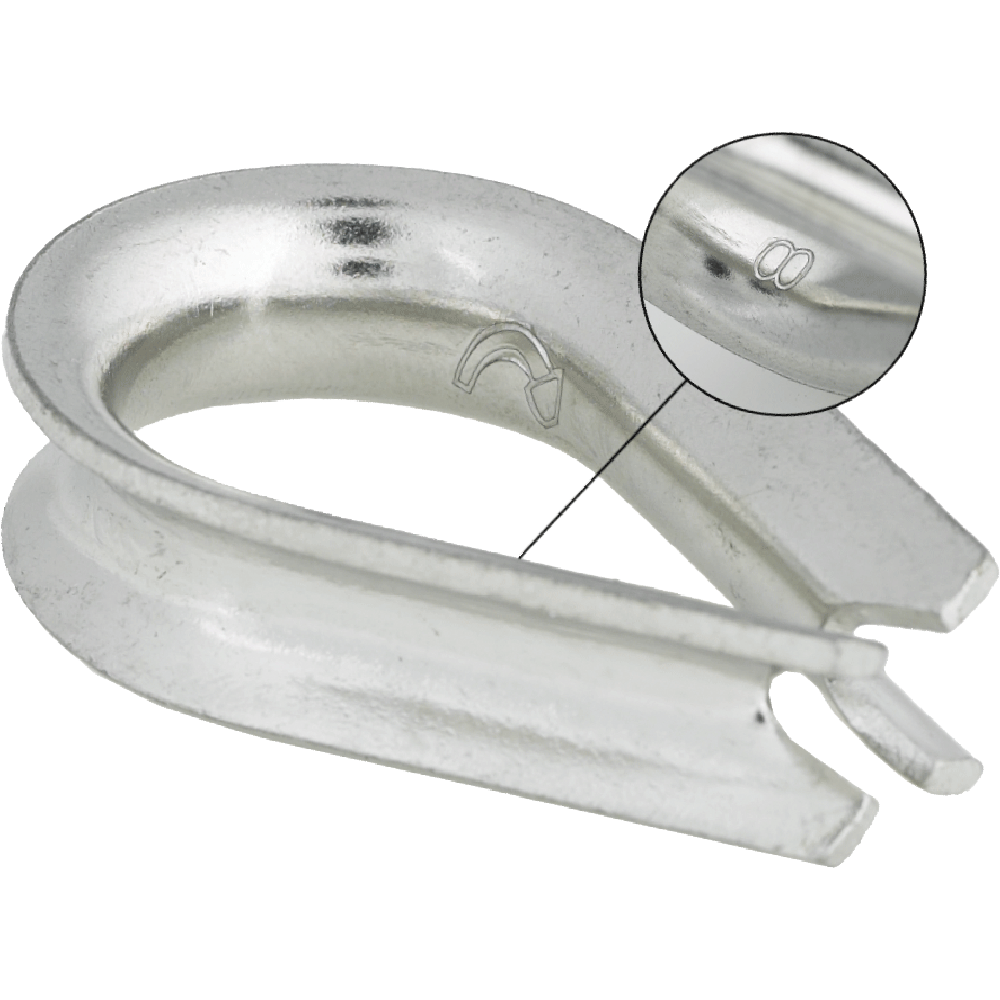

Pressed of profile steel. The first choice for harsh environment of the marine sector.

Material: Stainless acidproof steel AISI 316.
Finish: Polished

Select a row from the table below, then click the add to quote button

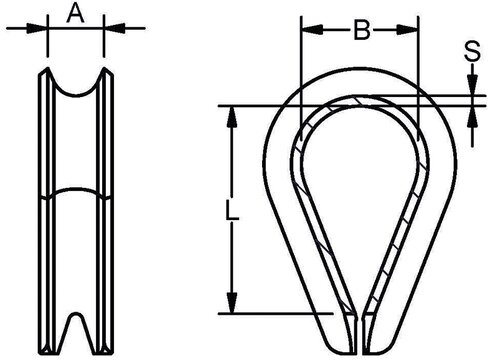

Part Code	Diameter mm	A mm	B mm	L mm	S mm	Weight kg/100pc
10.26110002	2	3	9	16	1,0	0.2
10.26110003	3	4	10	17	1,0	0.3
10.26110004	4	5	11	19	1,35	0.5
10.26110005	5	6	13	21	1,2	0.7
10.26110006	6	7	15	27	1,5	1.1
10.26110007	7	8	19	33	1,5	1.4
10.26110008	8	9	22	38	2,0	2.6
10.26110009	9	10	24	43	2,0	3.1
10.26110010	10	11	27	46	2,7	4.9
10.26110012	12	14	29	52	2,7	6.6
10.26110014	14	16	33	57	3,0	9
10.26110016	16	18	40	67	3,0	11.3
10.26110018	18	20	45	75	4,0	19
10.26110020	20	22	52	84	4,0	31.2
10.26110022	22	24	56	93	5,0	45.5
10.26110026	26	28	65	112	6,0	67
10.26110028	28	30	80	135	5,5	82
10.26110032	32	34	92	160	6,25	110
10.26110034	34	36	105	160	6,0	117
10.26110036	36	38	115	176	6,0	142
10.26110038	38	40	120	180	8,0	206
10.26110040	40	42	120	192	8,0	220
10.26110042	42	45	150	240	8,0	304

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
