Fits pin for open wire rope socket, boom pendant clevis and wedge socket.

Features: Greater protection against wear and deformation of the wire rope eye giving longer service life.
Material: Cast Ductile Iron.
Marking: According to standard, Manufacturer's symbol.
Standard: EN 13411-1

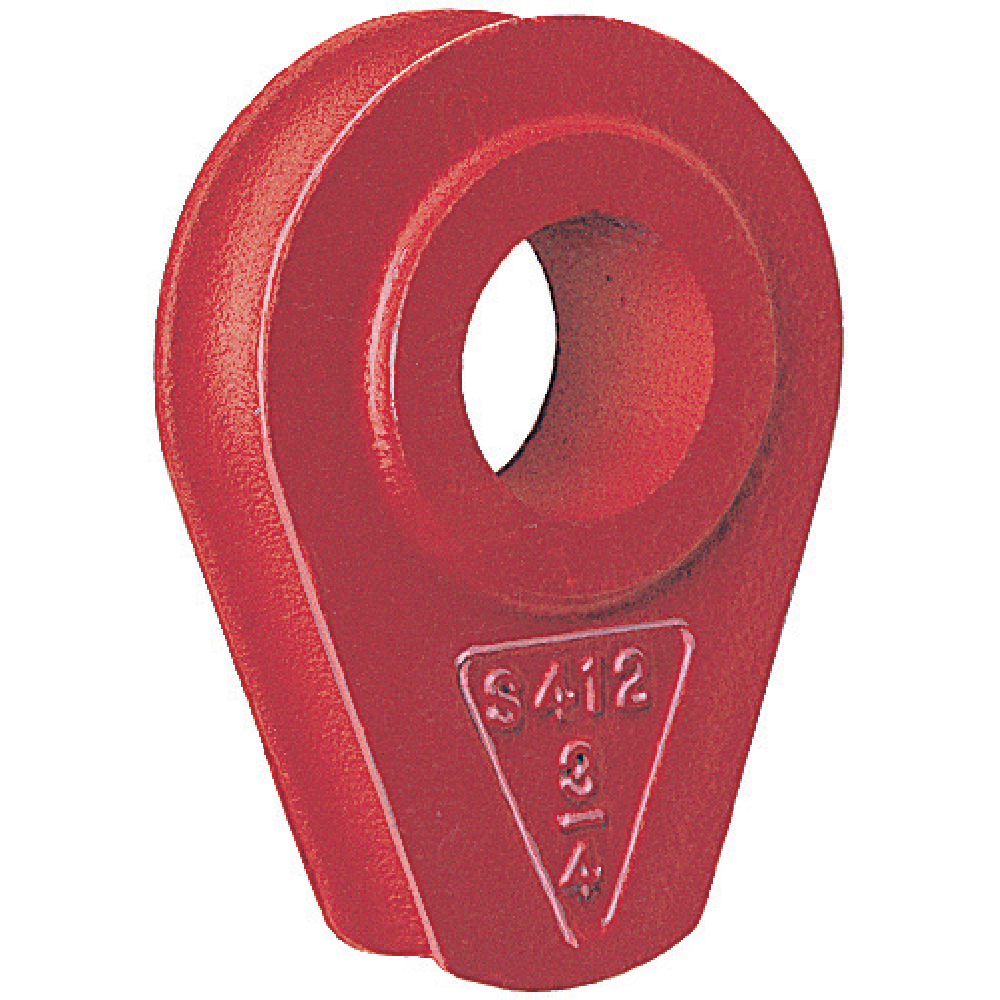

Solid Wire Rope Thimble Crosby S-412

Select a row from the table below, then click the add to quote button

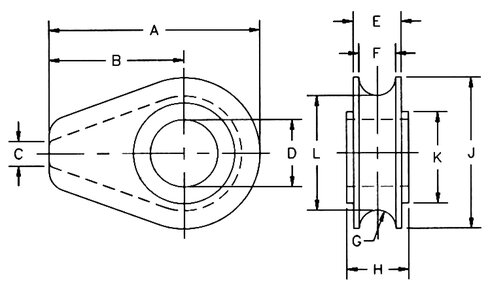

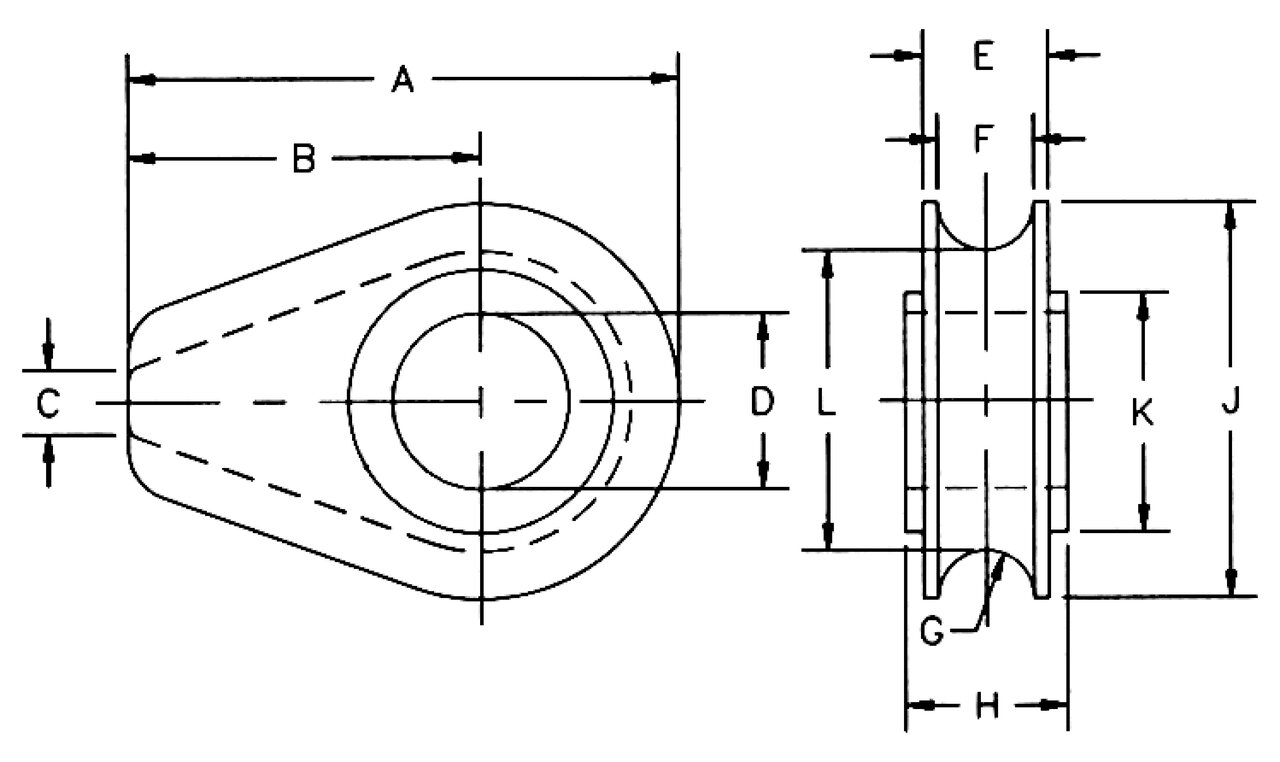

Part Code	Rope diameter mm	A mm	B mm	C mm	D mm	D tolerance	E mm	F mm	G mm	H mm	J mm	K mm	L mm	Weight	CAD
10.271037121	13	71,5	44,5	6,35	26,9	+-5%	19,1	14,2	7,1	22,4	54	41,4	39,6	0,28	-
10.271037149	16	119	76	9,65	33,3	+-4%	26,9	20,6	10,4	28,7	86	57	65	1	-
10.271037167	18-20	119	76	9,65	38,1	+-3%	26,9	20,6	10,4	35,1	86	57	65	1,05	-
10.271037201	24-26	154	97	12,7	54	+-3%	35,1	26,9	13,5	46	114	82,5	87,5	2,38	-
10.271037185	22	154	97	12,7	44,5	+-3%	35,1	26,9	13,5	41,4	114	82,5	87,5	2,47	-
10.271037229	28-30	184	116	16	60,5	+-2%	44,5	33,3	16,8	52,5	137	98,5	103	4,21	-
10.271037247	32-35	184	116	16	67	+-2%	49,3	38,9	19,8	58,5	137	98,5	105	4,45	-

The D measurement is the “raw” D and can be drilled to a larger D on request.
