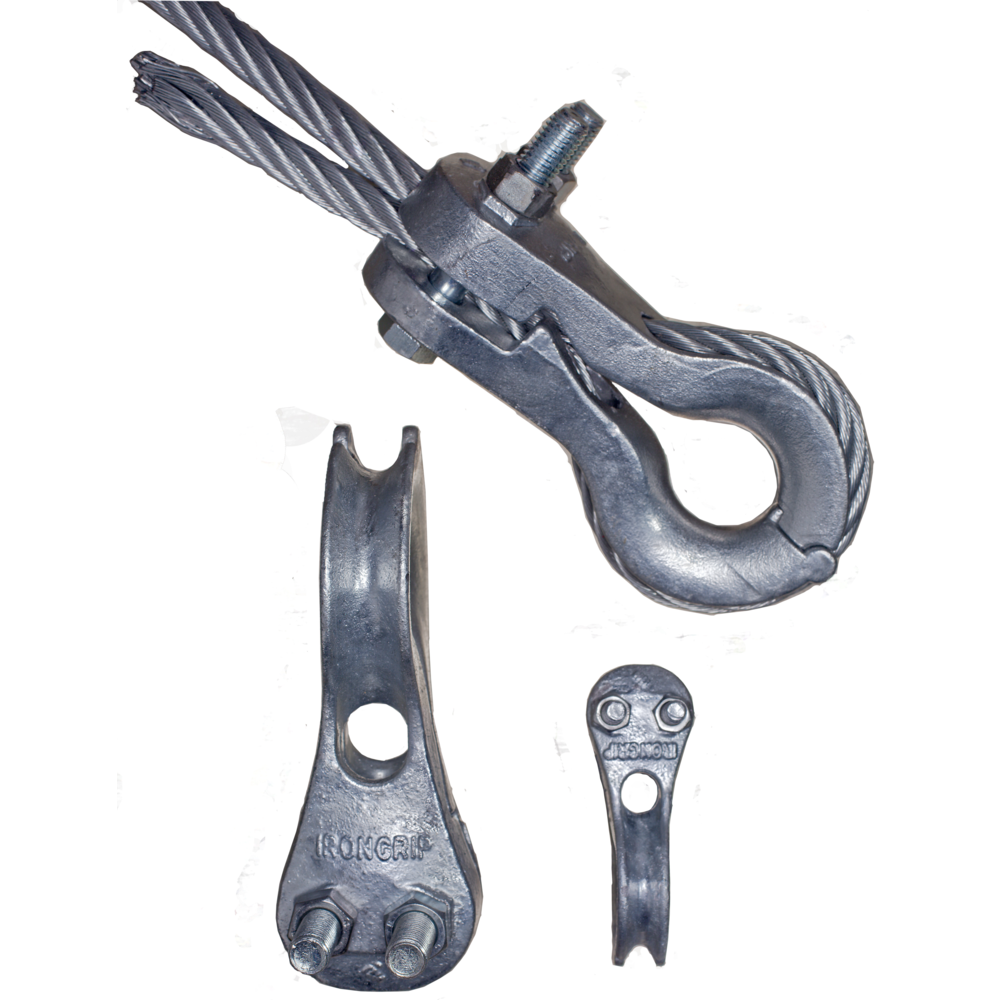

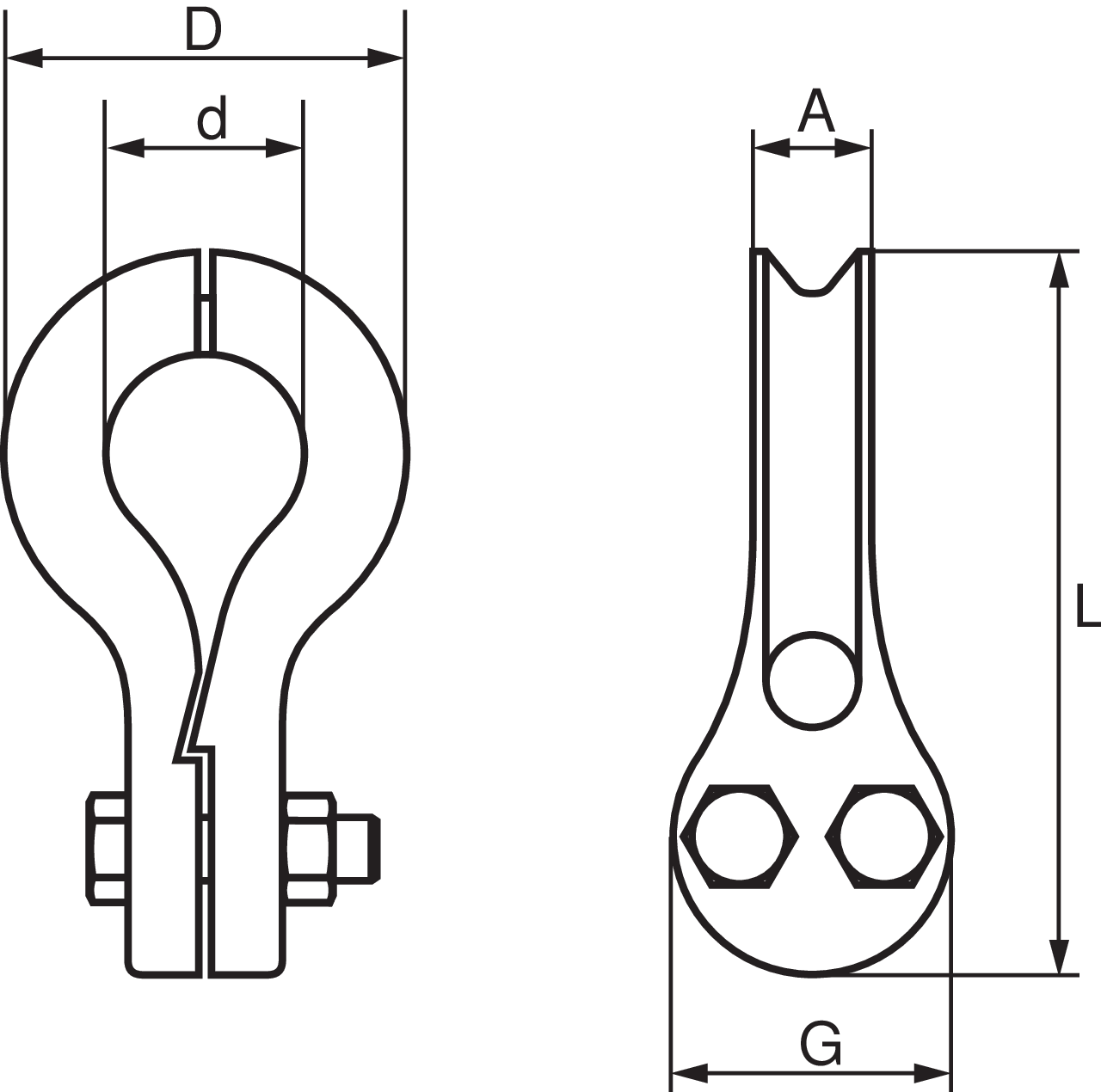

A combination of wire rope clamp and thimble, approved for application in elevators and hoists. Two part thimble and recessed bolts, for easy mounting.
Design: Cast steel GS-60. Bolts and nuts in grade 8.8.
- Finish: Hot dip galvanized.
- Note: Before tightening the nuts, be sure that the steel wire rope is tight in the thimble groove.
