General: Intended for general lifting purposes and on board ships. Provided with swivelling oval eye. SWL refers to working load limit (WLL) of the wire rope. (The concept SWL is only used on ships).
Design: Covering side plates with separate steel supports (except 400-E).  Key hole type locking. Bronze bushed sheaves of steel, except 125-E  which has a polyamid PA 6G sheave. Countersunk grease fitting in the shaft. The oval eye is swivelling and jointed attached to the cross head.

  • Material: : Structural steel, forged oval eyes and cross head of steel, sheave bushing of red metal.
  • Marking: : Type, WLL and max wire rope diameter.
  • Finish: : Grey painted, 400-E is blue painted.

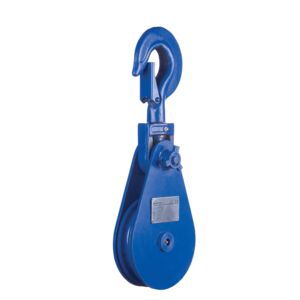

  • Note: The blocks can be manufactured with a hook instead of an eye. We also manufature loadblocks, guide pullies and pendant rope blocks and multiple sheave blocks.

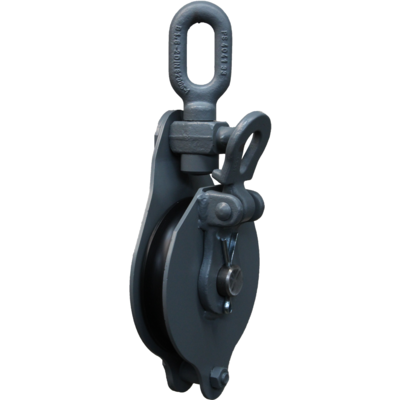

Snatchblock_with_eye
Select a row from the table below, then click the add to quote button

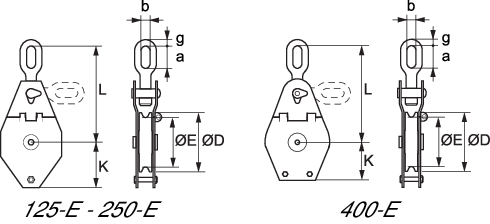

Part Code G
mm
SWL in rope tons D
mm
E
mm
K
mm
L
mm
A
mm
B
mm
16.15125E 18 0,5 125 105 110 210 60 34
16.15150E 18 1 150 125 115 235 58 26
16.15200E 23 1,5 200 170 155 325 72 32
16.15250E 28 2,5 250 210 190 390 94 40
16.15350E 39 5 350 300 270 475 125 54
16.15400E 55 10 406 342 215 720 170 75
Other dimensions and designs on request.
