Wire Rope Sheave 6800-B Bronze Bushed

General: The sheaves are intended to cranes and elevators where the standard specifications for the crane ropes are applied and for other installations where lenient service are desired. Relation between diameters are app. 20 (wire rope Ø x 20 = ØE), which answers to the demands on machine group 2m.
Design: 6806-B to 6810-B are turned, the larger dimensions are cold formed or rolled from steel which result in stabil design and low weight. Even and smooth marks which spare the wire rope. Welded bronze bushed nave which can easily be adapted to the customers wishes. Lubrication shall be made through the shaft.

  • Material: High-tensile construction steel, bush from red metal SS 5204-15.
  • Finish: 6806-B to 6810-B are yellow zincified, larger dimensions are painted.
6800_new[Yellow]_225mm_2
6800_new[Yellow]_225mm_2
6800_90_new_3_225mm

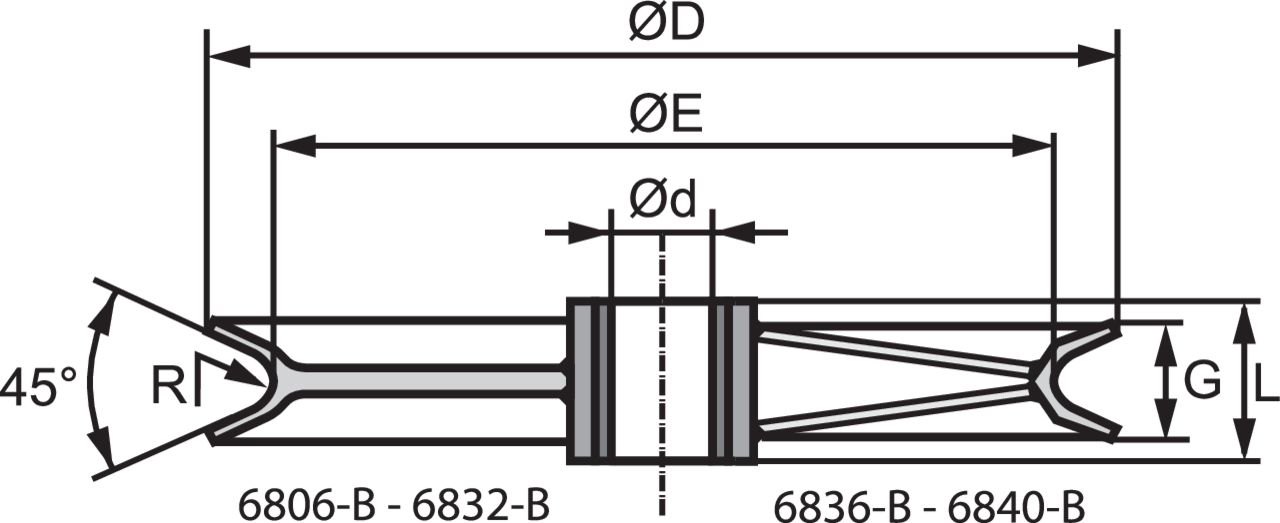

Select a row from the table below, then click the add to quote button
Part Code Code d H8 Wire Ø
mm		 D
mm		 E
mm		 G
mm		 L
mm		 R
mm		 Weight
kg		 CAD
10.354016563B 6806-B 15 5-6 155 125 24 30 3,2 1.4
10.354016564B 6808-B 20 7-8 190 160 26 40 4,3 2.2
10.354016565B 6810-B 30 9-10 235 200 30 45 5,3 3.5
10.35SR1250001B 6812-B 35 11-12 290 250 32 50 6,4 5.3
10.35SR1280001B 6814-B 45 13-14 325 280 40 60 7,5 7.8
10.35SR1315001B 6816-B 50 15-16 370 315 43 70 8,6 11
10.35SR1355001B 6818-B 60 17-18 415 355 48 75 9,7 14
10.35SR1400001B 6820-B 65 19-20 470 400 58 90 10,8 16
10.35SR1450001B 6822-B 75 21-22 525 450 65 100 12 26
10.35SR1500001B 6825-B 90 24-25 580 500 65 120 14 36
10.35SR1575001B 6828-B 100 26-28 660 575 70 120 15 58
10.35SR1630001B 6832-B 120 30-32 720 630 82 140 17 71
10.35SR1710001B 6836-B 140 34-36 810 710 90 160 19 89
10.35SR1800001B 6840-B 160 38-40 910 800 90 160 22,5 133
Other dimensions and designs on request.

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
Download
