Neo EP electropermanent lifting magnets are suitable for frequent and repeated workpiece handling and lifting – electrical control of the magnet requires no physical exertion, which is why it saves manpower and enhances work efficiency.

Neo EP electropermanent lifting magnets are a professional solution to frequent handling. It does not require much effort to install. You can easily connect it to the ordinary power supply using the supplied power cable. After electric activation, the load is held by permanent lifting magnets, without the need of subsequent power supply. Electric control with buttons allows the operator to activate the device without physical effort. Due to the optional remote control, this is also possible in locations with poor accessibility.

Neo EP can be controlled from the ground or from the crane cabin. The magnet strength control can be integrated as an optional function. This is convenient for lifting individual sheet metals.


  • Control of the magnet without any physical exertion. Thanks to the optional remote control, it is also possible to control it, e.g. from a crane cabin
  • High-quality, stainless steel recessed buttons
  • Quick activation of the magnet with an electrical impulse in 0.8 seconds
  • Magnetic module in a monoblock design
  • Easy connection to the electrical power supply
  • Electrical connection is only necessary for switching the magnet ON and OFF Suitable for continuous operation; it does not need a backup battery. Selectable voltage 230/400V (DC)
  • Stable housing with a forged lifting eye
  • Optional integration into automated operation
  • Material: High-quality, recessed stainless steel button.
  • Marking: According to standard
  • Temperature range: max. 80 °C
  • Standard: EN 13155
  • Safety factor: 3:1

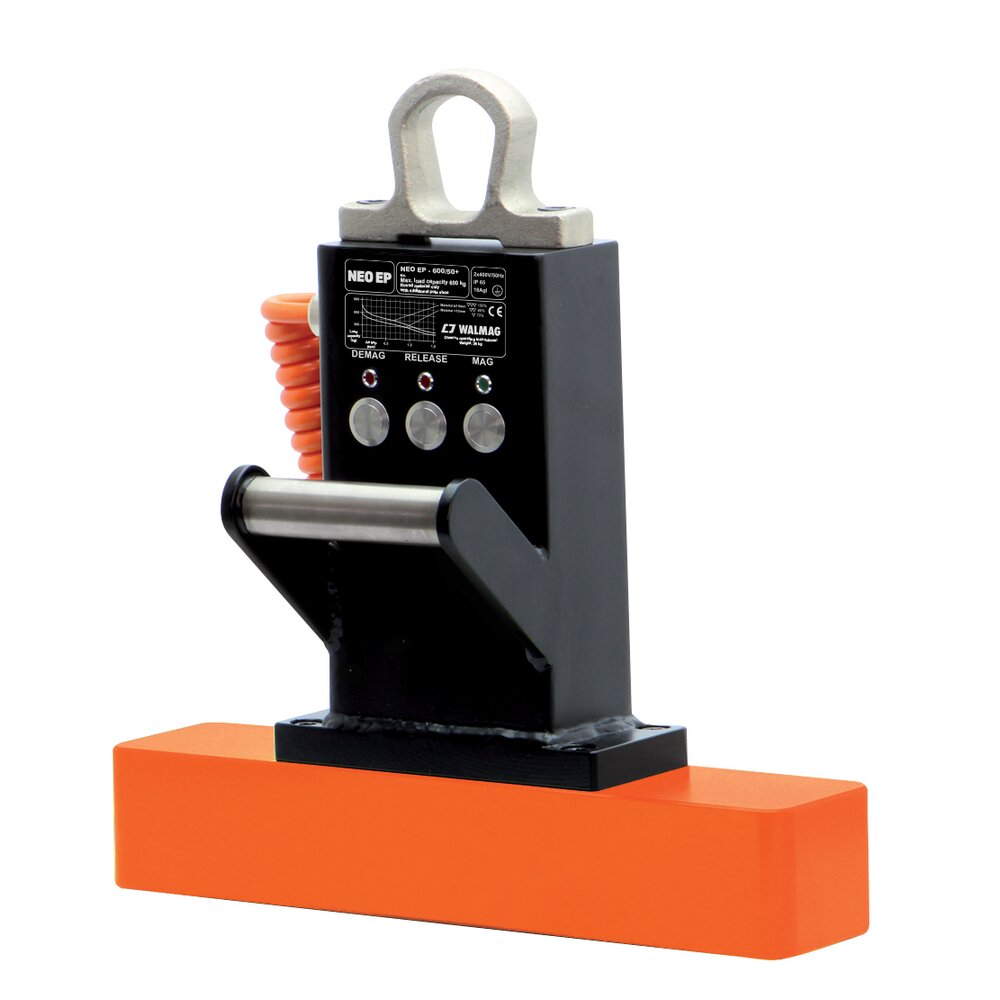

Product Picture 1
Select a row from the table below, then click the add to quote button
Part Code Code WLL
Number of poles Clamping surface
Pole structure Breakaway

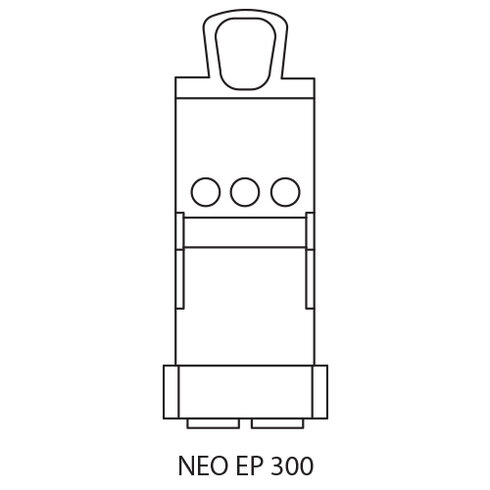

16.45LH30EPNEZ0001 NEO EP 300 0,3 4 116x166 50 14 164 164 420 23

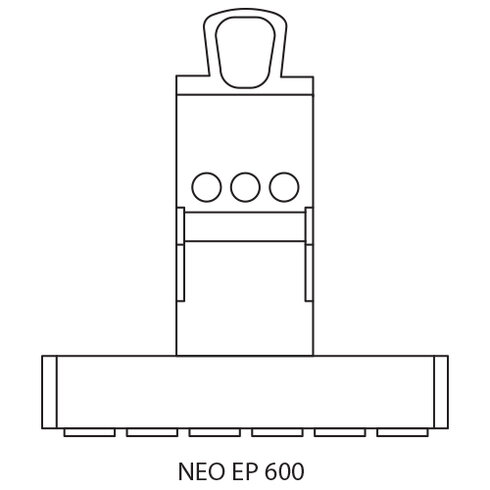

16.45LH30EPNEZ0002 NEO EP 600 0,6 6 372x52 50 22 95 420 450 44

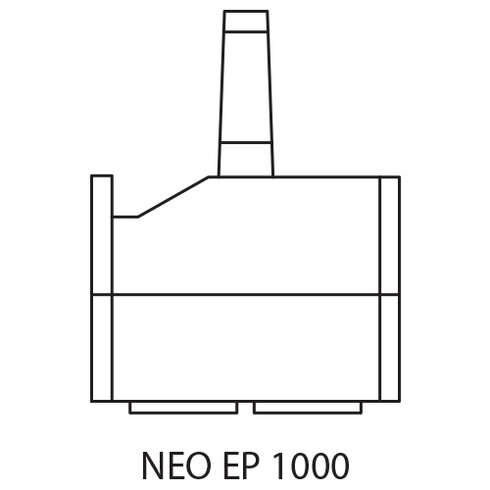

16.45LH30EPNEZ0003 NEO EP 1000 1 4 172x172 80 36 228 228 295 77

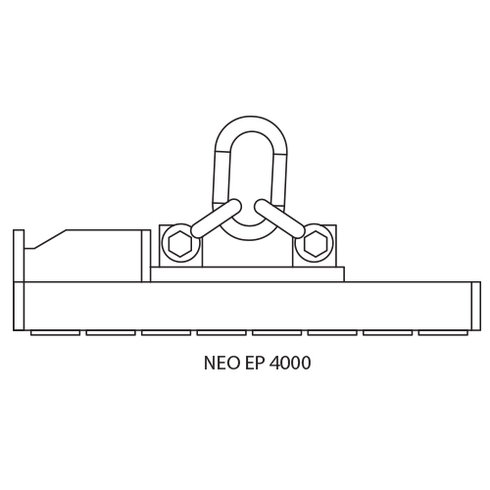

16.45LH30EPNEZ0004 NEO EP 4000 4 16 724x172 80 144 228 783 295 132
