Standard: DIN 5299 C.

Finish: Galvanized.
Warning: Not for lifting.

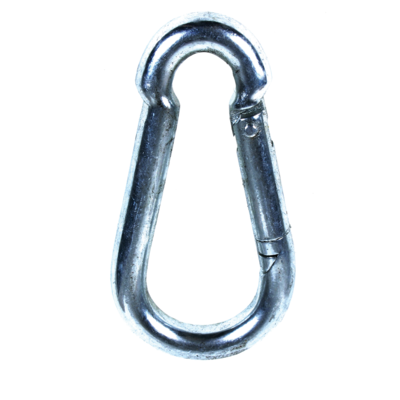

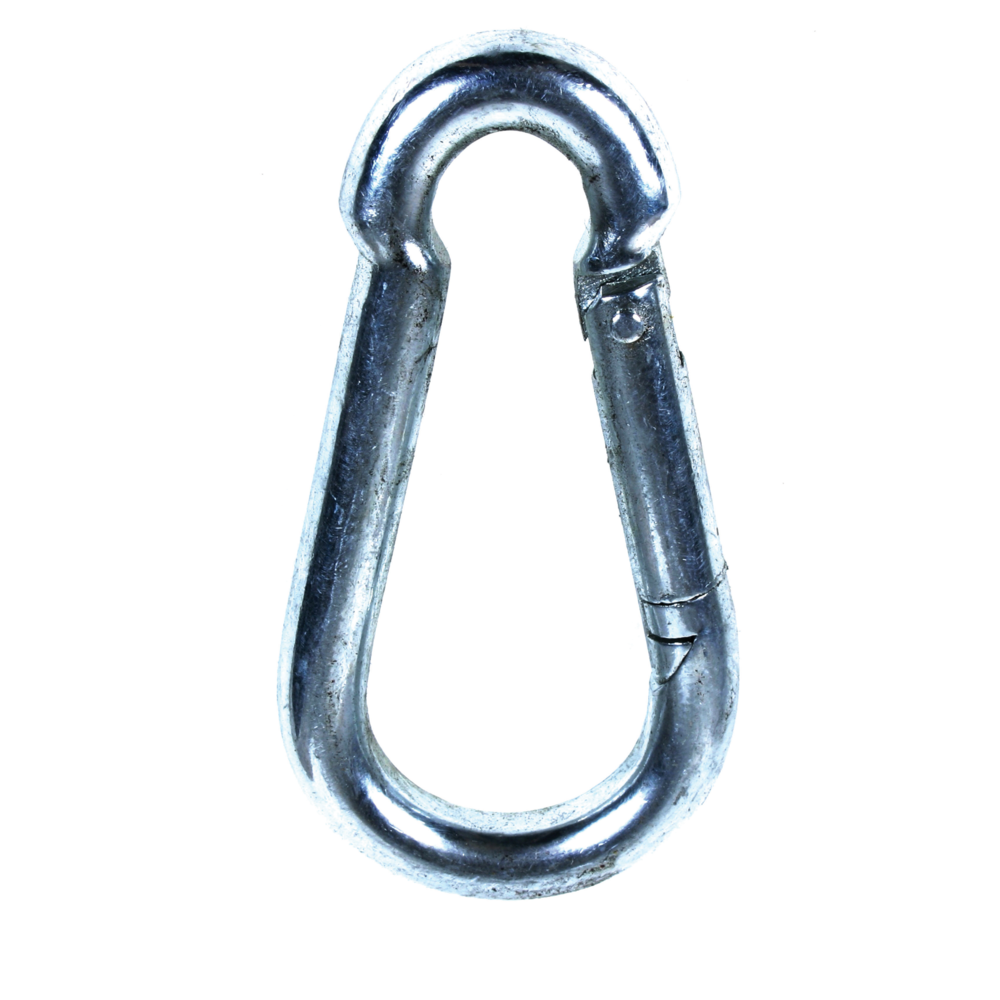

Snap Hook DIN 5299 C

Select a row from the table below, then click the add to quote button

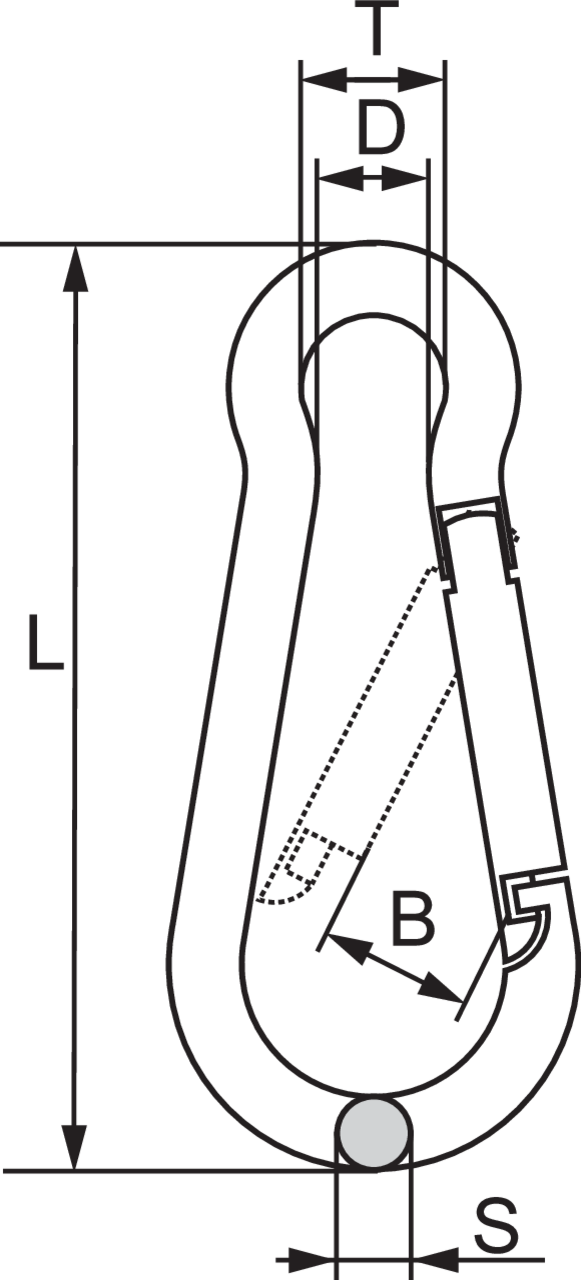

Part Code	MBL kg	B mm	D mm	L mm	S mm	T mm	Weight kg/100pc
11.565299C04	70	7	6	40	4	7	1.2
11.565299C05	100	8	5	50	5	7	1.7
11.565299C06	120	8	6	60	6	8	2.8
11.565299C07	180	8	7	70	7	10	4.5
11.565299C08	230	9	9	80	8	12	6.7
11.565299C09	250	10	9	90	9	12	9.5
11.565299C10	350	11	11	100	10	15	13
11.565299C11	400	13	12	120	11	16	19

Other dimensions, performance and material on request.

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
