Protection of steel wire rope loops with hole for a bolt.

Design: Casted.

  • Marking: According to standard
  • Standard: DIN 3091
3408_e_225mm_2

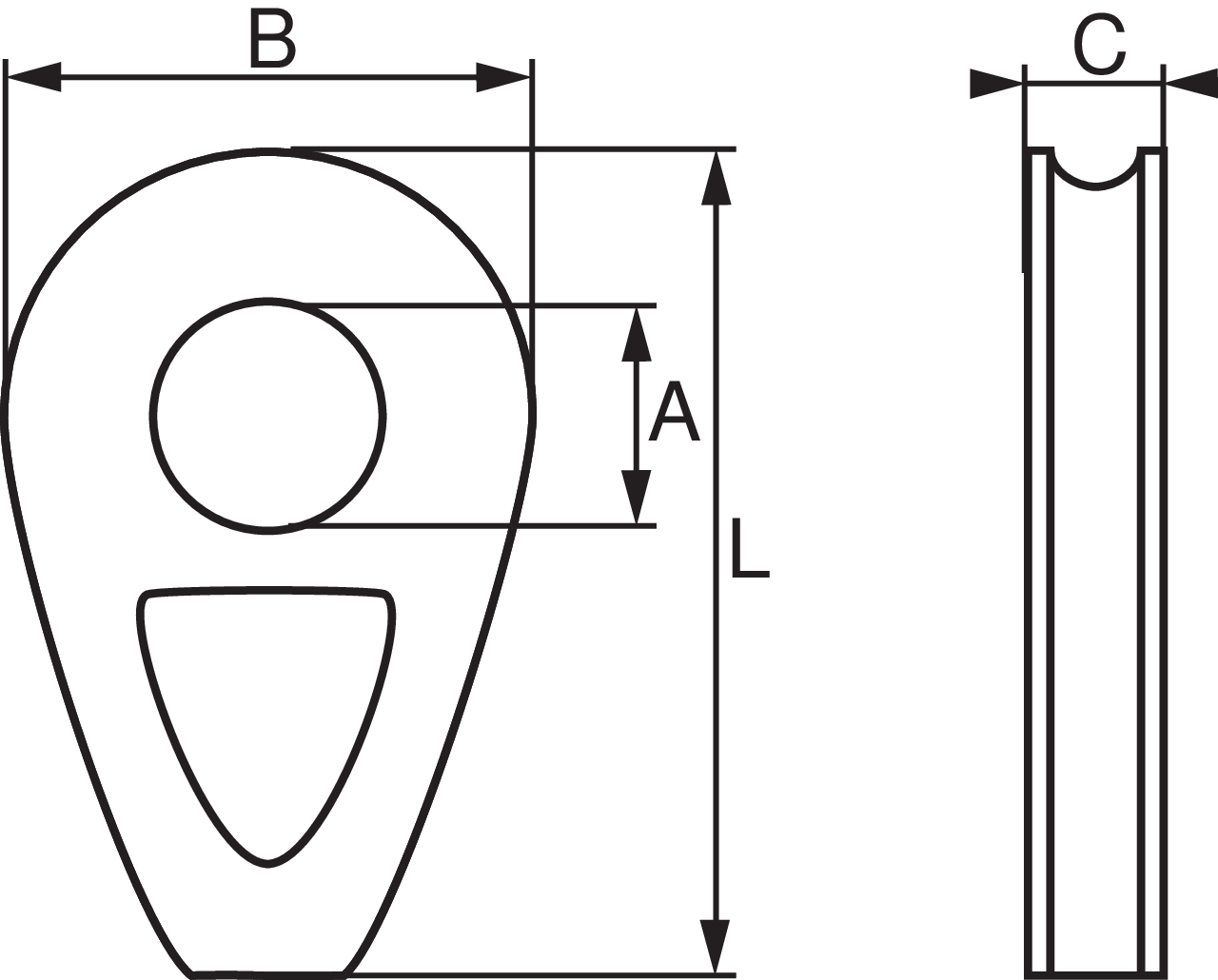

3408m_e_225mm
Select a row from the table below, then click the add to quote button
Part Code Rope diameter range
mm
A Not worked A Min worked A Max worked B
mm
C
mm
L
mm
Weight
kg/100pc
CAD
10.27309109 8 14 17 20 40 15 66 18
10.27309111 10 18 21 25 50 17,5 82 32
10.27309113 12 21 24 30 60 20 98 52
10.27309116 14 25 29 35 70 23,5 114 80
10.27309118 16 28 32 40 80 26 130 90
10.27309120 18 31 35 45 90 28,5 145 121
10.27309122 20 35 40 50 100 31 161 161
10.27309124 22 38 43 55 110 33,5 177 211
10.27309126 24 41 46 60 120 36 193 271
10.27309129 26 44 49 65 130 39,5 209 355
10.27309131 28 47 52 70 140 42 224 420
10.27309135 32 53 58 80 160 47 256 630
10.27309140 36 59 65 90 180 53 288 884
10.27309144 40 65 71 100 200 58 320 1,100
10.27309148 44 70 76 110 220 63 352 1,500
10.27309153 48 76 82 120 240 69 384 2,000
