Ropeblock

General: Intended for general lifting purposes. Can also be used for pulling. WLL in table applies for load on head fitting/hook.
Design: Snatch block type with covering side plates. Provided with swiveling hook with latch. Bronze bushed sheave in 2-4 tons blocks and roller bearings in lager sizes. Grease fitting in the shaft and cross head.





  • Material: Steel.
  • Marking: Type, WLL and wire rope diameter.
  • Finish: Blue painted.
  • Safety factor: 4:1.
Snatchblock_hook
Snatch_Block_S_Shackle_m
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
Diameter
mm
D
mm
E
mm
G
mm
K
mm
L
mm
Weight
kg
CAD

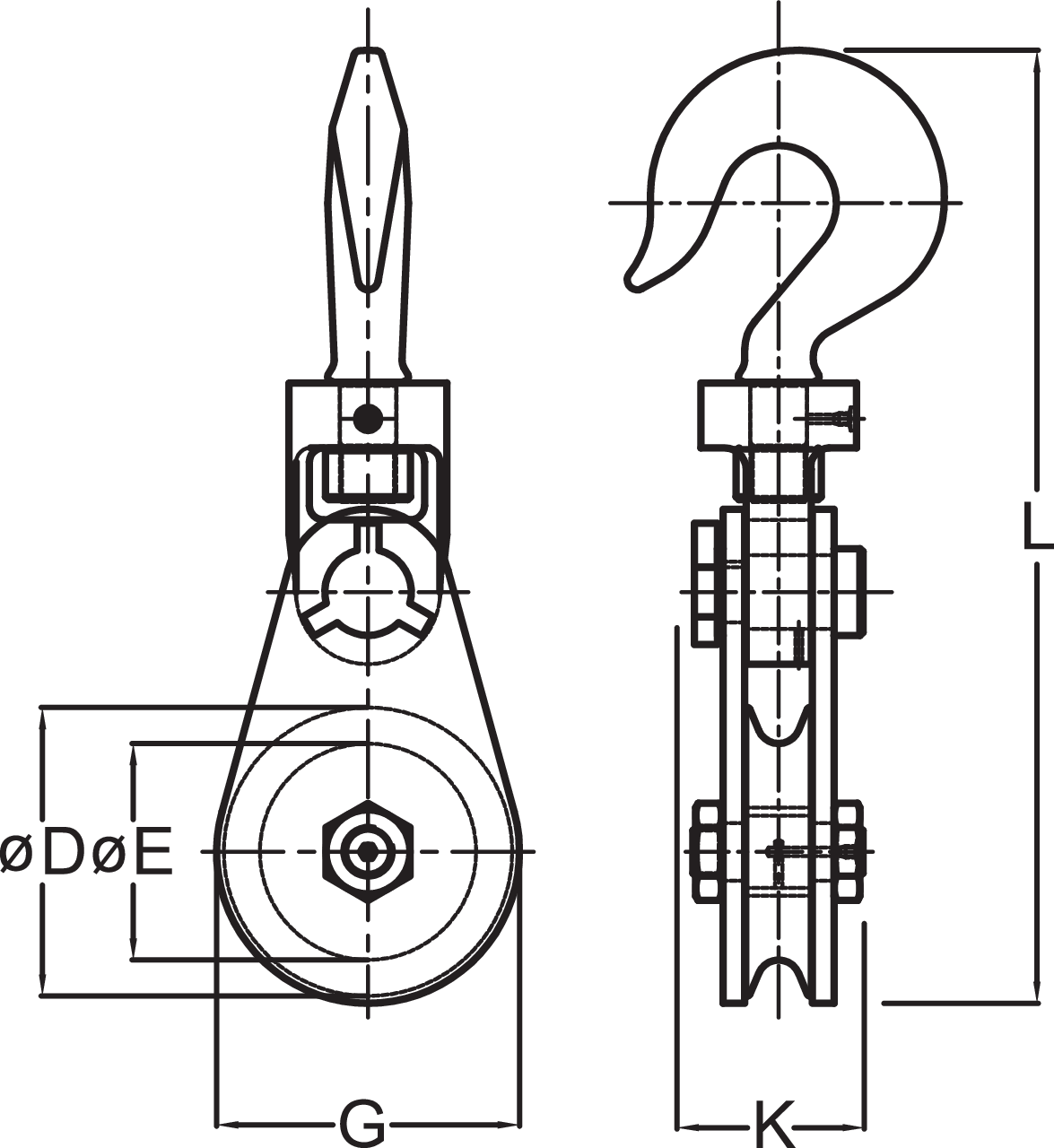

16.15121030214 2 7-9 75 60 82 70 292 4
16.15121040414 4 10-12 115 90 120 70 358 6
16.15121060414 4 16-19 150 120 160 70 412 14
16.15121080814 8 19-22 200 165 210 93 549 16
16.15121101014 10 24-26 250 205 260 115 695 38
16.15121121214 12 24-26 300 255 310 133 797 56
16.15121081514 15 22-24 200 160 210 102 672 24
16.15121121514 15 24-26 300 255 310 133 797 65
16.15121142214 22 28-32 355 300 365 140 960 90
16.15121123014 30 28-30 300 245 310 193 993 125
16.15121163014 30 32-35 400 300 415 155 1,085 135
16.15121143514 35 32-35 350 280 365 193 1,028 130
16.15121245014 50 46-50 600 500 625 275 1,495 418

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
Download
