Talurit

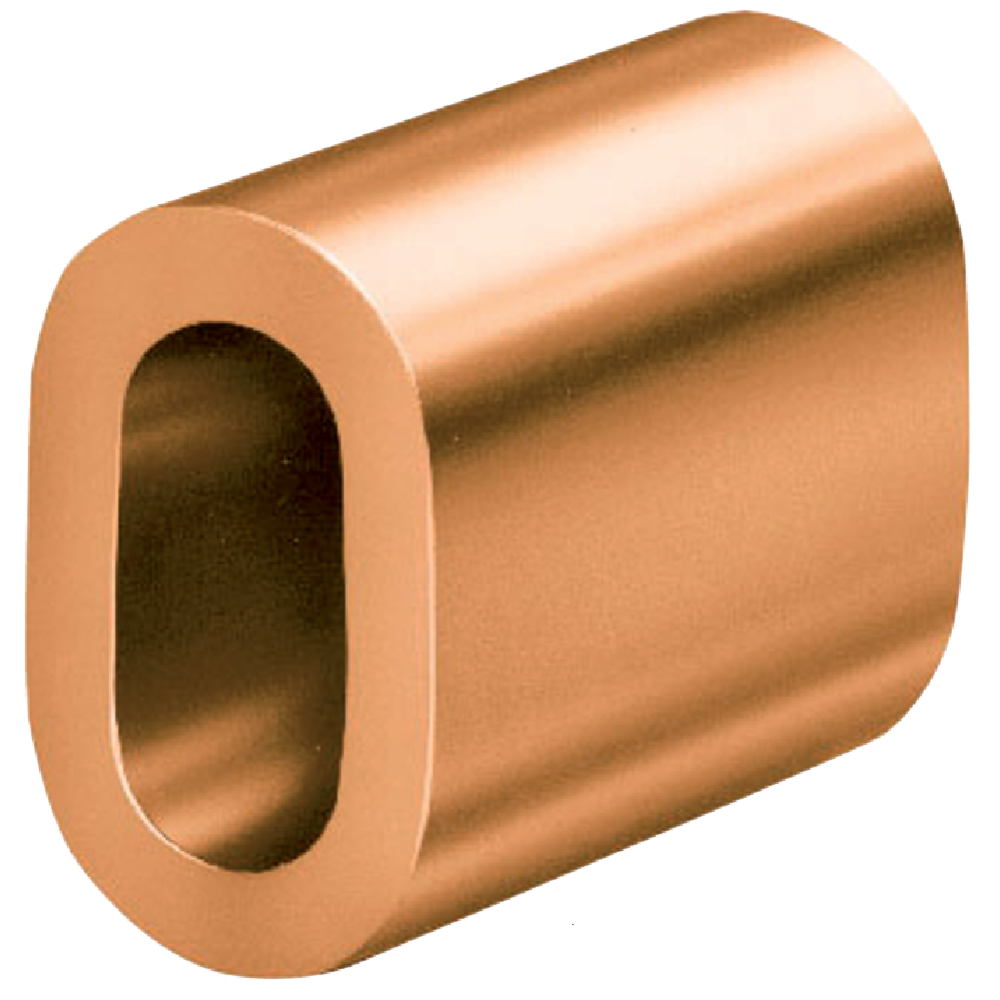

The copper ferrule (TCU) is intended for stainless steel wire rope to avoid galvanic corrosion. The pressing of TCU ferrules requires approx 25% higher pressure than the corresponding T ferrule of aluminium alloy.

Note:
We do not guarantee the strength of slings for lifting activities made of Copper turnback ferrules. A termination performed according to our instructions will normally withstand a tensile strength of 90% of minimum breaking load (MBL) of the wire rope. Verifying tests must be done in order to secure the strength of the termination.

These ferrules have been validated according to TALURIT™ splicing system, which is within the framework of EN 13411-3. The copper material is not accepted in this standard.

  • Material: Copper (almost 99,9%)
  • Marking: According to standard
  • Standard: EN 13411-3
  • Note: See the manufacturer's product data sheet below for guidance on dimension selection.
TCU
Select a row from the table below, then click the add to quote button
Part Code Ferrule size
mm
Length
mm
10.02TCU01 1 6,5
10.02TCU015 1,5 8
10.02TCU02 2 9
10.02TCU025 2,5 12
10.02TCU03 3 14
10.02TCU035 3,5 16
10.02TCU04 4 18
10.02TCU045 4,5 20
10.02TCU05 5 23
10.02TCU06 6 27
10.02TCU065 6,5 29
10.02TCU07 7 32
10.02TCU08 8 36
10.02TCU09 9 40
10.02TCU10 10 45
10.02TCU11 11 50
10.02TCU12 12 54
10.02TCU13 13 59
10.02TCU14 14 63
10.02TCU16 16 72
10.02TCU18 18 81
10.02TCU20 20 90
10.02TCU22 22 99
10.02TCU24 24 108
10.02TCU26 26 117
10.02TCU28 28 126
10.02TCU30 30 135

Diameter after pressing, see instruction.
Length is after pressing.
