General: A combination of wire rope clamp and thimble, approved for application in elevators and hoists. Two part thimble and recessed bolts, for easy mounting.
Design: Cast steel GS-60. Bolts and nuts in grade 8.8.



  • Finish: Hot dip galvanized.
  • Note: : Before tightening the nuts, be sure that the steel wire rope is tight in the thimble groove.

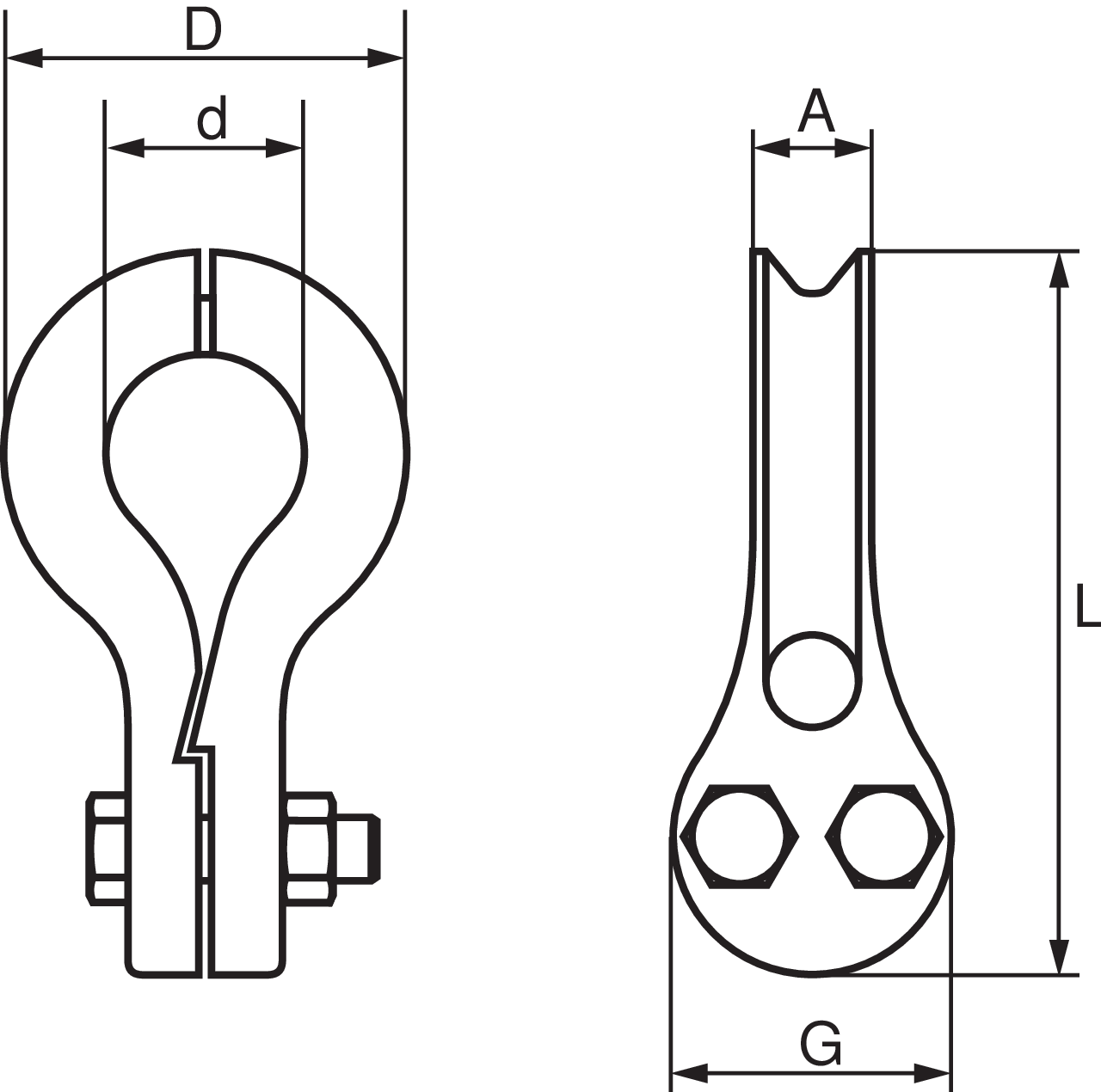

3503m_e_225mm
Select a row from the table below, then click the add to quote button
Part Code Diameter
mm
Extra clamp thimble for Lifting 1960 N/mm² Extra clamp thimble for Lifting 1770 N/mm² A
mm
D
mm
G
mm
L
mm
CAD
10.29KK0600 5-6 12 36 26 74
10.29KK0900 7-9,5 18 54 40 104
10.29KK1200 10-12,5 1 25 74 58 144
10.29KK1600 13-16,5 1 28 95 72 190
10.29KKM20* 17-20 1 1 37 166 80 244
*This size is only available in type KK-M

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
