Standard: SS-EN 13411-7

When fitting the rope to the socket as much slack as possible should be removed from the system in order to maximise the available eye bolt adjustment. The load should then be applied to the assembly and the wedge observed to seat correctly in the socket body.A single DIN 1142 wire rope grip should then be fitted across the two parts of rope near to the socket body. This, along with the split pin fitted into the wedge, ensures that the wedge cannot become displaced in a slack rope condition.

  • Features: High Quality Lift Suspension Wedge Socket
  • Material: Galvanised Steel
  • Marking: According to standard, Size and CE mark
  • Finish: Galvanised
  • Standard: EN 13411-7
  • Safety factor: 10:1
3050_grey
15315_1m_e_225mm
Select a row from the table below, then click the add to quote button

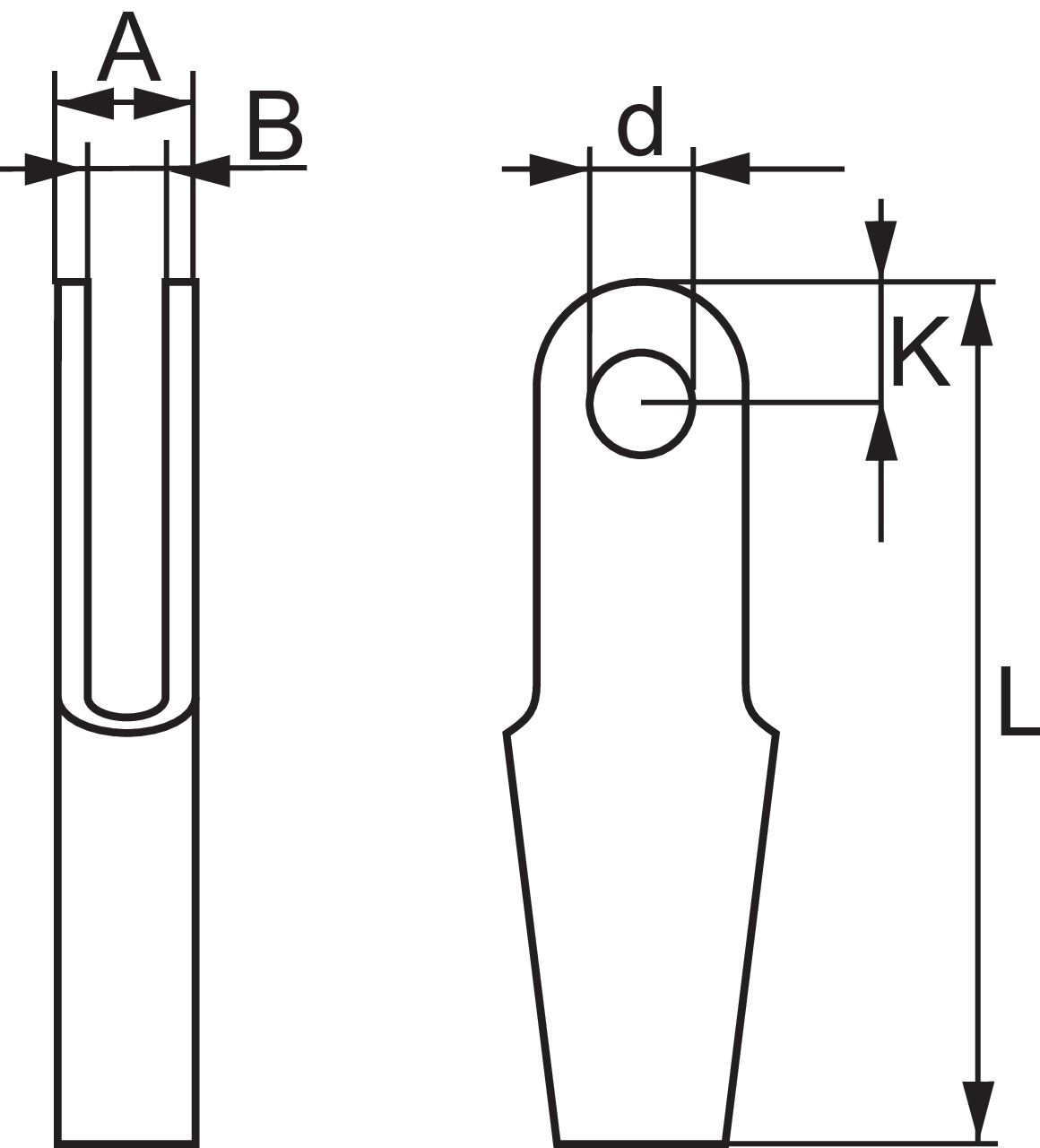

Part Code Code Wire Ø (mm) A
mm
B
mm
K
mm
L
mm
D
mm
Weight
kg
CAD
10.2113411-7.0608 3050 6-8 22 14 20 150 12 0.5
10.2113411-7.0911 3051 9-11 29 17 26 190 16 1.1
10.2113411-7.1214 3052 12-14 38 22 32 230 18 2.1
10.2113411-7.1517 3053 15-17 45 25 36 260 22 3.5
10.2113411-7.1820 3054 18-20 51 27 40 300 25 5.5

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
Download
