Terrier

General:
Lifting clamp with adjustable extra large jaw opening for horizontal lifting, handling and transporting of stacks, packages and single steel plates. Terrier THSK lifting clamps must always be used in pairs (or multiple pairs).The adjustable jaw offers wide variety of openings available from 3 to 420 mm.

Features:

  • Easy adjustable jaw opening
  • Quick and easy placing and removing of the clamp
  • Lightweight design for easy handling
  • Tough quality heavy duty welded body
  • Marking: Type, serial number, WLL, Jaw opening and CE marking.
  • Temperature range: - 40°C to +100°C.
  • Finish: Yellow painted.
  • Standard: EN 13155
  • Note: The lifting clamps are suitable for lifting and transporting of steel plates with a maximum hardness of 37 HRC (345 HB, 1166 N/mm2).
  • Warning: Hardness level of the material surface may not exceed 37 HrC (345 Hb, 1166 N/mm2)
  • Safety factor: 5:1
Select a row from the table below, then click the add to quote button

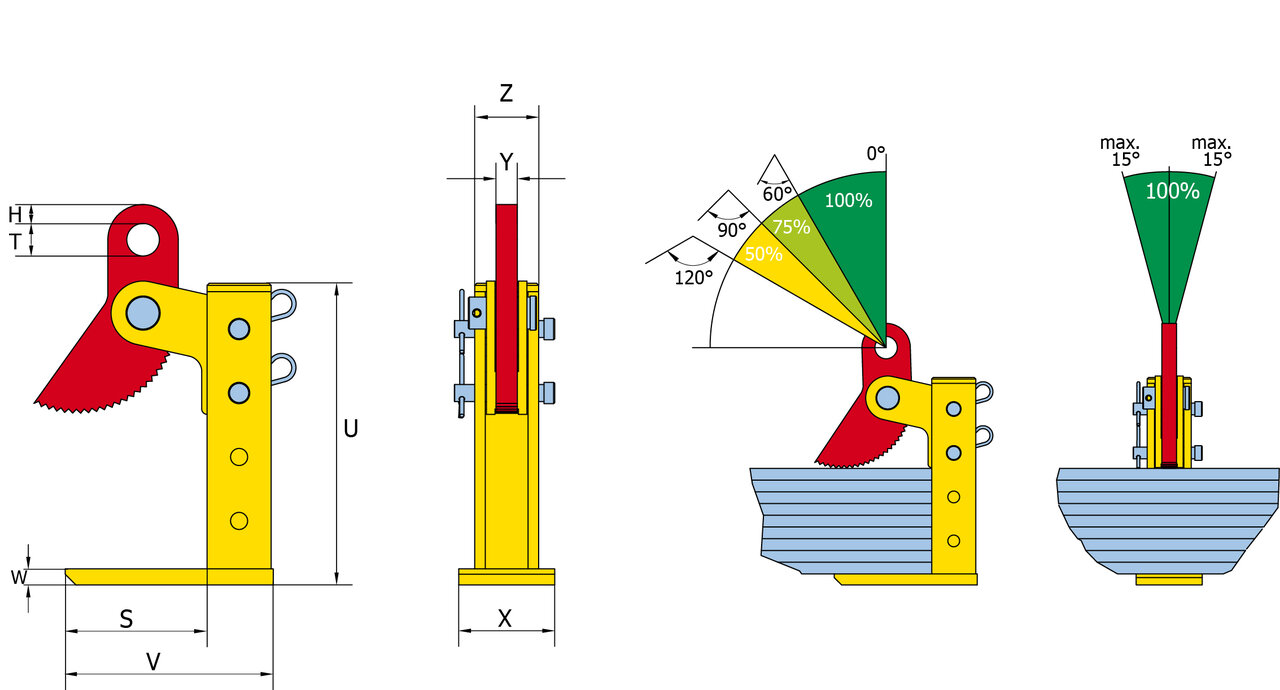

Part Code Code WLL ton/pair Jaw opening (mm) V (mm) S (mm) W (mm) T (mm) H (mm) U (mm) X (mm) Y (mm) Z (mm) Weight
kg
CAD
16.01815180 1.5 THSK/180 1.5 3-180 201 135 15 30,5 18 289 90 20 60 9.5
16.01815300 1.5 THSK/300 1.5 3-300 201 135 15 30,5 18 409 90 20 60 11
16.01830180 3 THSK/180 3 3-180 241 165 20 30,5 18 296 105 20 69 13
16.01845180 4.5 THSK/180 4.5 3-180 241 165 20 30,5 18 296 105 20 69 13
16.01830300 3 THSK/300 3 3-300 241 165 20 30,5 18 416 105 20 69 15
16.01845420 4.5 THSK/420 4.5 3-420 241 165 20 30,5 18 536 105 20 69 17
16.01860180 6 THSK/180 6 3-180 256 160 25 30,5 18 304 120 20 75 18
16.01890180 9 THSK/180 9 3-180 256 160 25 30,5 18 304 120 20 75 18
16.01860420 6 THSK/420 6 3-420 256 160 25 30,5 18 544 120 20 75 24
16.01890420 9 THSK/420 9 3-420 256 160 25 30,5 18 544 120 20 75 24
