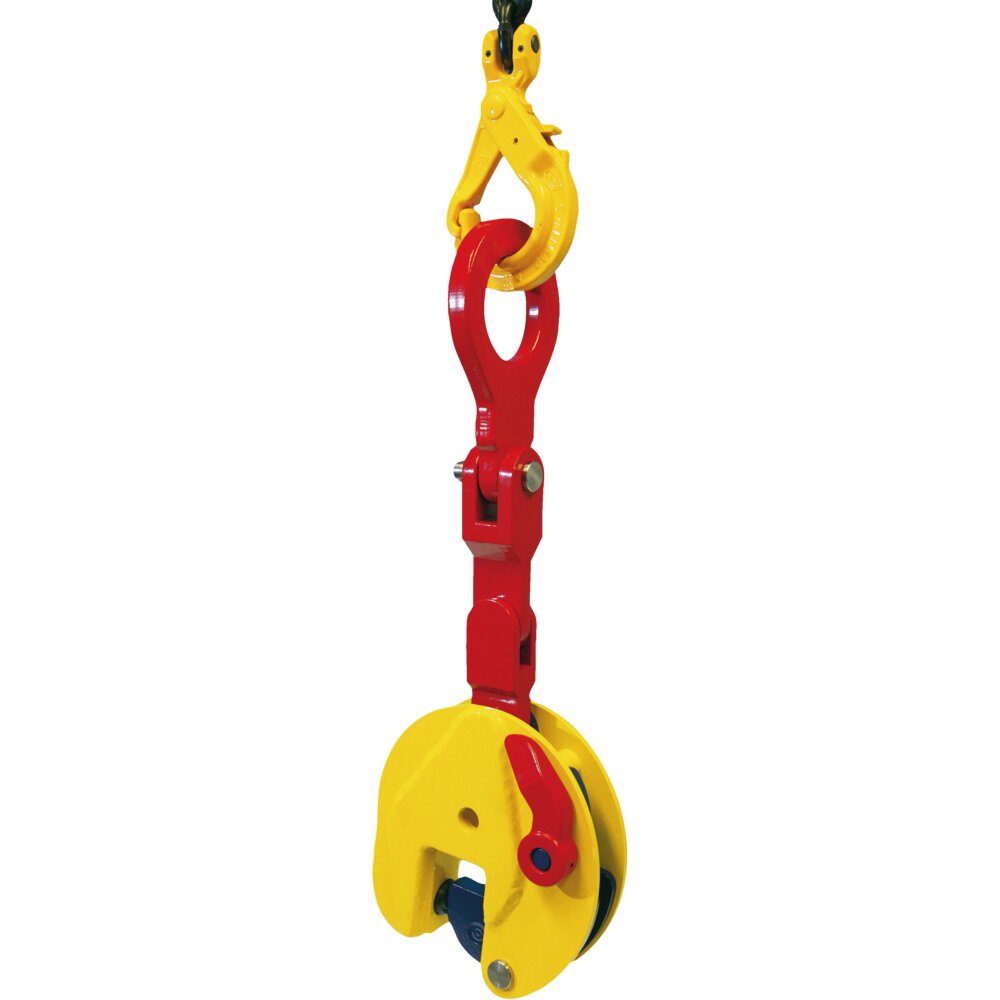

Vertical Lifting Clamp TSMP/TSEMP/STSMP

Terrier

Clamp for vertical lifting, transporting and turning of all steel plates and structures. The clamp is equiped with a three way articulated linkage arrangement for flexible lifting and extended reach. Models TSEMP / STSMP types are supplied with enlarged jaw opening.

Features:

  • With three way articulated linkage arrangement lifting shackle
  • Enjoy all the benefits of the TS clamps with extra reach and lifting flexibility
  • When attached to a fixed load bearing arm (e .g . spreader bar) the clamp will retain its flexibility and no chain is needed
  • Due to length of the three way linkage arrangement the clamp can be lowered further between standing plates or structures
  • Always equipped with a safety mechanism, ensuring the clamp does not slip when lifting force is applied and when load is being lowered
  • Clamp is locked in closed as well as open position
  • Lightweight design for easy handling
  • Tough quality heavy duty welded shell body
  • Maintenance-friendly, easy to exchange parts which are available upon request
  • Marking: According to standard, CE-marked, Type, serial number, WLL, Jaw opening.
  • Temperature range: - 40°C to +100°C.
  • Standard: EN 13155
  • Note: Hardness level of the material surface may not exceed 37 HRC (345 HB, 1166 N/mm2).
  • Warning: Min. load is 10% of max. WLL.
