Terrier

For horizontal lifting and transporting of steel plates and other non-deflecting materials. FHX / FHSX lifting clamps only to be used and sold in pairs (or multiple pairs).
Model FHX : Standard clamp
Model FHSX : Clamp with enlarged jaw opening.

Features:

  • Compact design and high lifting capacity
  • Lightweight design for easy handling
  • Tough quality heavy duty welded body
  • Marking: According to standard, Type, serial number, WLL, Jaw opening and CE marking.
  • Temperature range: - 40°C to +100°C.
  • Standard: EN 13155
  • Note: Must always be used in pairs (or multiple pairs)
  • Warning: Hardness level of the material surface may not exceed 37 HrC (345 Hb, 1166 N/mm2)
Select a row from the table below, then click the add to quote button

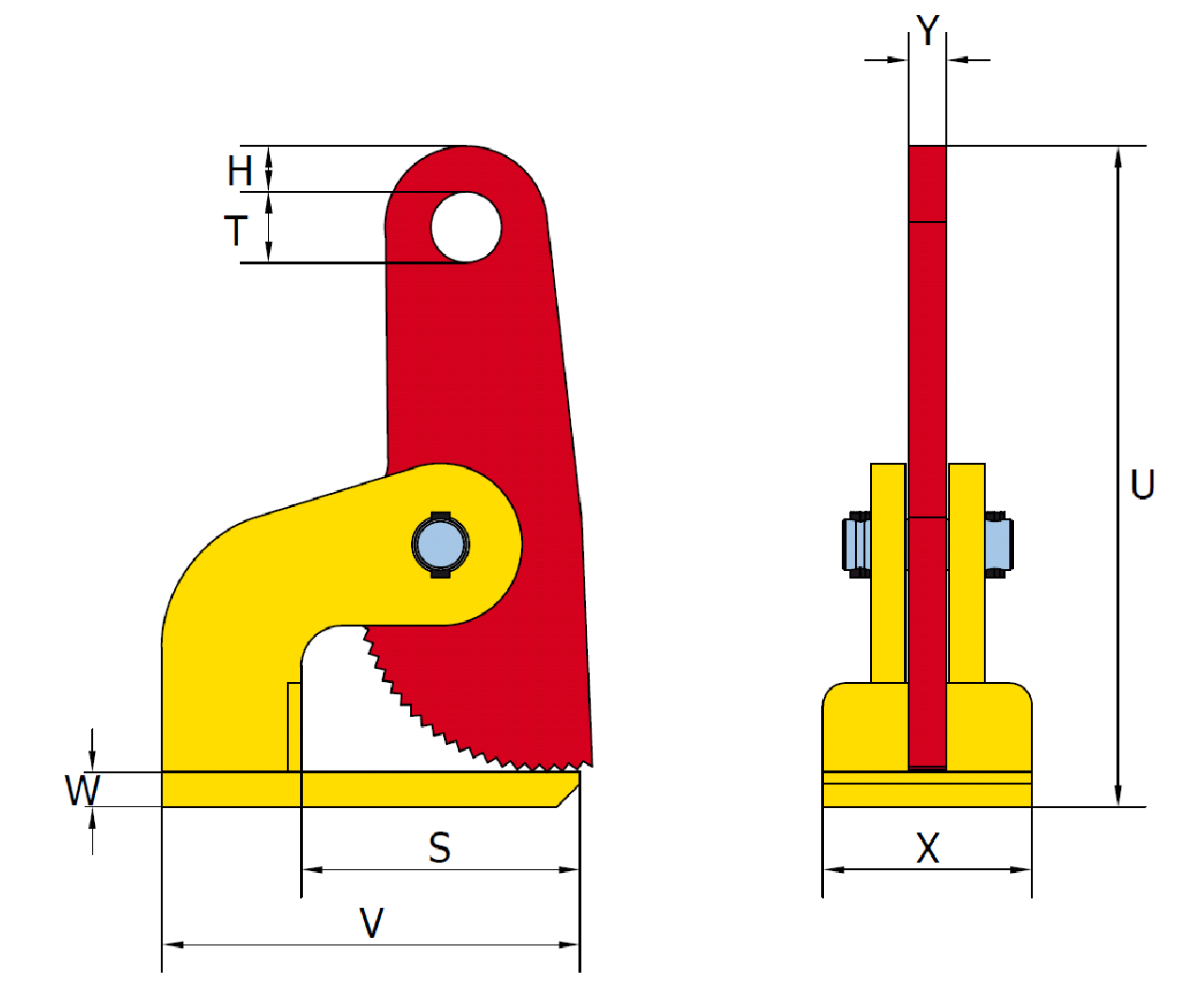

Part Code Code WLL ton/pair Jaw opening
mm
V
mm
S
mm
W
mm
T
mm
H
mm
X
mm
U
mm
Y
mm
Weight
kg
CAD
16.01953100 1 FHX 1 0-35 140 99 10 25 11.5 65 188 15 2.6
16.01954010 10 FHSX 10 0-100 225 135 35 30.5 19.5 120 428 30 22
16.01953010 10 FHX 10 0-60 225 135 35 30.5 19.5 120 336 30 19
16.01954012 12 FHSX 12 0-100 225 135 35 30.5 19.5 120 428 30 22
16.01953012 12 FHX 12 0-60 225 135 35 30.5 19.5 120 336 30 19
16.01853820 15 FHSX 15 0-150 350 240 35 45 27.5 140 665 35 53
16.01953015 15 FHX 15 0-60 262 147 35 43 21.5 160 344 35 30
16.01954200 2 FHSX 2 0-60 180 120 15 30.5 19.5 90 383 15 9.2
16.01953200 2 FHX 2 0-60 180 118 15 30.5 19.5 90 287 16 7
16.01953025 25 FHX 25 0-60 262 147 40 43 21.5 175 349 35 33
16.01954300 3 FHSX 3 0-100 180 120 20 30.5 19.5 90 387 15 10
16.01953300 3 FHX 3 0-60 180 118 20 30.5 19.5 90 291 16 8
16.01954400 4 FHSX 4 0-100 220 145 25 30.5 19.5 105 414 20 15
16.01953400 4 FHX 4 0-60 220 145 25 30.5 19.5 105 304 20 13
16.01954600 6 FHSX 6 0-100 220 145 25 30.5 19.5 120 414 20 16.5
16.01953600 6 FHX 6 0-60 220 145 25 30.5 19.5 110 307 20 14
16.01954800 8 FHSX 8 0-100 225 135 35 30.5 19.5 120 428 30 21
16.01953800 8 FHX 8 0-60 225 135 35 30.5 19.5 120 336 30 19

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
Download
